Wastewater/Activity/PacpInspection/1.0Feb 2, 2018, 11:29 AM
21 0945A_21 0945_02022018_033540.mp4
- Date
- 02/02/2018
- W/O
- 684706
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00760
- PipeID
- P16039
- Time
- 3:29 AM
- Certificate
- U-0817-07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4863
- Sewer Name
- 21 CLAREMONT OUTFALL TRUNK
- City
- CLAREMONT, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_684706_TV21028_FEB2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 21 0945A
- Downstream MH
- 21 0945
- Dir. of Survey
- Downstream
- Length Surveyed
- 87.4 ft.
- Total Length
- 87.4 ft.
- Structural Index
- 3
- Structural Quick
- 4133
- Structural Rating
- 13
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (4)

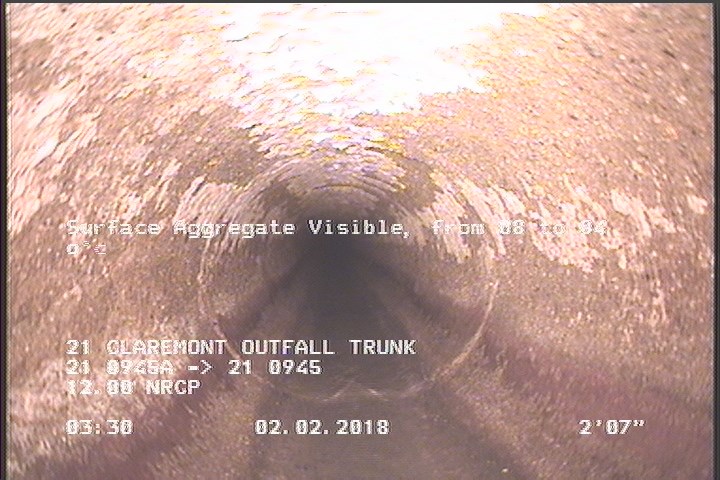

2.6 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

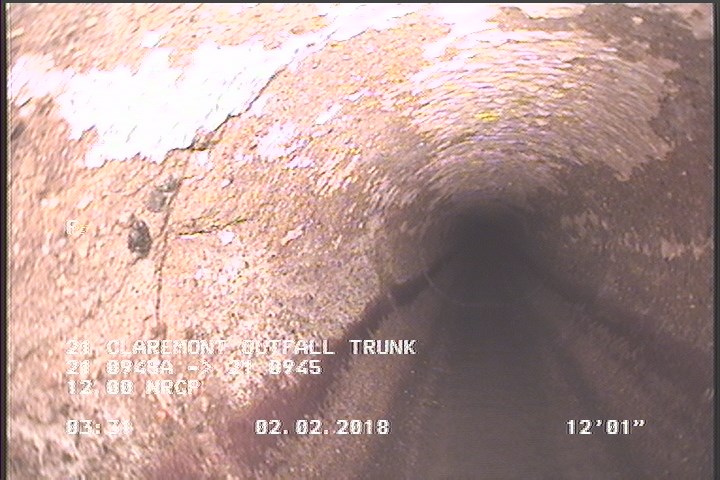

12.1 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

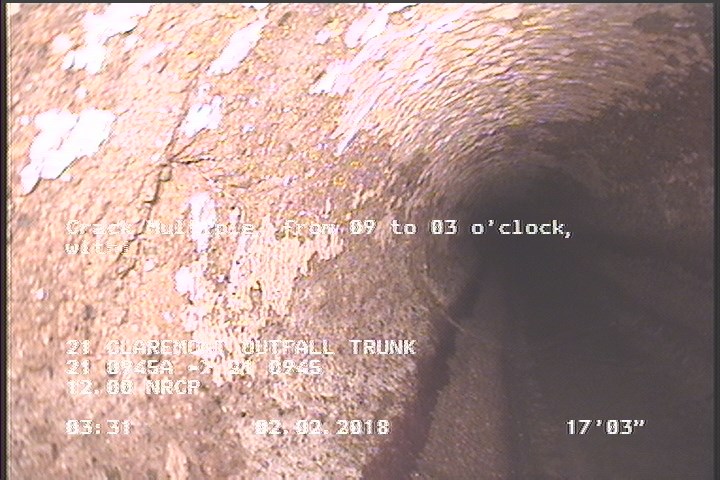

17.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

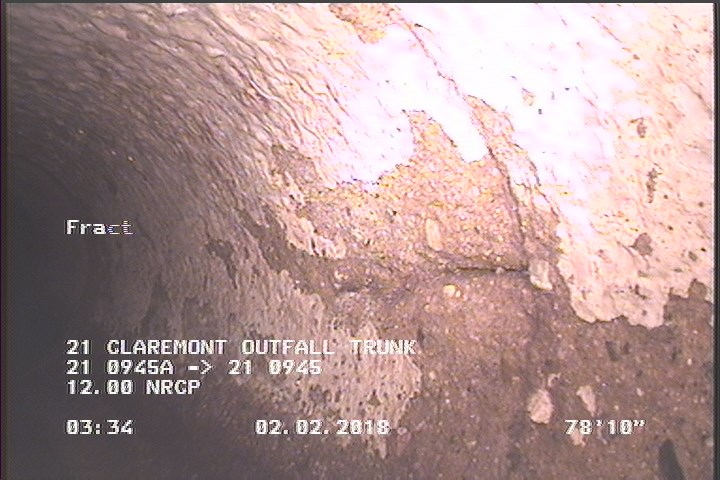

78.8 ft. - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 17.3 | CM | — |
| 2.6 | MGO | MAG COAT |
| 83.8 | SAV | — |
| 82.6 | CM | — |
| 87.4 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 87.4 | AMH | 21 0945 |
| 2.6 | SAV | — |
| 78.8 | FL | — |
| 26.3 | TB | — |
| 12.1 | FM | — |
| 0 | AMH | 21 0945A |
Properties (4)
- additional_info
- SC346888
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-02-02T03:29:20-08:00
