Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 6, 2018, 10:42 AM

  • 21 1120_21 0935_06022018_025700.mp4

Date
02/06/2018
W/O
684706
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00760
PipeID
P16024
Time
2:42 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5309
Sewer Name
21 CLAREMONT OUTFALL TRUNK
City
CLAREMONT, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
10
Purpose
Routine Assessment
Project
WO_684706_TV21028_FEB2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
21 0935
Downstream MH
21 1120
Dir. of Survey
Upstream
Length Surveyed
306.3 ft.
Total Length
306.3 ft.
Structural Index
3
Structural Quick
4133
Structural Rating
13
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole 21 0935 to 21 1120
MH: 21 0935MH: 21 1120upstream0 ft. AMH - Upstream Manhole, Survey Ends - 21 00201 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish1 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish46 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"112 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"184.3 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"210.8 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start218.5 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES235.6 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES297.8 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start306.3 ft. MWL - Water Level, 15 %of cross sectional area306.3 ft. MWM - Water Mark, 30 %of cross sectional area306.3 ft. AMH - Downstream Manhole, Survey Begins - 21 0935

Observation photos (4)

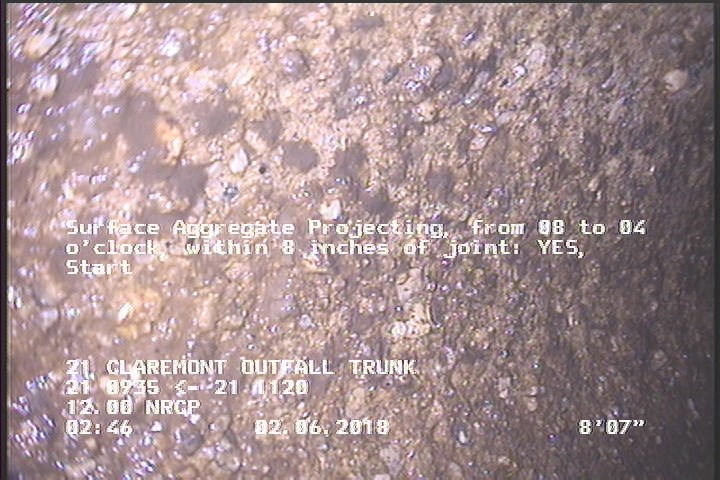

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    8.5 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

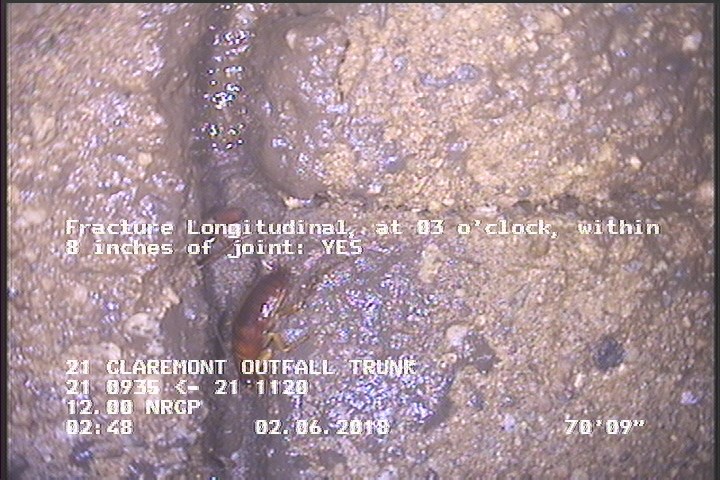

  • Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    70.7 ft. - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES

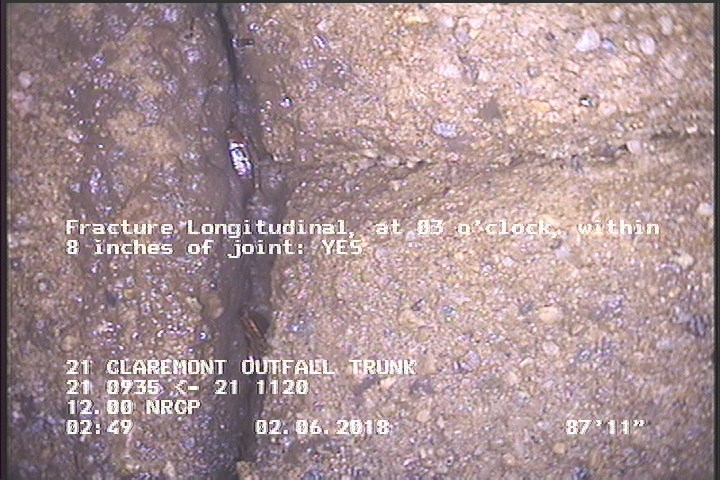

  • Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    87.8 ft. - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES

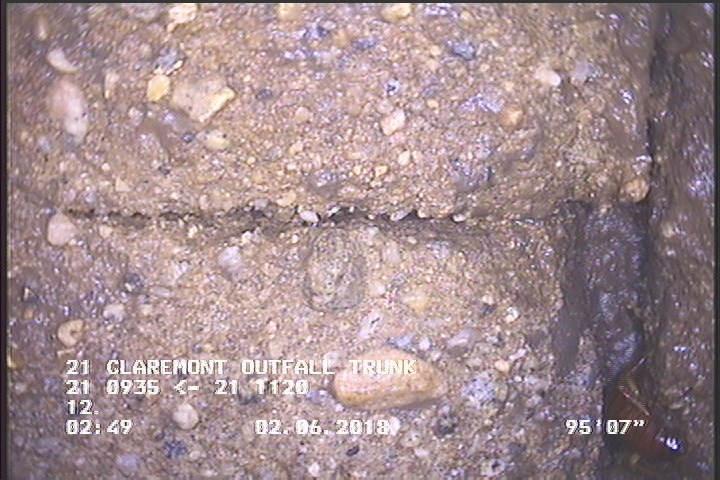

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    95.5 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P16024Work order 684706

Observations (13)

DistanceCodeObservation
306.3AMH21 0020
70.7FL—
87.8FL—
305.3SAP—
0MWL—
0MWM—
8.5SAP—
260.3TBA—
95.5FM—
122TBA—
305.3FM—
0AMH21 0935
194.3TBA—

Properties (4)

additional_info
SC346494
custom_field_two
2
customer
LACSD
datetime
2018-02-06T02:42:50-08:00
