Wastewater/Activity/PacpInspection/1.0Jan 12, 2018, 09:59 AM
05 0644_05 0643 _12012018_023616.mp4
- Date
- 01/12/2018
- W/O
- 679249
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00520
- PipeID
- P05869
- Time
- 1:59 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5372
- Sewer Name
- 05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK
- City
- INGLEWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_679249_TV05103_JAN2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 05 0644
- Downstream MH
- 05 0643
- Dir. of Survey
- Downstream
- Length Surveyed
- 323.1 ft.
- Total Length
- 323.1 ft.
- Structural Index
- 2
- Structural Quick
- 2300
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 412L
- O&M Rating
- 136
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 142
Observation photos (3)

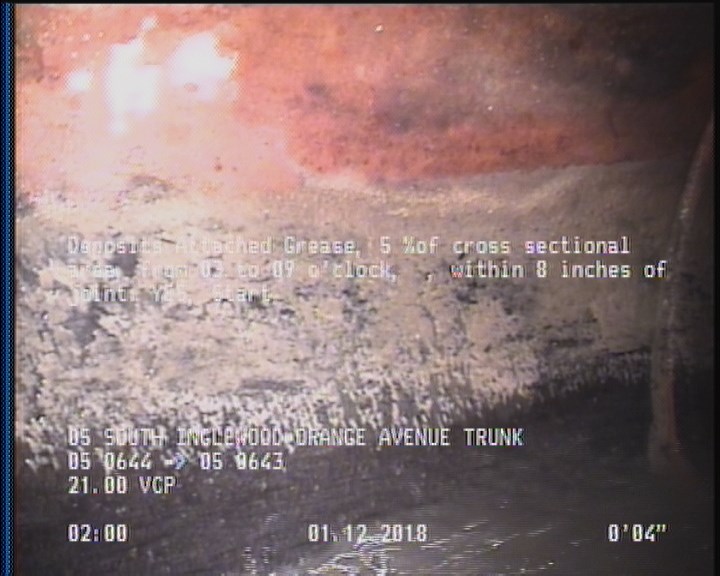

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

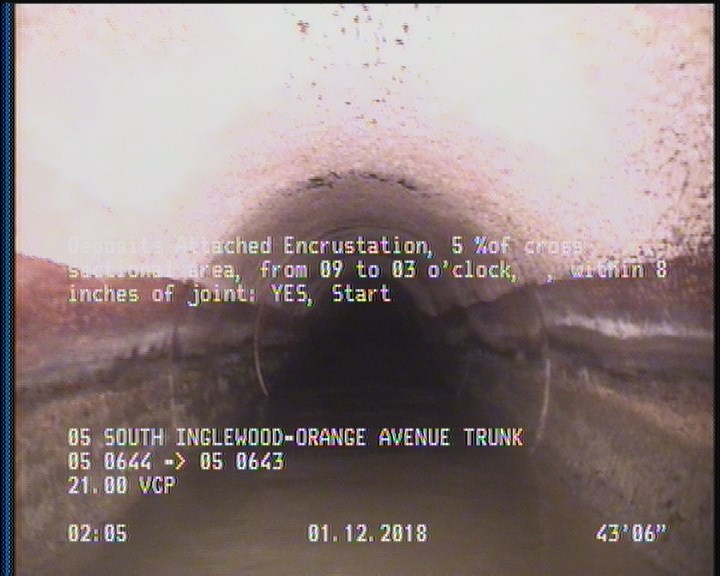

39.8 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

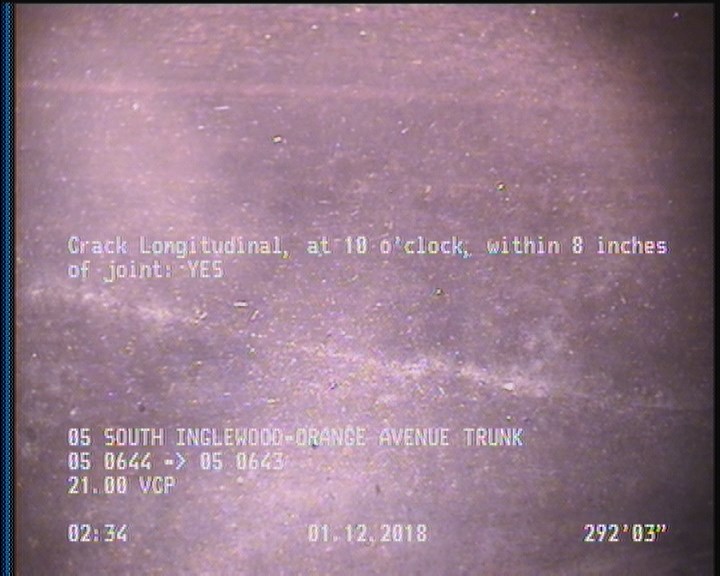

292.2 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 05 0644 |
| 134.1 | TFC | — |
| 323.1 | AMH | 05 0643 |
| 2 | DAGS | — |
| 269 | CS | — |
| 232 | CS | — |
| 322 | DAGS | — |
| 292.2 | CL | — |
| 0 | MWM | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 302 | TFC | — |
| 322 | DAE | — |
| 0 | MWL | — |
| 201.3 | TFC | — |
| 39.8 | DAE | — |
Properties (4)
- additional_info
- SC346449
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-01-12T01:59:12-08:00
