Wastewater/Activity/PacpInspection/1.0Jan 4, 2018, 11:26 AM
05 0665_05 0664 _04012018_033908.mp4
- Date
- 01/04/2018
- W/O
- 679249
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00520
- PipeID
- P05890
- Time
- 3:26 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5306
- Sewer Name
- 05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK
- City
- INGLEWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_679249_TV05103_JAN2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 05 0665
- Downstream MH
- 05 0664
- Dir. of Survey
- Downstream
- Length Surveyed
- 326 ft.
- Total Length
- 326.1 ft.
- Structural Index
- 2
- Structural Quick
- 2111
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 130
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 133
Observation photos (3)

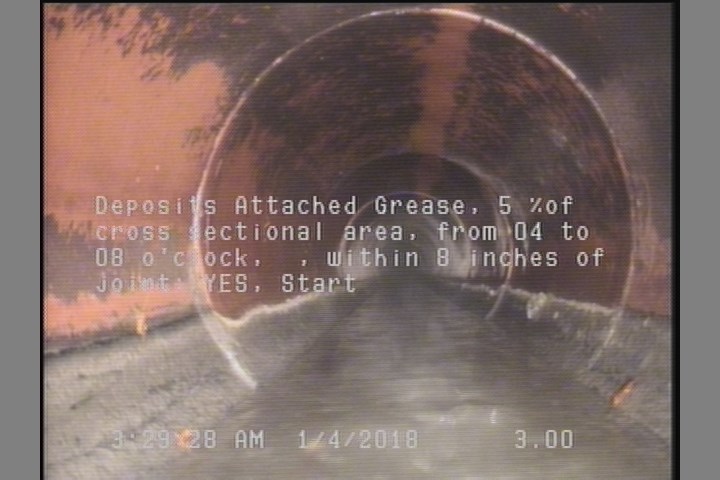

3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

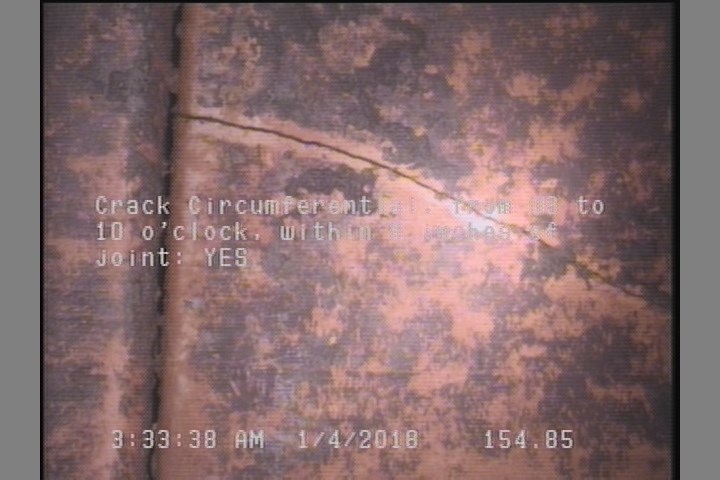

154.9 ft. - Crack Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES

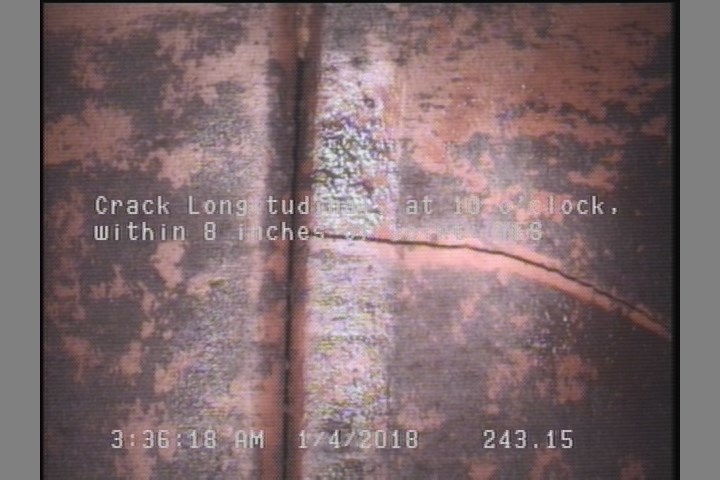

243.2 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 05 0665 |
| 154.9 | CC | — |
| 3 | DAGS | — |
| 289.8 | TFA | — |
| 70 | TFA | — |
| 326.1 | AMH | 05 0664 |
| 0 | MWM | — |
| 192.8 | TFA | — |
| 136.9 | TFA | — |
| 243.2 | CL | — |
| 237.8 | TFA | — |
| 0 | MWL | — |
| 326.1 | DAGS | — |
Properties (4)
- additional_info
- SC346475
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-01-04T03:26:07-08:00
