Wastewater/Activity/PacpInspection/1.0Jan 5, 2018, 10:35 AM
05 0653_05 0652 _05012018_025734.mp4
- Date
- 01/05/2018
- W/O
- 679249
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00520
- PipeID
- P05878
- Time
- 2:35 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5307
- Sewer Name
- 05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK
- City
- INGLEWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_679249_TV05103_JAN2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 05 0653
- Downstream MH
- 05 0652
- Dir. of Survey
- Downstream
- Length Surveyed
- 86.8 ft.
- Total Length
- 86.8 ft.
- Structural Index
- 2
- Structural Quick
- 2300
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (4)

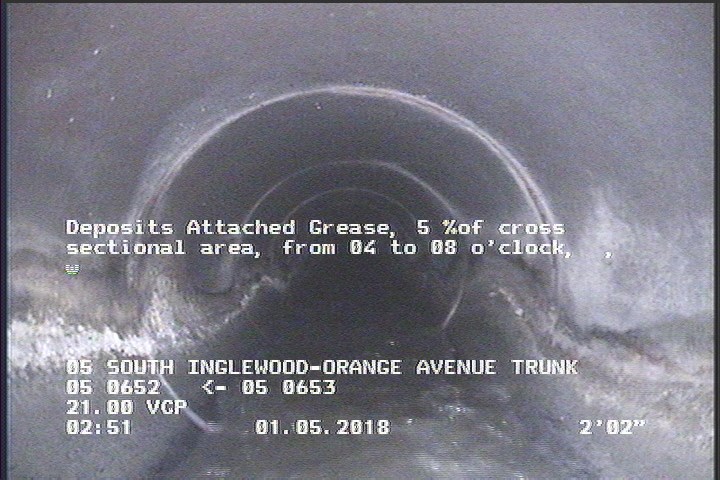

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

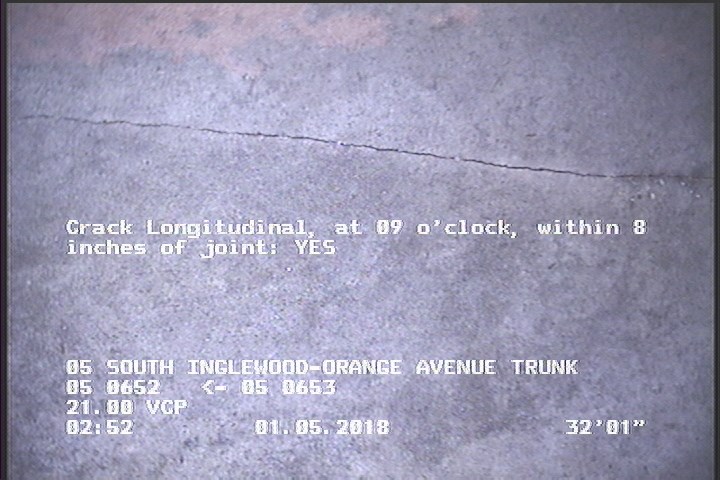

32.1 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

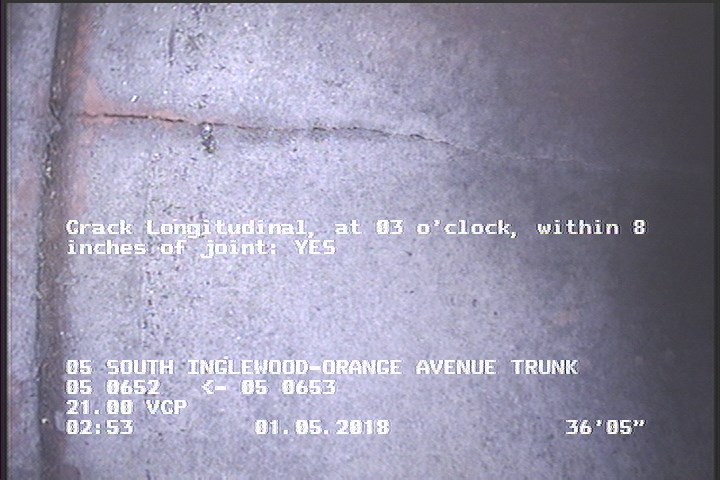

36.4 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

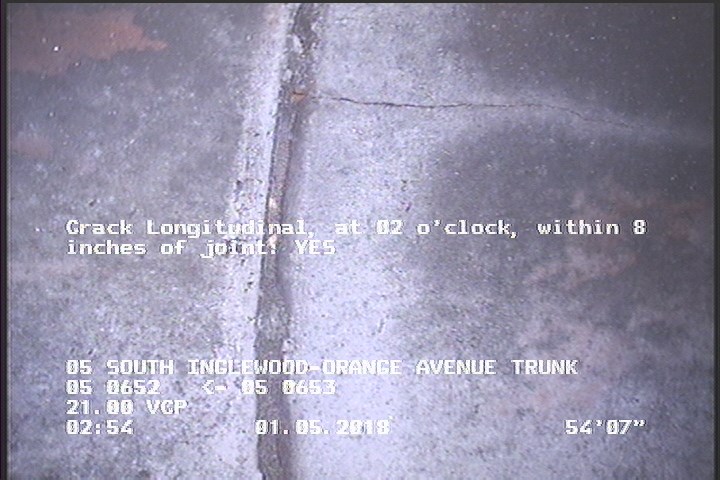

54.6 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK ACTIVE |
| 0 | MWM | — |
| 32.1 | CL | — |
| 86.8 | MGO | CONNECTION AT MH 3 O'CLOCK CAPPED |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK ACTIVE |
| 36.4 | CL | — |
| 86.8 | MGO | CONNECTION AT MH 9 O'CLOCK ACTIVE |
| 54.6 | CL | — |
| 0 | AMH | 05 0653 |
| 86.8 | DAGS | — |
| 2.1 | DAGS | — |
| 86.8 | AMH | 05 0653 |
Properties (4)
- additional_info
- SC346901
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-01-05T02:35:39-08:00
