Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 11, 2018, 10:36 AM

  • 05 0647_05 0645A _11012018_030858.mp4

Date
01/11/2018
W/O
679249
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00520
PipeID
P26222
Time
2:36 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5371
Sewer Name
05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK
City
INGLEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Routine Assessment
Project
WO_679249_TV05103_JAN2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
05 0647
Downstream MH
05 0645A
Dir. of Survey
Downstream
Length Surveyed
212.2 ft.
Total Length
212.2 ft.
Structural Index
3
Structural Quick
3F00
Structural Rating
111
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
111
Pipe schematic from manhole 05 0647 to 05 0645A
MH: 05 0647MH: 05 0645Adownstream0 ft. AMH - Upstream Manhole, Survey Begins - 05 06470 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MGO - General Observation - ACTIVE CONNECTIONS AT MH 3 AND 9 O'CLOCK0 ft. MWL - Water Level, 15 %of cross sectional area26 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start67.7 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"116 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"166.5 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"210.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish212.2 ft. AMH - Downstream Manhole, Survey Ends - 05 0645A212.2 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK

Observation photos (2)

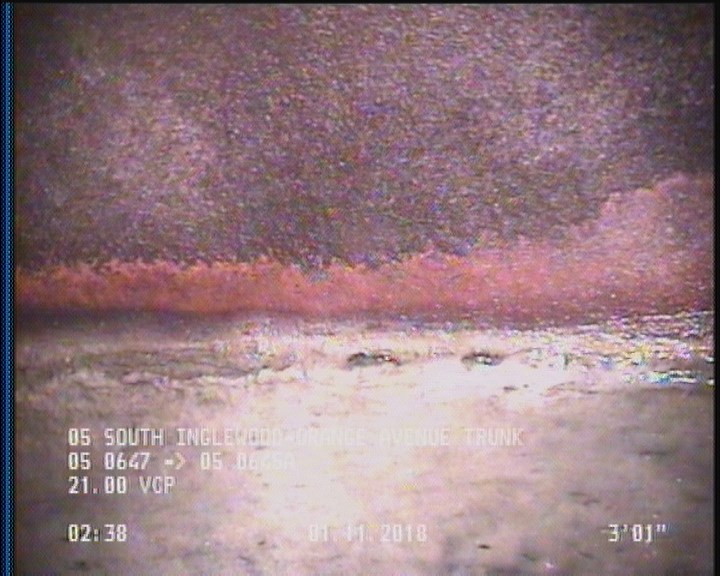

  • Water Mark, 40 %of cross sectional area

    0 ft. - Water Mark, 40 %of cross sectional area

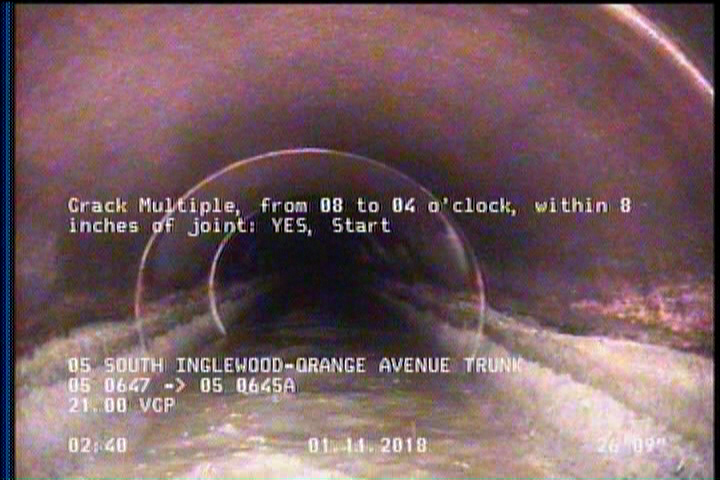

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    26 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P26222Work order 679249

Observations (12)

DistanceCodeObservation
0AMH05 0647
116TFC—
0MWM—
26CM—
0MGOCOCKROACHES IN MANHOLE
67.7TFC—
0MGOACTIVE CONNECTIONS AT MH 3 AND 9 O'CLOCK
0MWL—
210.2CM—
212.2AMH05 0645A
166.5TFA—
212.2MGOACTIVE CONNECTION AT MH 9 O'CLOCK

Properties (4)

additional_info
SC346448
custom_field_two
3
customer
LACSD
datetime
2018-01-11T02:36:30-08:00
