Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 4, 2018, 12:09 PM

  • 05 0662_05 0661 _04012018_042850.mp4

Date
01/04/2018
W/O
679249
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00520
PipeID
P05887
Time
4:09 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5306
Sewer Name
05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK
City
INGLEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
10
Purpose
Routine Assessment
Project
WO_679249_TV05103_JAN2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
05 0662
Downstream MH
05 0661
Dir. of Survey
Downstream
Length Surveyed
334.1 ft.
Total Length
334.1 ft.
Structural Index
2
Structural Quick
2400
Structural Rating
8
O&M Index
2
O&M Quick
4131
O&M Rating
12
Overall Index
2
Overall Quick
—
Overall Rating
20
Pipe schematic from manhole 05 0662 to 05 0661
MH: 05 0662MH: 05 0661downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 06620 ft. MWL - Water Level, 15 %of cross sectional area2.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start42.5 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"74.9 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"74.9 ft. RBL - Roots Ball Lateral, at 12 o'clock, 80 %126.4 ft. TBA - Tap Break-In Active, at 01 o'clock, -, within 8 inches of joint: YES, 4"153.7 ft. RML - Roots Medium Lateral, at 12 o'clock, 45 %, within 8 inches of joint: YES153.7 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"193.7 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"201.4 ft. CS - Crack Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES, Start215.2 ft. CS - Crack Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish236.2 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"275.3 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"317.5 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"325.2 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES331.6 ft. VC - Vermin Cockroach332.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish334.1 ft. AMH - Downstream Manhole, Survey Ends - 05 0661

Observation photos (5)

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

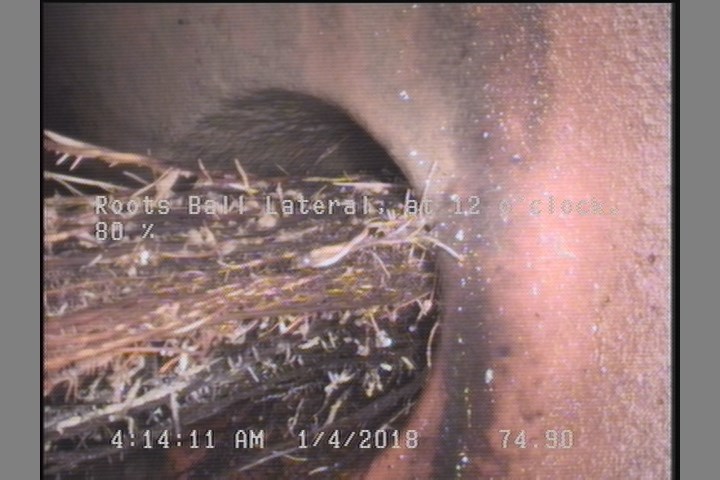

  • Roots Ball Lateral, at 12 o'clock, 80 %

    74.9 ft. - Roots Ball Lateral, at 12 o'clock, 80 %

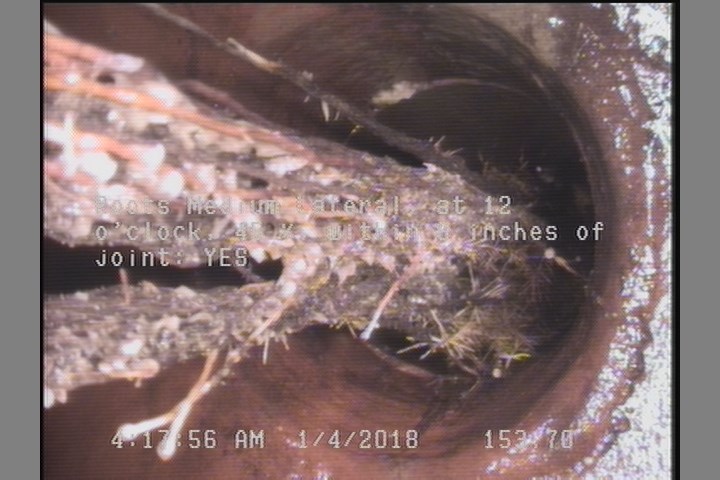

  • Roots Medium Lateral, at 12 o'clock, 45 %, within 8 inches of joint: YES

    153.7 ft. - Roots Medium Lateral, at 12 o'clock, 45 %, within 8 inches of joint: YES

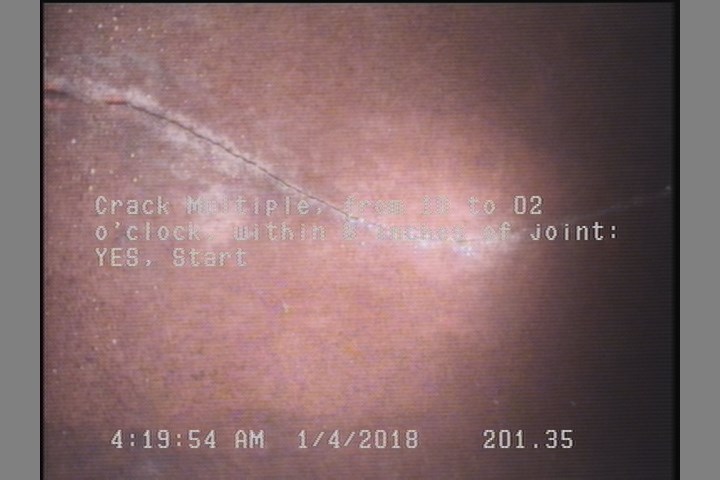

  • Crack Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    201.4 ft. - Crack Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

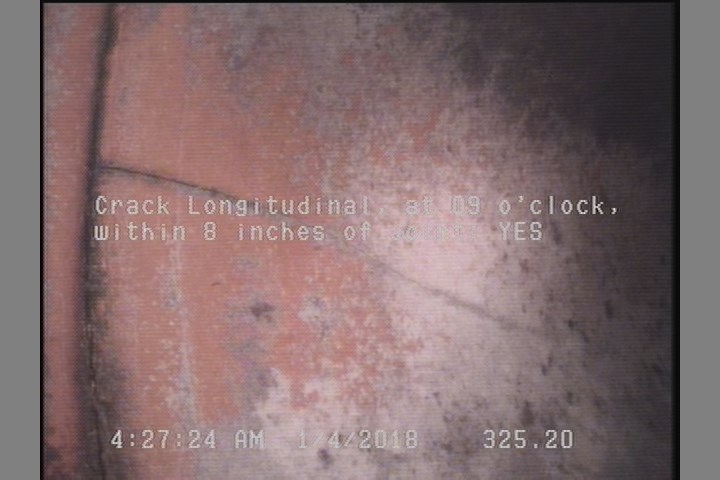

  • Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    325.2 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

All inspections of P05887Work order 679249

Observations (20)

DistanceCodeObservation
153.7RML—
236.2TFA—
42.5TFA—
332.9DAGS—
126.4TBA—
0MWM—
201.4CS—
317.5TFA—
275.3TFA—
0AMH05 0662
74.9TFA—
193.7TFA—
0MWL—
331.6VC—
325.2CL—
2.1DAGS—
334.1AMH05 0661
215.2CS—
74.9RBL—
153.7TFA—

Properties (4)

additional_info
SC346475
custom_field_two
4
customer
LACSD
datetime
2018-01-04T04:09:54-08:00
