Wastewater/Activity/PacpInspection/1.0Jan 5, 2018, 08:11 AM
05 0657_05 0656 _05012018_003419.mp4
- Date
- 01/05/2018
- W/O
- 679249
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00520
- PipeID
- P05882
- Time
- 12:11 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5307
- Sewer Name
- 05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK
- City
- INGLEWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_679249_TV05103_JAN2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 05 0657
- Downstream MH
- 05 0656
- Dir. of Survey
- Downstream
- Length Surveyed
- 351.6 ft.
- Total Length
- 351.6 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 1
- O&M Quick
- 2112
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

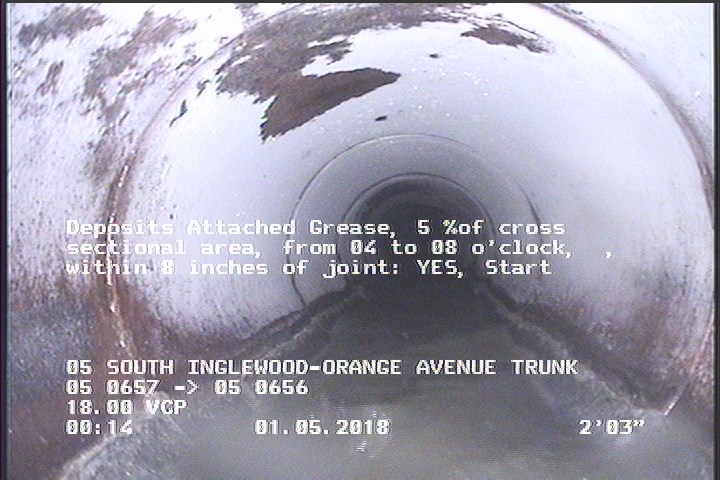

2.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

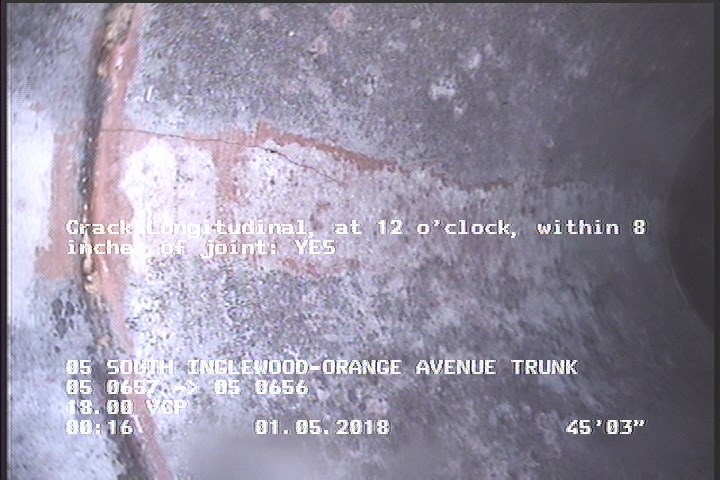

45.2 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 166.9 | TF | — |
| 217.9 | TFA | — |
| 0 | AMH | 05 0657 |
| 351.6 | DAGS | — |
| 351.6 | VC | — |
| 2.3 | DAGS | — |
| 351.6 | AMH | 05 0656 |
| 0 | MWM | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK ACTIVE |
| 122 | TFC | — |
| 0 | VC | — |
| 351.6 | MGO | CONNECTION AT MH 3 O'CLOCK ACTIVE |
| 0 | MWL | — |
| 351.6 | MGO | CONNECTION AT MH 9 O'CLOCK CAPPED |
| 45.2 | CL | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK CAPPED |
| 266.2 | TF | — |
| 70.5 | TFC | — |
| 317.5 | TFC | — |
Properties (4)
- additional_info
- SC346901
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-01-05T00:11:53-08:00
