Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 12, 2018, 10:38 AM

  • 05 0643_05 0642 _12012018_025918.mp4

Date
01/12/2018
W/O
679249
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00520
PipeID
P05868
Time
2:38 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5372
Sewer Name
05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK
City
HAWTHORNE
Loc. details
Airport
Location Code
M
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Routine Assessment
Project
WO_679249_TV05103_JAN2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
05 0643
Downstream MH
05 0642
Dir. of Survey
Downstream
Length Surveyed
324.2 ft.
Total Length
324.2 ft.
Structural Index
3
Structural Quick
3323
Structural Rating
15
O&M Index
2
O&M Quick
2400
O&M Rating
8
Overall Index
2
Overall Quick
—
Overall Rating
23
Pipe schematic from manhole 05 0643 to 05 0642
MH: 05 0643MH: 05 0642downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 06432 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start16 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES29.2 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"45 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES77.7 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"84 ft. CS - Crack Spiral, from 07 to 09 o'clock, within 8 inches of joint: YES120.7 ft. CM - Crack Multiple, from 12 to 01 o'clock, within 8 inches of joint: YES129.7 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"179.2 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"237.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"253.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start287 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"323 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Finish323 ft. MGO - General Observation - COCKROACHES IN MANHOLE323 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish323.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish324.2 ft. AMH - Downstream Manhole, Survey Ends - 05 0642

Observation photos (4)

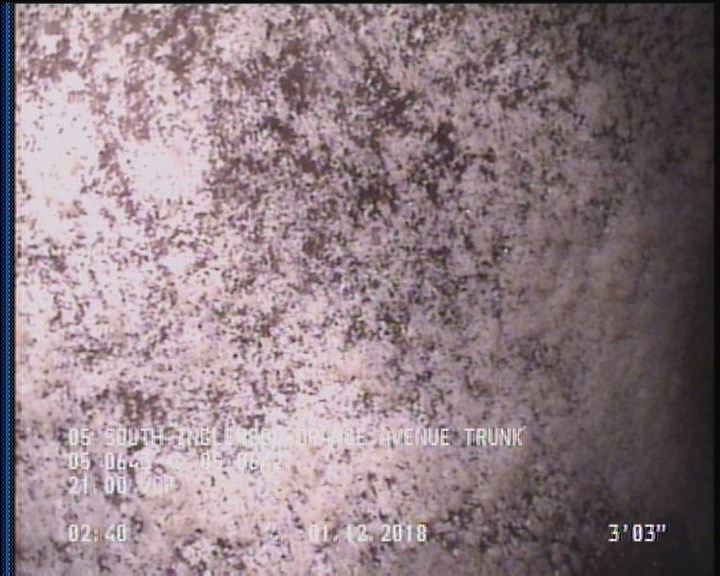

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

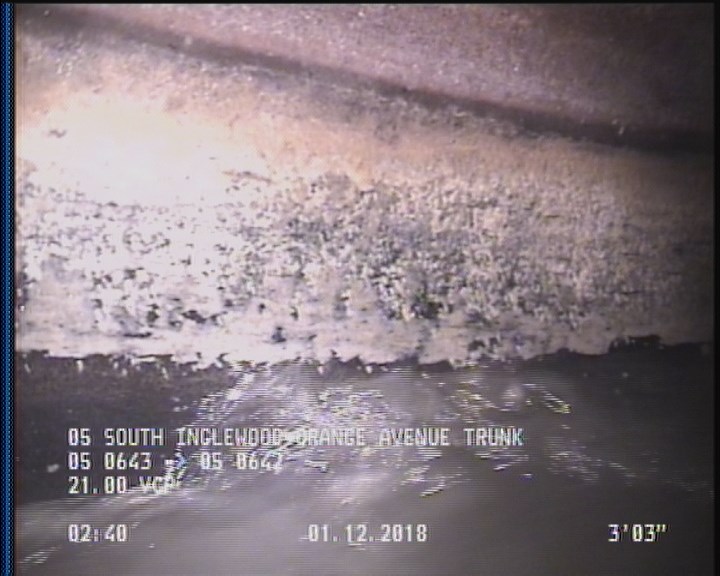

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

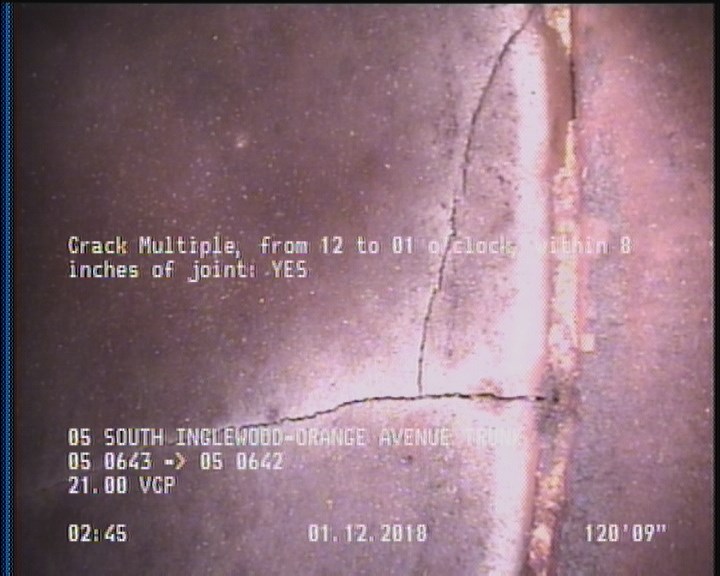

  • Crack Multiple, from 12 to 01 o'clock, within 8 inches of joint: YES

    120.7 ft. - Crack Multiple, from 12 to 01 o'clock, within 8 inches of joint: YES

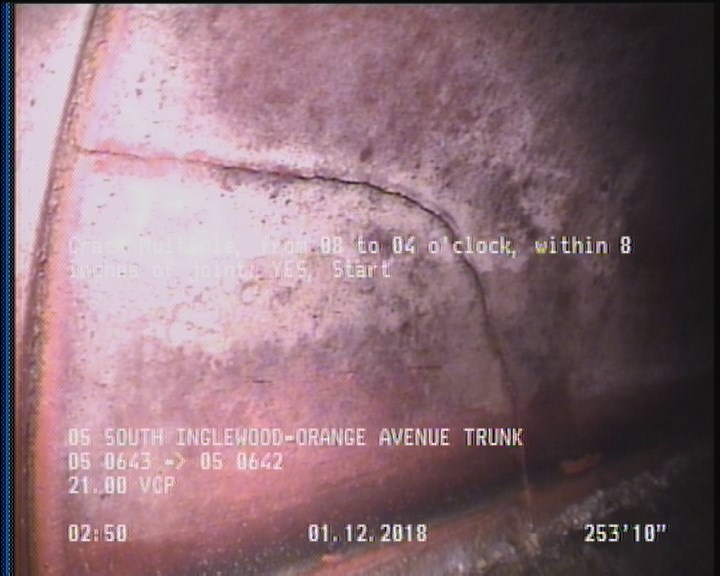

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    253.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P05868Work order 679249

Observations (21)

DistanceCodeObservation
323DAE—
0MWL—
237.6TFC—
29.2TFC—
323MGOCOCKROACHES IN MANHOLE
2DAE—
77.7TFC—
179.2TFC—
129.7TFC—
323.1CM—
84CS—
323DAGS—
324.2AMH05 0642
253.9CM—
0MWM—
2DAGS—
45CL—
16CL—
287TFC—
0AMH05 0643
120.7CM—

Properties (4)

additional_info
SC346449
custom_field_two
3
customer
LACSD
datetime
2018-01-12T02:38:06-08:00
