Wastewater/Activity/PacpInspection/1.0Jan 5, 2018, 06:07 AM
05 0661_05 0660 _04012018_222446.mp4
- Date
- 01/04/2018
- W/O
- 679249
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00520
- PipeID
- P05886
- Time
- 10:07 PM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5307
- Sewer Name
- 05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK
- City
- INGLEWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_679249_TV05103_JAN2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 05 0661
- Downstream MH
- 05 0660
- Dir. of Survey
- Downstream
- Length Surveyed
- 55.1 ft.
- Total Length
- 55.1 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

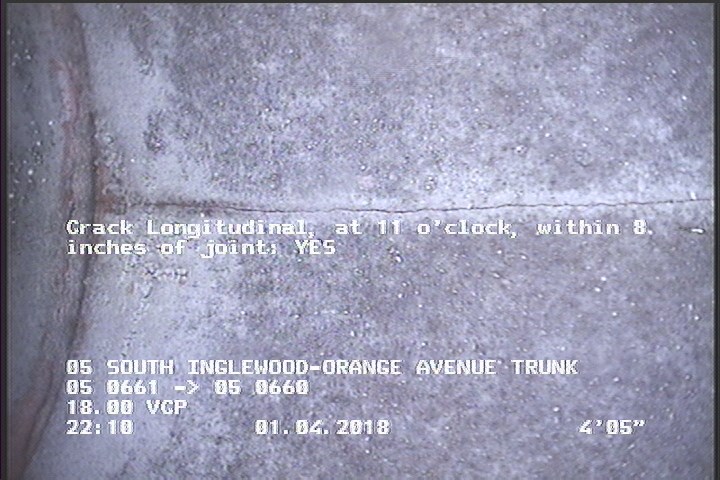

4.4 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

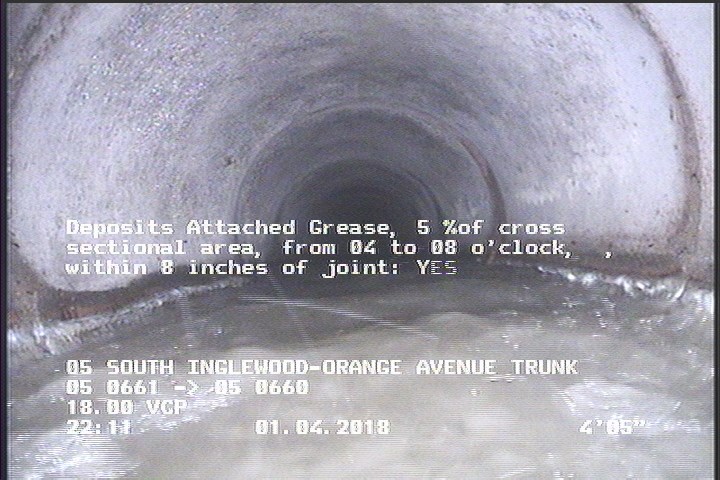

4.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 55.1 | DAGS | — |
| 0 | MWM | — |
| 0 | AMH | 05 0661 |
| 4.4 | CL | — |
| 4.4 | DAGS | — |
| 0 | MWL | — |
| 55.1 | AMH | 05 0660 |
| 55.1 | VC | — |
Properties (4)
- additional_info
- SC346901
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-01-04T22:07:19-08:00
