Date
01/11/2018
W/O
679249
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00520
PipeID
P05873
Time
1:53 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5371
Sewer Name
05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK
City
INGLEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Routine Assessment
Project
WO_679249_TV05103_JAN2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
05 0648
Downstream MH
05 0647
Dir. of Survey
Downstream
Length Surveyed
352.2 ft.
Total Length
352.2 ft.
Structural Index
3
Structural Quick
3K00
Structural Rating
186
O&M Index
2
O&M Quick
412M
O&M Rating
144
Overall Index
2
Overall Quick
—
Overall Rating
330
Pipe schematic from manhole 05 0648 to 05 0647
MH: 05 0648MH: 05 0647downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - 05 06480 ft. MGO - General Observation - ACTIVE CONNECTIONS AT MH 3 AND 9 O'CLOCK0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start41.5 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start78.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"122.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"167.3 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"219 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"270.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"317.9 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"350 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish350 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish352.2 ft. MGO - General Observation - ACTIVE CONNECTIONS AT MH 3 AND 9 OCLOCK.352.2 ft. MGO - General Observation - COCKROACHES IN MANHOLE352.2 ft. AMH - Downstream Manhole, Survey Ends - 05 0647

Observation photos (2)

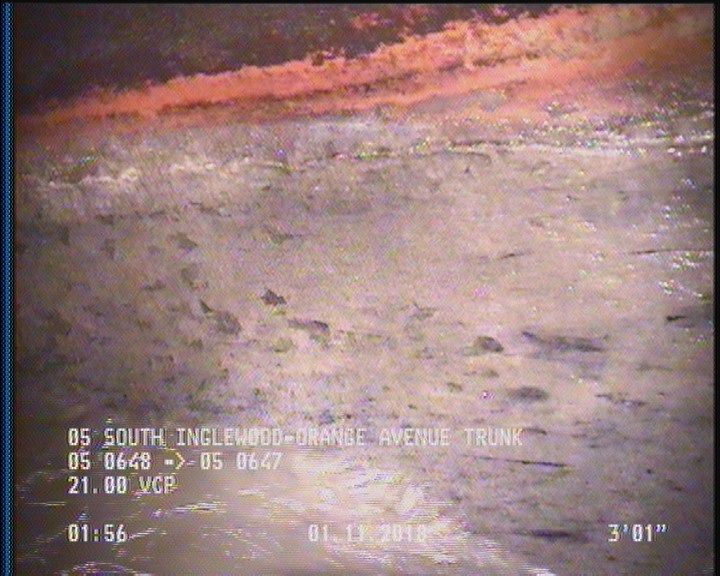

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    41.5 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P05873Work order 679249

Observations (18)

DistanceCodeObservation
352.2MGOACTIVE CONNECTIONS AT MH 3 AND 9 OCLOCK.
317.9TFC—
0MGOCOCKROACHES IN MANHOLE
352.2MGOCOCKROACHES IN MANHOLE
352.2AMH05 0647
0AMH05 0648
350CM—
0MGOACTIVE CONNECTIONS AT MH 3 AND 9 O'CLOCK
350DAGS—
0MWL—
167.3TFC—
2DAGS—
219TFC—
270.5TFC—
41.5CM—
122.6TFC—
0MWM—
78.5TFC—

Properties (4)

additional_info
SC346448
custom_field_two
3
customer
LACSD
datetime
2018-01-11T01:53:55-08:00
