Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 4, 2018, 11:53 AM

  • 05 0663_05 0662 _04012018_040904.mp4

Date
01/04/2018
W/O
679249
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00520
PipeID
P05888
Time
3:53 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5306
Sewer Name
05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK
City
INGLEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
10
Purpose
Routine Assessment
Project
WO_679249_TV05103_JAN2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
05 0663
Downstream MH
05 0662
Dir. of Survey
Downstream
Length Surveyed
331.8 ft.
Total Length
331.8 ft.
Structural Index
2
Structural Quick
2200
Structural Rating
4
O&M Index
2
O&M Quick
322L
O&M Rating
141
Overall Index
2
Overall Quick
—
Overall Rating
145
Pipe schematic from manhole 05 0663 to 05 0662
MH: 05 0663MH: 05 0662downstream0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK ACTIVE0 ft. VC - Vermin Cockroach0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 06630 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK ACTIVE0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start48.8 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"56.7 ft. CL - Crack Longitudinal, at 08 o'clock, within 8 inches of joint: YES130.5 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"145 ft. OBZ - Obstacles Other, 10 %of cross sectional area, from 04 to 08 o'clock - NOT VISIBLE155.3 ft. RML - Roots Medium Lateral, at 12 o'clock, 20 %, within 8 inches of joint: YES155.3 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"234.3 ft. RML - Roots Medium Lateral, at 12 o'clock, 15 %, within 8 inches of joint: YES234.3 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"242.2 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES319.4 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"331.8 ft. AMH - Downstream Manhole, Survey Ends - 05 0662331.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish

Observation photos (5)

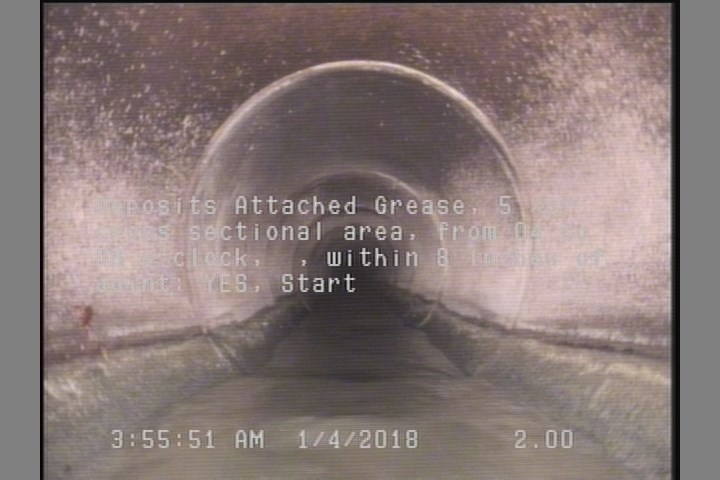

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

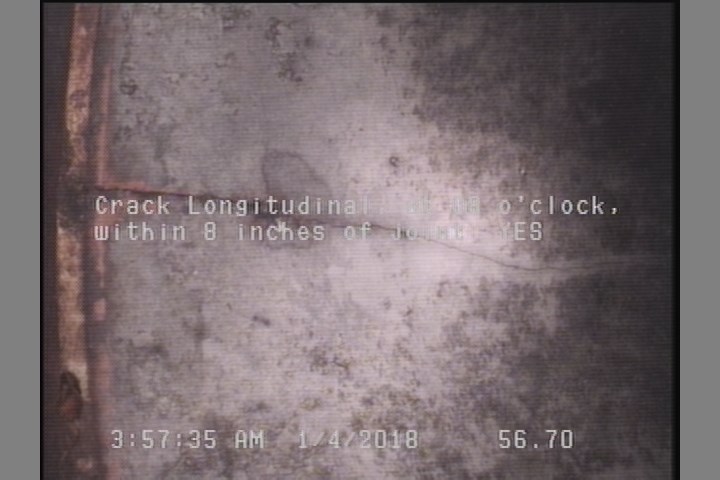

  • Crack Longitudinal, at 08 o'clock, within 8 inches of joint: YES

    56.7 ft. - Crack Longitudinal, at 08 o'clock, within 8 inches of joint: YES

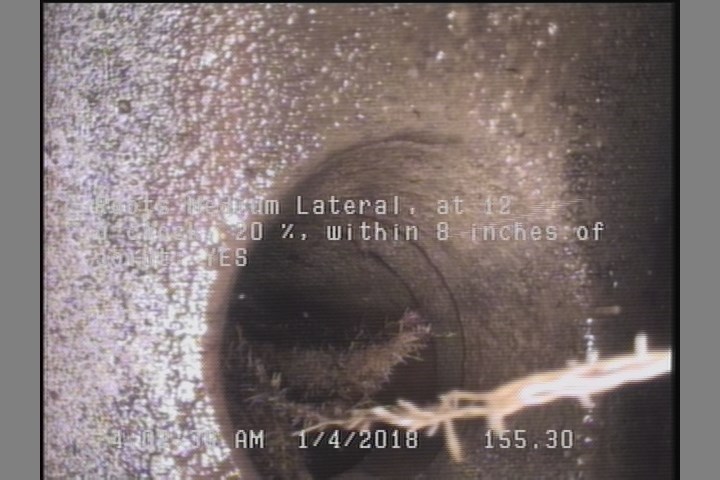

  • Roots Medium Lateral, at 12 o'clock, 20 %, within 8 inches of joint: YES

    155.3 ft. - Roots Medium Lateral, at 12 o'clock, 20 %, within 8 inches of joint: YES

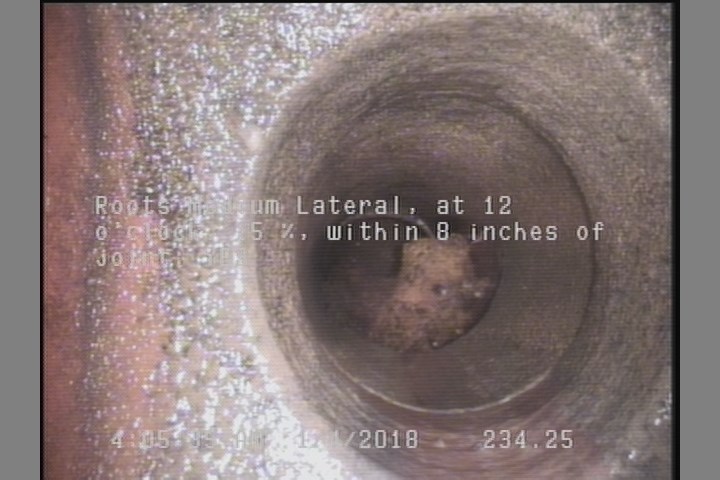

  • Roots Medium Lateral, at 12 o'clock, 15 %, within 8 inches of joint: YES

    234.3 ft. - Roots Medium Lateral, at 12 o'clock, 15 %, within 8 inches of joint: YES

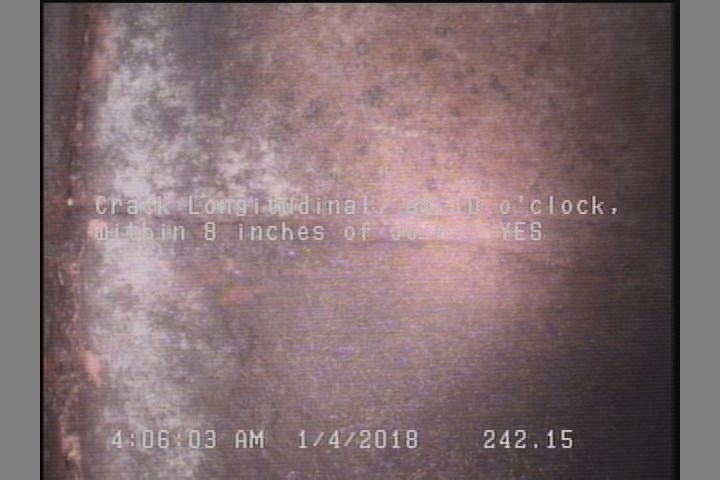

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    242.2 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

All inspections of P05888Work order 679249

Observations (19)

DistanceCodeObservation
331.8AMH05 0662
0MGOCONNECTION AT MH 3 O'CLOCK ACTIVE
234.3RML—
155.3RML—
242.2CL—
56.7CL—
0VC—
331.8DAGS—
48.8TFA—
145OBZNOT VISIBLE
2DAGS—
0MWM—
234.3TFA—
0AMH05 0663
0MGOCONNECTION AT MH 9 O'CLOCK ACTIVE
155.3TFA—
319.4TFA—
0MWL—
130.5TFA—

Properties (4)

additional_info
SC346475
custom_field_two
4
customer
LACSD
datetime
2018-01-04T03:53:46-08:00
