Wastewater/Activity/PacpInspection/1.0Feb 24, 2018, 02:04 PM
Section#5_A 0077_A 0076__2242018__G6962.mp4
- Date
- 02/24/2018
- W/O
- 0691317
- Weather
- Dry
- Operator/Surveyor
- MARTIN,MANANES,REVELES,OL
- Sewer ID
- Z00338
- PipeID
- P08439
- Time
- 6:04 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6962
- Sewer Name
- A JOINT OUTFALL A - UNIT 7
- City
- PARAMOUNT
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- 20180224MDM_JOINT_OUTFALL_A_UNIT_7
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Upstream MH
- A 0077
- Downstream MH
- A 0076
- Dir. of Survey
- Downstream
- Length Surveyed
- 436.6 ft.
- Total Length
- 436.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2P00
- O&M Rating
- 174
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 174
Observation photos (4)

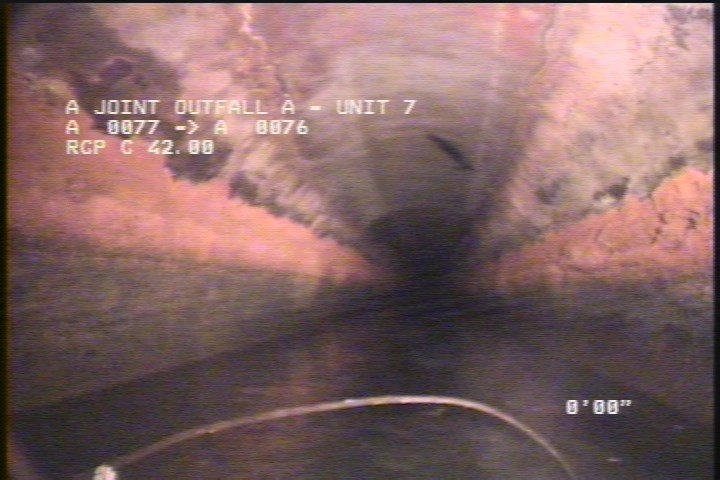

2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

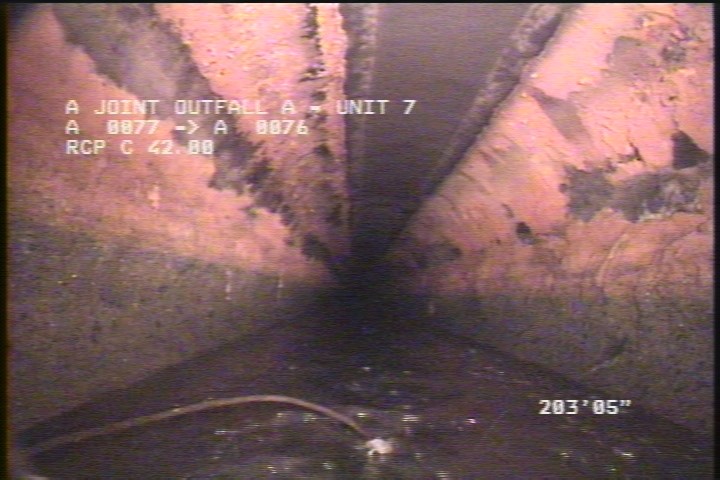

203.4 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 01 to 11 o'clock, , within 8 inches of joint: YES, Start

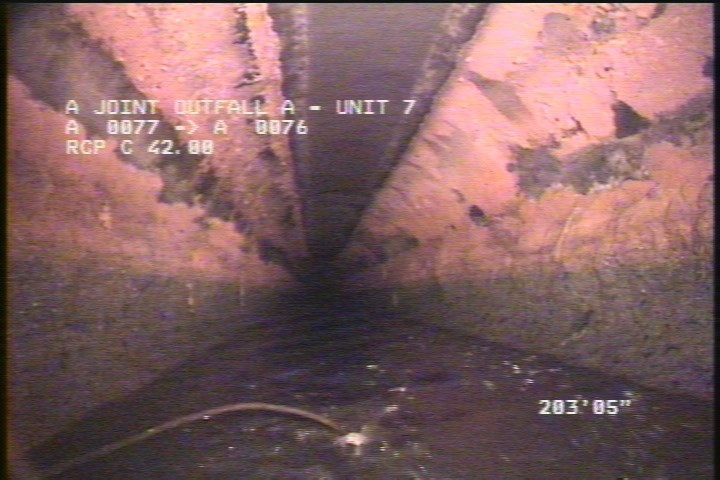

203.4 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES, Finish

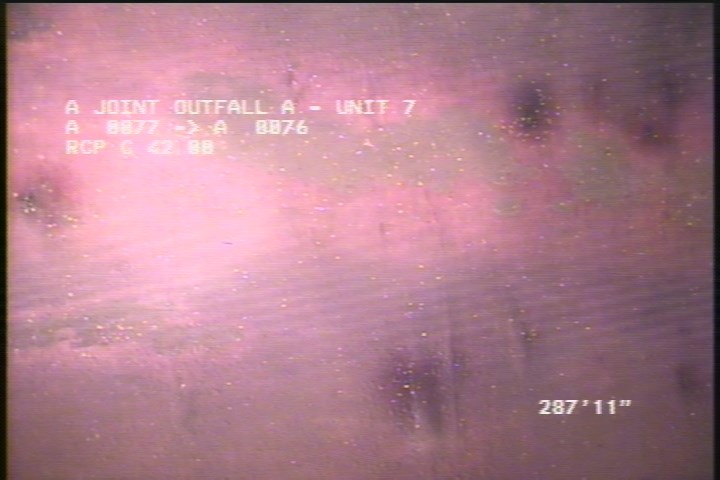

287.9 ft. - General Photograph - RCP FR POLY LINER
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 203.4 | DAGS | — |
| 0 | AMH | 6:15AM |
| 436.6 | AMH | 6:50AM |
| 436.1 | DAGS | — |
| 0 | MWL | — |
| 287.9 | MGP | RCP FR POLY LINER |
| 203.4 | DAGS | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 436.1 | MGO | MH CONN 9:00 ACTIVE |
Properties (4)
- custom_field_three
- LINER GOOD CONDITION
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-02-24T06:04:44-08:00
