Wastewater/Activity/PacpInspection/1.0Feb 24, 2018, 10:35 AM
Section#2_A 0080_A 0079__2242018__G6961.mp4
- Date
- 02/24/2018
- W/O
- 0691317
- Weather
- Dry
- Operator/Surveyor
- MARTIN,MANANES,REVELES,OL
- Sewer ID
- Z00338
- PipeID
- P08442
- Time
- 2:35 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6961
- Sewer Name
- A JOINT OUTFALL A - UNIT 7
- City
- PARAMOUNT
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- 20180224MDM_JOINT_OUTFALL_A_UNIT_7
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Upstream MH
- A 0080
- Downstream MH
- A 0079
- Dir. of Survey
- Downstream
- Length Surveyed
- 653.8 ft.
- Total Length
- 653.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 4131
- O&M Rating
- 269
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 269
Observation photos (5)

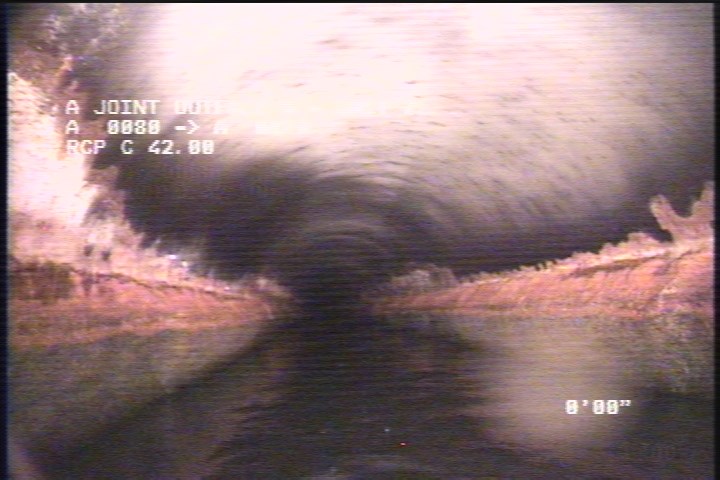

2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

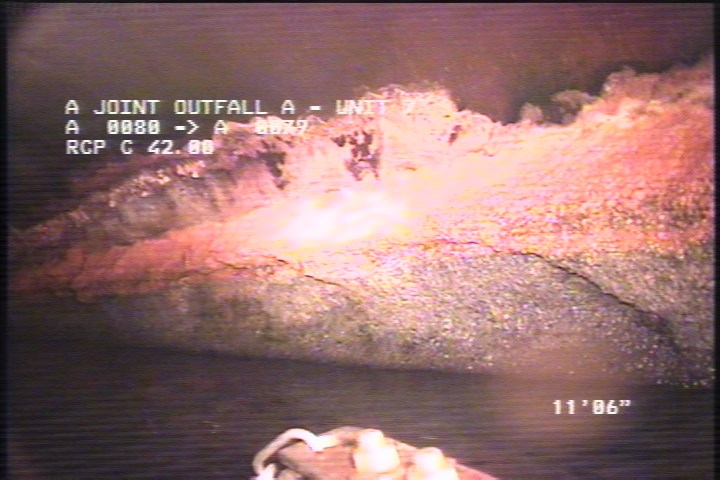

11.5 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO

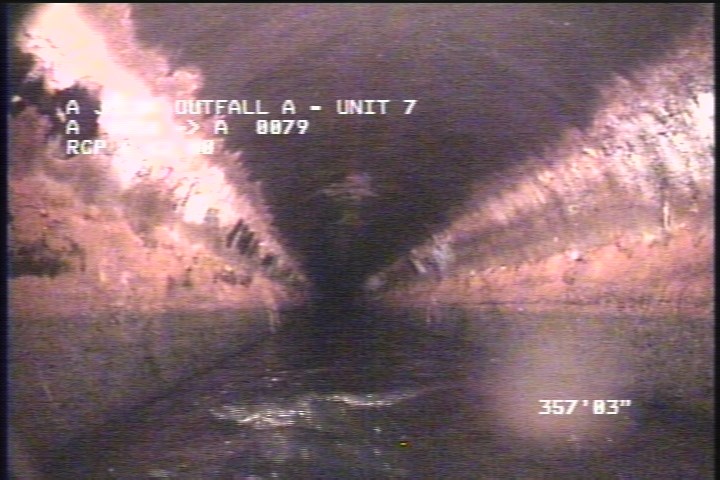

357.3 ft. - Water Mark, 60 %of cross sectional area

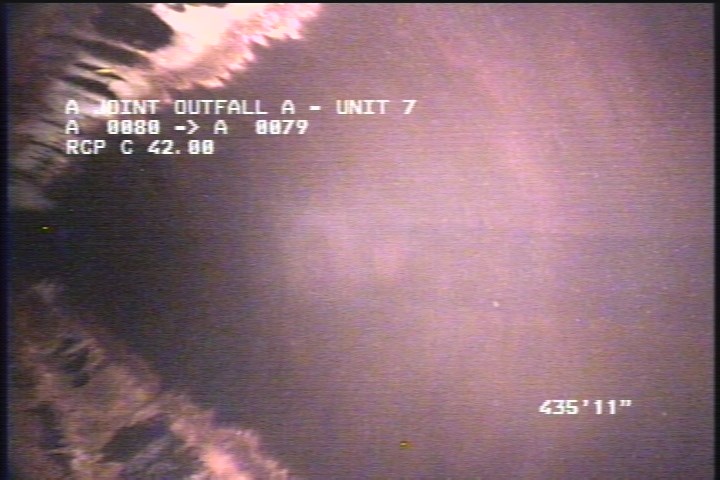

435.9 ft. - General Photograph - FR POLY LINER

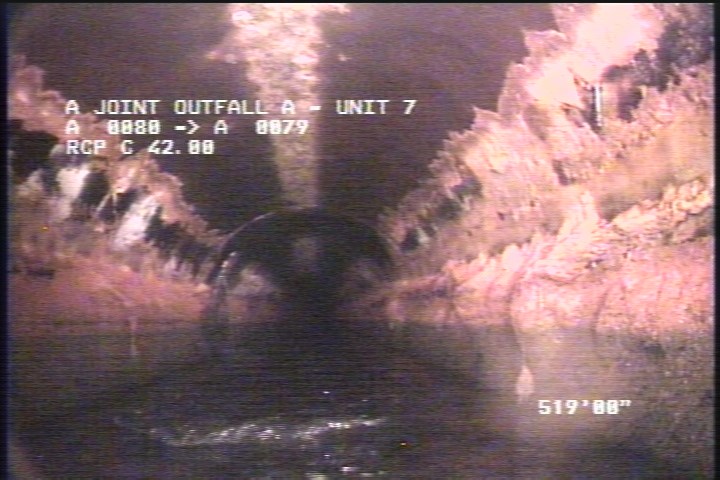

519 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 519 | DAGS | — |
| 435.9 | MGP | FR POLY LINER |
| 2 | DAGS | — |
| 0 | MWM | — |
| 653.1 | MGO | MH CONN 9:00 OPEN |
| 534.9 | TB | ACTIVE |
| 653.8 | AMH | 3:05AM |
| 653.1 | DAGS | — |
| 0 | MWL | — |
| 11.5 | DAGS | — |
| 357.3 | MWM | — |
| 0 | MGO | MH CONN 9:00 OPEN |
| 0 | AMH | 2:35AM |
Properties (4)
- custom_field_three
- LINER GOOD CONDITION
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-02-24T02:35:00-08:00
