Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 24, 2018, 09:52 AM

  • Section#1_A 0081_A 0080__2242018__G6961.mp4

Date
02/24/2018
W/O
0691317
Weather
Dry
Operator/Surveyor
MARTIN,MANANES,REVELES,OL
Sewer ID
Z00338
PipeID
P08443
Time
1:52 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6961
Sewer Name
A JOINT OUTFALL A - UNIT 7
City
PARAMOUNT
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
02
Purpose
Routine Assessment
Project
20180224MDM_JOINT_OUTFALL_A_UNIT_7
Material
Reinforced Concrete Pipe
Shape
Circular
Height
42 in.
Upstream MH
A 0081
Downstream MH
A 0080
Dir. of Survey
Downstream
Length Surveyed
651.7 ft.
Total Length
651.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2Y00
O&M Rating
260
Overall Index
2
Overall Quick
—
Overall Rating
260
Pipe schematic from manhole A 0081 to A 0080
MH: A 0081MH: A 0080downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:15AM0 ft. MGO - General Observation - MH CONN 3:00 ACTIVE0 ft. MGO - General Observation - MH BCONN 9:00 ACTIVE2 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start8 ft. MGO - General Observation - 42" RCP-FR-POLY LINER314.2 ft. MGP - General Photograph - FR POLY LINER314.2 ft. MGO - General Observation - 42" RCP FR-POLY LINER383 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 8" - ACTIVE651.1 ft. MGO - General Observation - MH CONN 9:00 OPEN651.1 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish651.7 ft. AMH - Downstream Manhole, Survey Ends - 2:05AM

Observation photos (4)

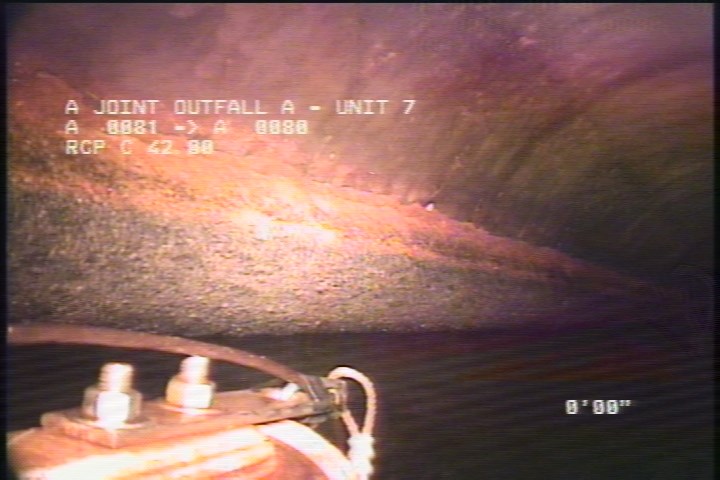

  • Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

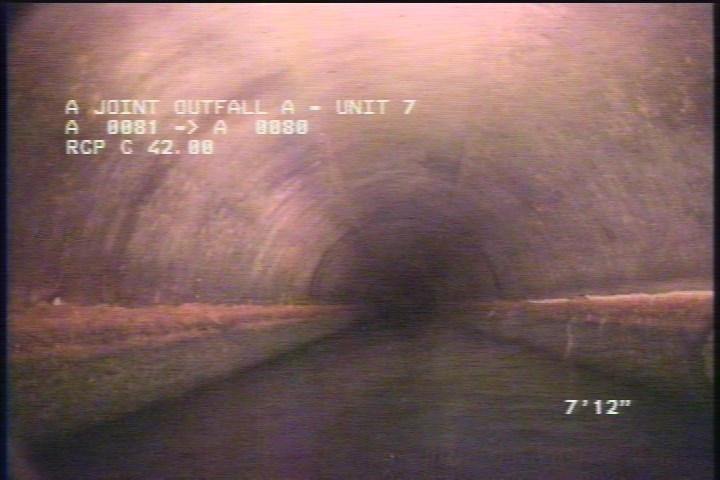

  • General Observation - 42" RCP-FR-POLY LINER

    8 ft. - General Observation - 42" RCP-FR-POLY LINER

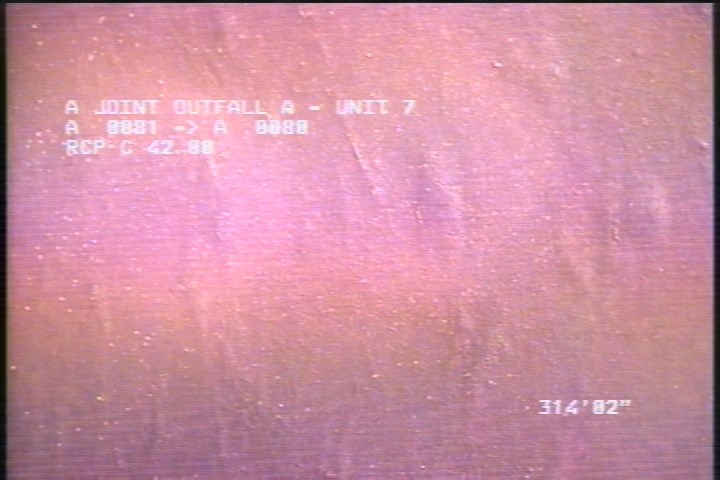

  • General Photograph - FR POLY LINER

    314.2 ft. - General Photograph - FR POLY LINER

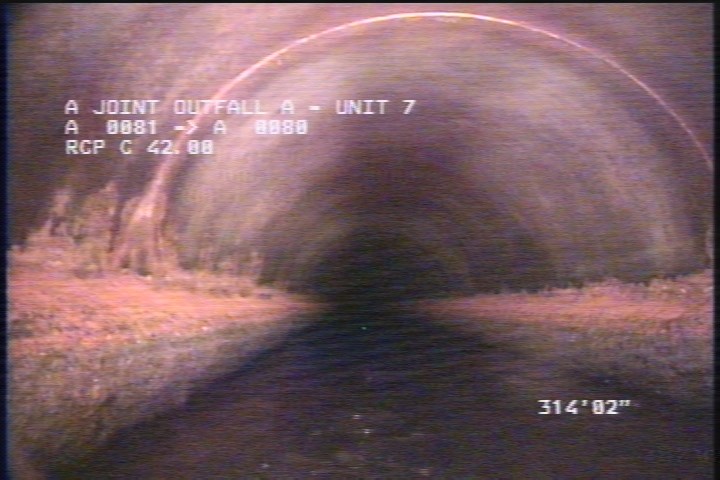

  • General Observation - 42" RCP FR-POLY LINER

    314.2 ft. - General Observation - 42" RCP FR-POLY LINER

All inspections of P08443Work order 0691317

Observations (13)

DistanceCodeObservation
383TBACTIVE
2DAGS—
8MGO42" RCP-FR-POLY LINER
651.1MGOMH CONN 9:00 OPEN
0MWL—
314.2MGPFR POLY LINER
0MWM—
0AMH1:15AM
314.2MGO42" RCP FR-POLY LINER
651.1DAGS—
651.7AMH2:05AM
0MGOMH CONN 3:00 ACTIVE
0MGOMH BCONN 9:00 ACTIVE

Properties (6)

custom_field_three
LINER GOOD CONDITION
custom_field_two
4
customer
LACSD
datetime
2018-02-24T01:52:31-08:00
lining
FR POLY LINE
year_laid
19970516
