Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 12, 2017, 09:13 AM

  • 15 0603_15 0602_12102017_021400.mp4

Date
10/12/2017
W/O
663065
Weather
Dry
Operator/Surveyor
K. ADAME
Sewer ID
Z00601
PipeID
P12535
Time
2:13 AM
Certificate
07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4828
Sewer Name
15 DOUBLE AVENUE TRUNK
City
TEMPLE CITY, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
11
Purpose
Routine Assessment
Project
WO_663065_TV15183_OCT2017
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
15 0603
Downstream MH
15 0602
Dir. of Survey
Downstream
Length Surveyed
303.9 ft.
Total Length
303.9 ft.
Structural Index
3
Structural Quick
4131
Structural Rating
9
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 15 0603 to 15 0602
MH: 15 0603MH: 15 0602downstream0 ft. AMH - Upstream Manhole, Survey Begins - 15 06030 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area6 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"18.2 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"54.1 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"80.9 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"95.4 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"114.9 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES124.4 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"158.4 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"159.6 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES182.3 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"210.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES217.7 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"247.3 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"263.5 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: NO, 6"303.9 ft. AMH - Downstream Manhole, Survey Ends - 15 0602

Observation photos (3)

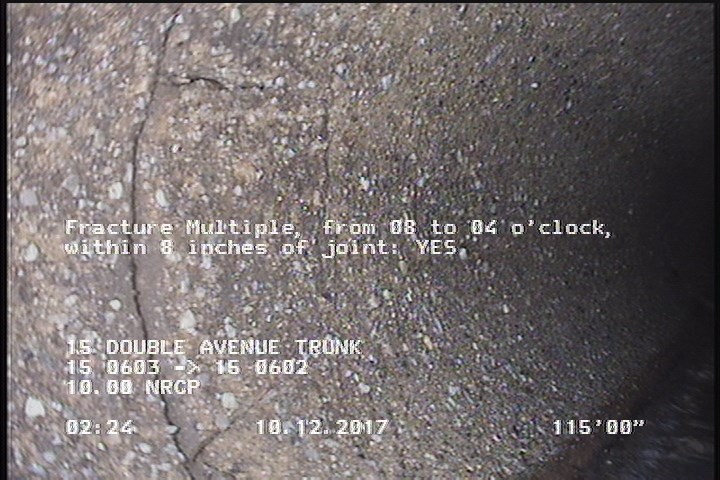

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    114.9 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

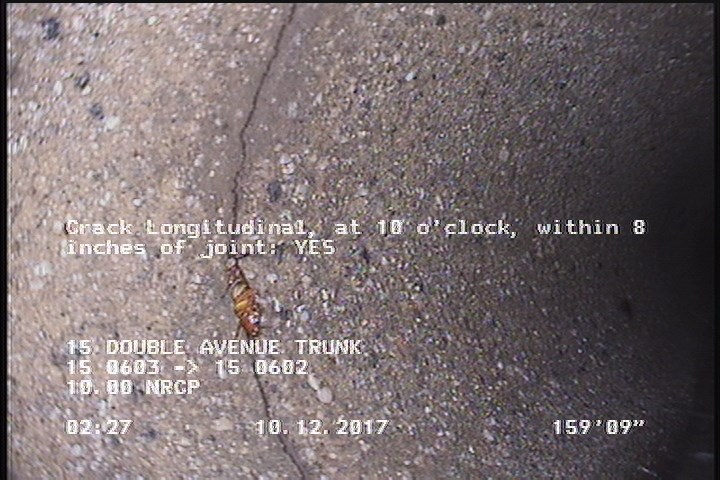

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    159.6 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

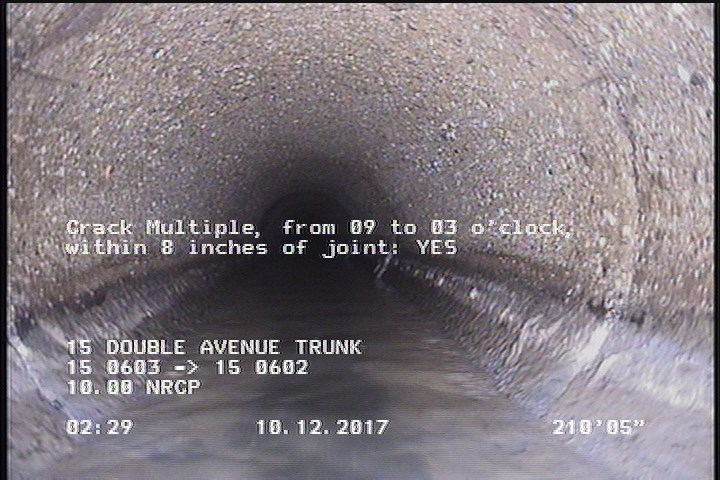

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    210.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

All inspections of P12535Work order 663065

Observations (18)

DistanceCodeObservation
124.4TF—
217.7TF—
210.3CM—
95.4TB—
80.9TFC—
18.2TF—
54.1TF—
158.4TF—
159.6CL—
6TFC—
182.3TF—
303.9AMH15 0602
0AMH15 0603
114.9FM—
0MWM—
247.3TF—
0MWL—
263.5TB—

Properties (4)

additional_info
SC353079
custom_field_two
4
customer
LACSD
datetime
2017-10-12T02:13:20-07:00
