Wastewater/Activity/PacpInspection/1.0Oct 13, 2017, 05:16 AM
15 0608_15 0607A_12102017_222018.mp4
- Date
- 10/12/2017
- W/O
- 663065
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00601
- PipeID
- P26432
- Time
- 10:16 PM
- Certificate
- 07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4829
- Sewer Name
- 15 DOUBLE AVENUE TRUNK
- City
- TEMPLE CITY, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_663065_TV15183_OCT2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 15 0608
- Downstream MH
- 15 0607A
- Dir. of Survey
- Downstream
- Length Surveyed
- 146.6 ft.
- Total Length
- 146.6 ft.
- Structural Index
- 4
- Structural Quick
- 4232
- Structural Rating
- 14
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (4)

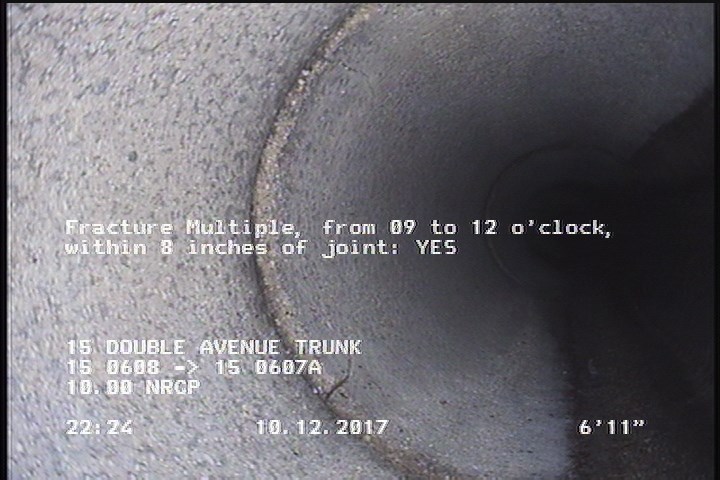

6.9 ft. - Fracture Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES

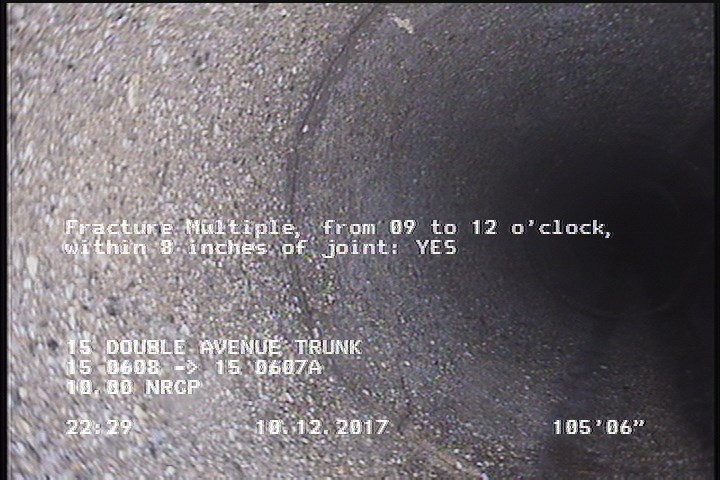

105.5 ft. - Fracture Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES

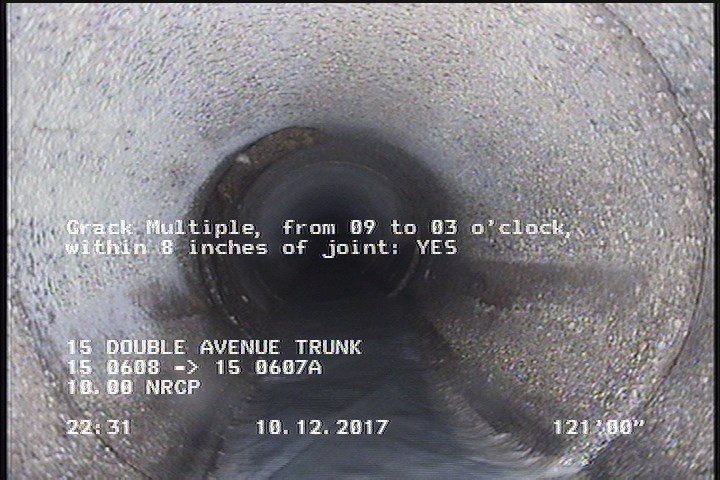

120.9 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

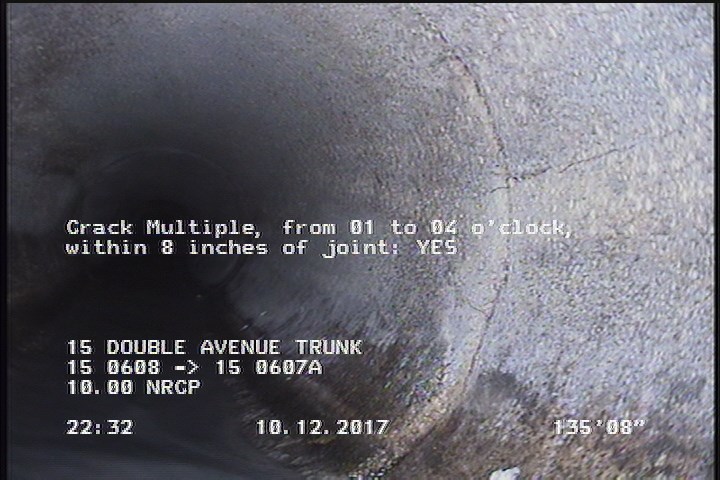

135.5 ft. - Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 146.6 | AMH | 15 0607A |
| 50.2 | TF | — |
| 105.5 | FM | — |
| 146.6 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 6.9 | FM | — |
| 98.4 | TF | — |
| 123.4 | TF | — |
| 14.3 | TF | — |
| 0 | MWL | — |
| 104.2 | TFC | — |
| 0 | MWM | — |
| 120.9 | CM | — |
| 135.5 | CM | — |
| 0 | AMH | 15 0608 |
Properties (4)
- additional_info
- SC353080
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-10-12T22:16:30-07:00
