Wastewater/Activity/PacpInspection/1.0Feb 7, 2018, 11:53 AM
F 0170_ F0167_14022018_120955.mp4
- Date
- 02/07/2018
- W/O
- 684720
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00044
- PipeID
- P10312
- Time
- 3:53 AM
- Certificate
- U-75-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5311
- Sewer Name
- F JOINT OUTFALL F - UNIT 7B
- City
- NORWALK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 37A
- Purpose
- Routine Assessment
- Project
- WO_684720_TV18093_FEB2018
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Upstream MH
- F 0170
- Downstream MH
- F0167
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 5
- Structural Quick
- 5100
- Structural Rating
- 5
- O&M Index
- 3
- O&M Quick
- 5131
- O&M Rating
- 10
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (3)
2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES
2 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES

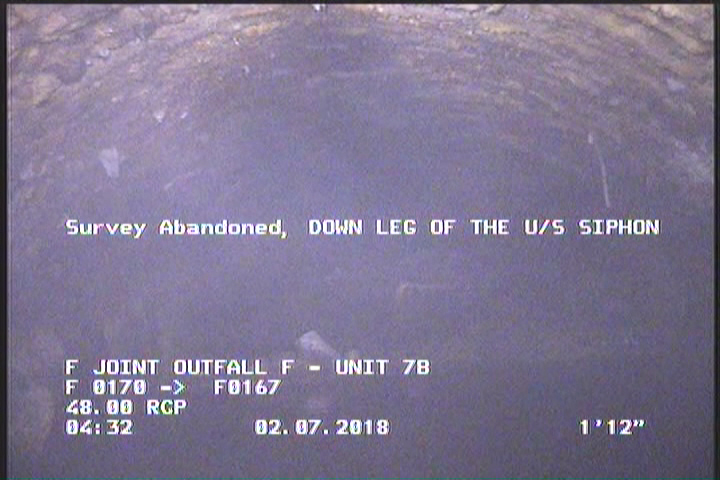

2.1 ft. - Survey Abandoned - DOWN LEG OF THE U/S SIPHON
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 2 | MGO | MAG COAT |
| 2 | DAGS | — |
| 2 | SRV | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | AMH | F 0170 |
| 2 | DSZ | — |
| 2.1 | MSA | DOWN LEG OF THE U/S SIPHON |
Properties (4)
- additional_info
- SC346495
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-02-07T03:53:28-08:00
