Wastewater/Activity/PacpInspection/1.0Jun 20, 2016, 10:22 AM
A 0307_A 0306 _20062016_035210.mp4
- Date
- 06/20/2016
- W/O
- 574385
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00325
- PipeID
- P08217
- Time
- 3:22 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3535
- Sewer Name
- A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
- City
- EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 29
- Purpose
- Routine Assessment
- Project
- WO_574385_TV15129_JUNE2016
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 63 in.
- Width
- 63 in.
- Upstream MH
- A 0307
- Downstream MH
- A 0306
- Dir. of Survey
- Downstream
- Length Surveyed
- 160.7 ft.
- Total Length
- 160.7 ft.
- Structural Index
- 3
- Structural Quick
- 3E2E
- Structural Rating
- 160
- O&M Index
- 2
- O&M Quick
- 412E
- O&M Rating
- 68
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 228
Observation photos (5)

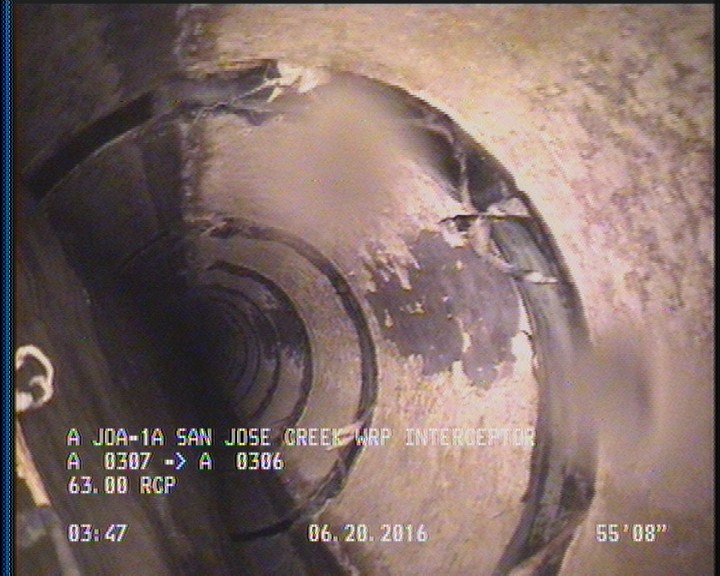

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

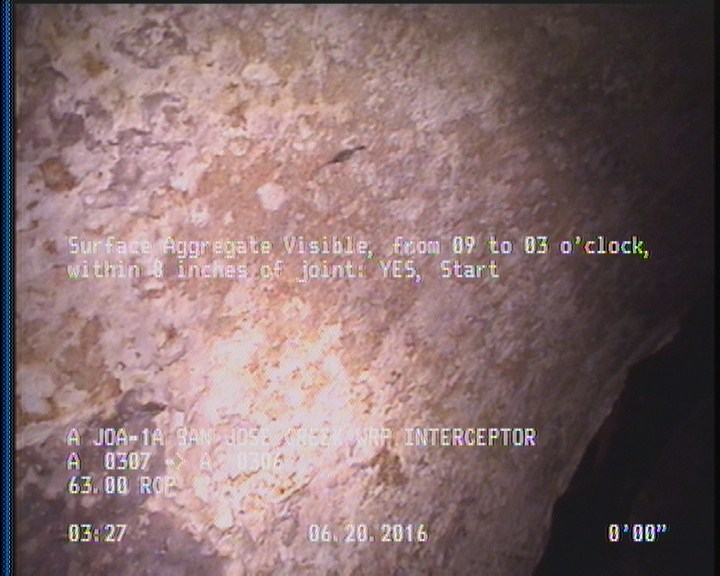

2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

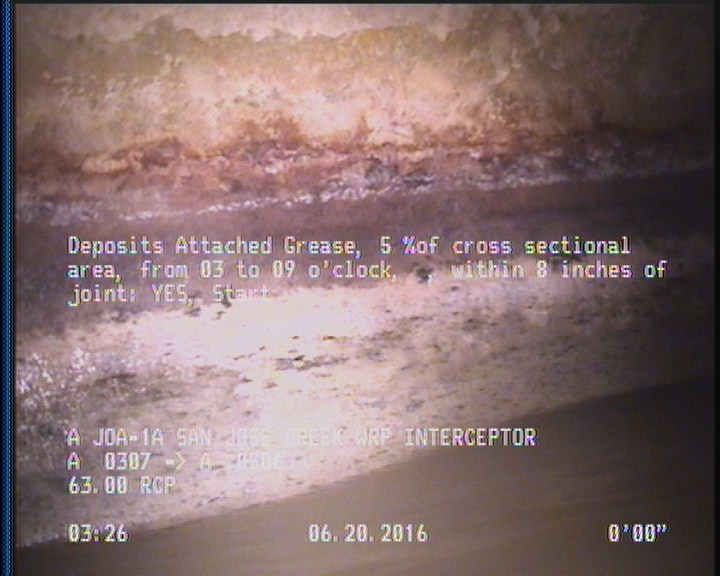

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

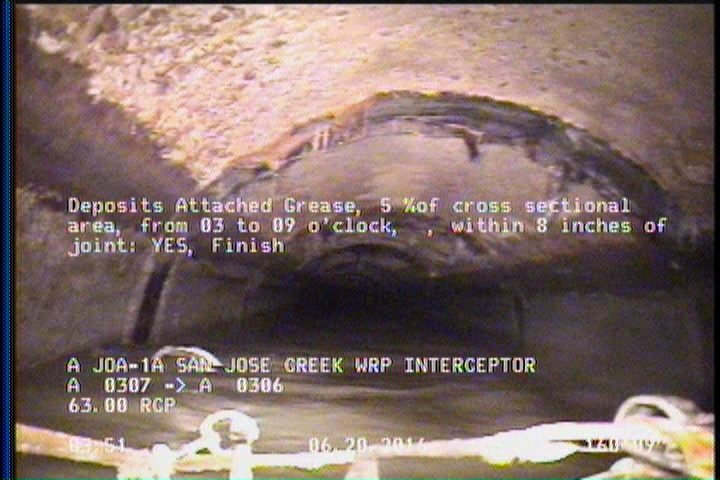

160.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish

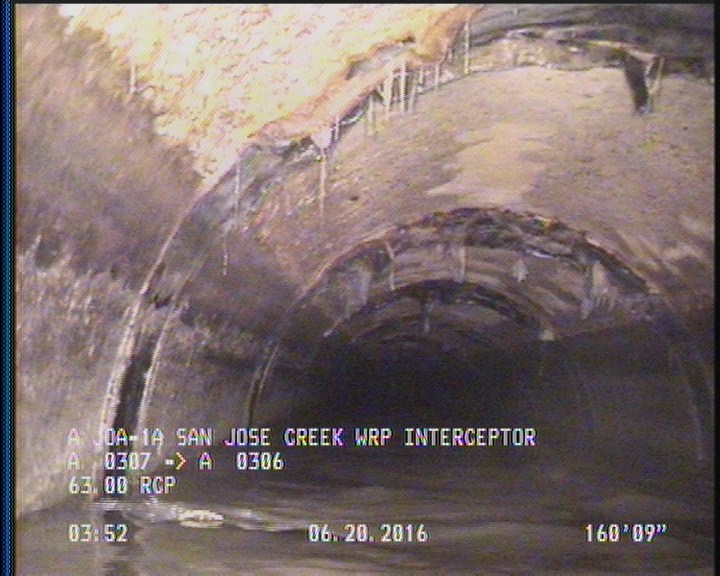

160.7 ft. - Survey Abandoned - VIEW OF DOWNLEG OF U/S SIPHON.
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 2 | SSS | — |
| 160.7 | DAGS | — |
| 160.7 | MSA | VIEW OF DOWNLEG OF U/S SIPHON. |
| 0 | AMH | A 0307 |
| 0 | MWL | — |
| 2 | SAV | — |
| 160.7 | SAV | — |
| 0 | MWM | — |
| 2 | DAGS | — |
| 160.7 | SSS | — |
Properties (5)
- additional_info
- SC305769
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-06-20T03:22:10-07:00
- year_laid
- 28972
