Wastewater/Activity/PacpInspection/1.0May 19, 2016, 09:37 AM
A 1207_A 1206_19052016_023805.mp4
- Date
- 05/19/2016
- W/O
- 573471
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00973
- PipeID
- P02855
- Time
- 2:37 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3355
- Sewer Name
- A JOINT OUTFALL A - UNIT 9
- City
- COMMERCE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_573471_JUNE2016
- Sewer Type
- GRAVITY
- Material
- RCP-CTL
- Shape
- Circular
- Height
- 39 in.
- Upstream MH
- A 1207
- Downstream MH
- A 1206
- Dir. of Survey
- Downstream
- Length Surveyed
- 7.2 ft.
- Total Length
- 7.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 3121
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

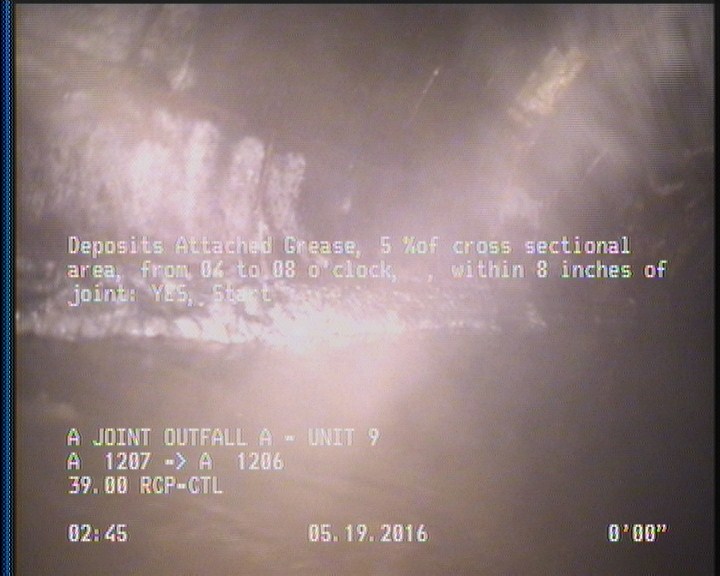

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

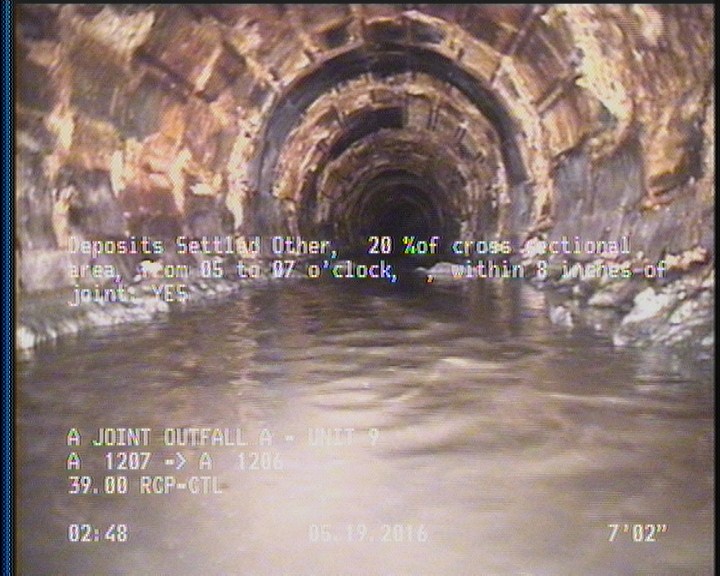

6 ft. - Deposits Settled Other, 20 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES

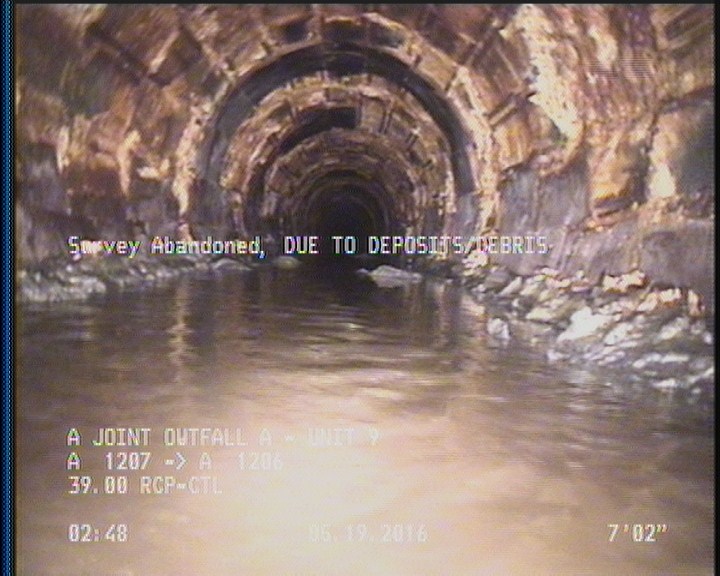

7.2 ft. - Survey Abandoned - DUE TO DEPOSITS/DEBRIS
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 7.2 | MSA | DUE TO DEPOSITS/DEBRIS |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | AMH | A 1207 |
| 6 | DSZ | — |
| 2 | DAGS | — |
Properties (3)
- additional_info
- SC305635
- customer
- LACSD
- datetime
- 2016-05-19T02:37:45-07:00
