Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 13, 2016, 09:33 AM

  • 15 066715 0666District 15_061316SC305758023337.mp4

Date
06/13/2016
W/O
574626
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00602
PipeID
P12559
Time
2:33 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3525
Sewer Name
15 EL MONTE AVENUE TRUNK
City
TEMPLE CITY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
11
Purpose
Routine Assessment
Project
WO_574626_TV15208_JUNE2016
Sewer Type
GRAVITY
Material
NRCP
Shape
Circular
Height
12 in.
Upstream MH
15 0667
Downstream MH
15 0666
Dir. of Survey
Downstream
Length Surveyed
298.1 ft.
Total Length
298.1 ft.
Structural Index
3
Structural Quick
413K
Structural Rating
297
O&M Index
2
O&M Quick
2K00
O&M Rating
118
Overall Index
2
Overall Quick
—
Overall Rating
415
Pipe schematic from manhole 15 0667 to 15 0666
MH: 15 0667MH: 15 0666downstream0 ft. AMH - Upstream Manhole, Survey Begins - 15 06670 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK0 ft. MGO - General Observation - COCKROACHES IN MANHOLE2 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start5.9 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start38.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"69.5 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"93.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"127.1 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"184.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"196.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"252.9 ft. FM - Fracture Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES296.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish296.3 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish296.3 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish296.3 ft. MGO - General Observation - COCKROACHES IN MANHOLE298.1 ft. AMH - Downstream Manhole, Survey Ends - 15 0666298.1 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK298.1 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK

Observation photos (6)

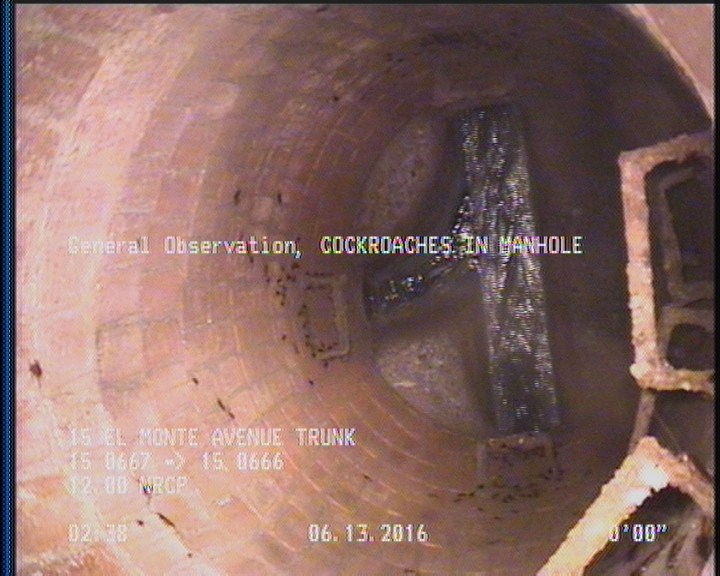

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

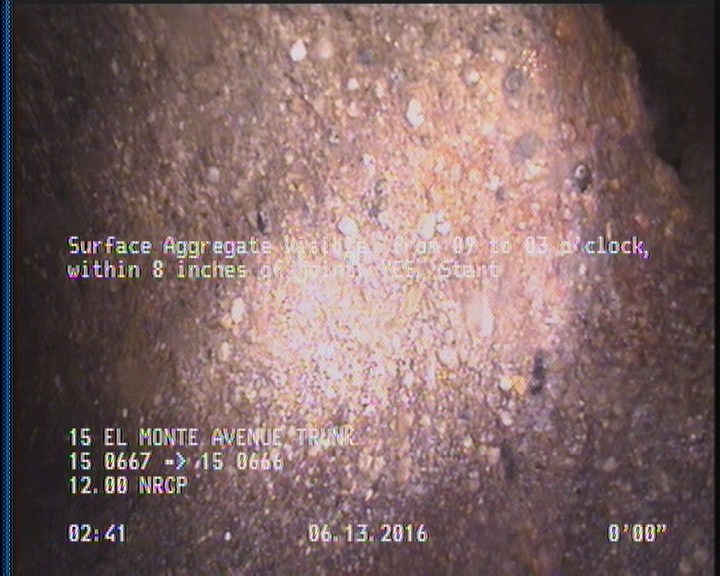

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

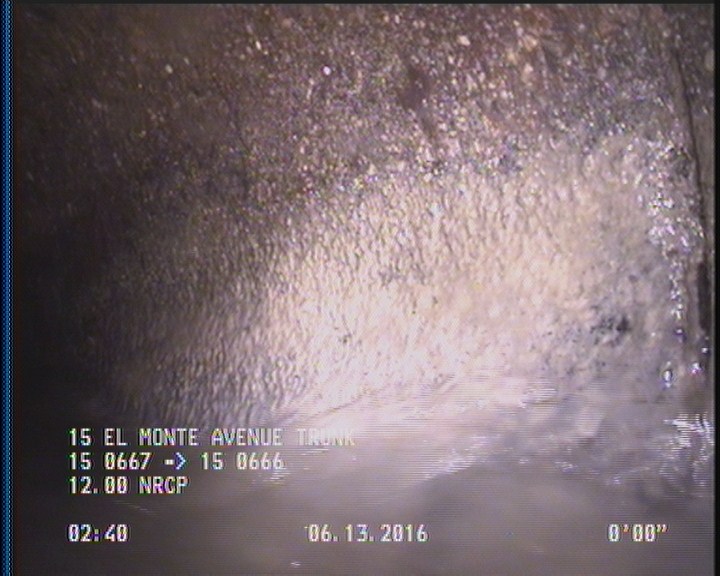

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

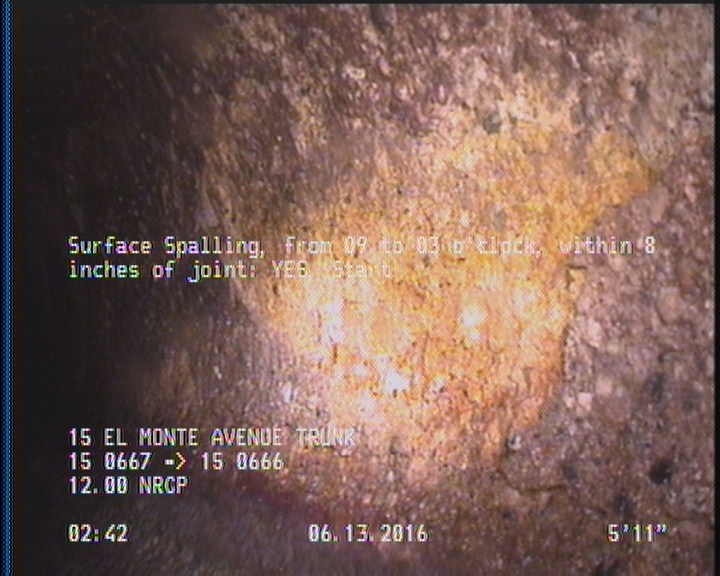

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    5.9 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

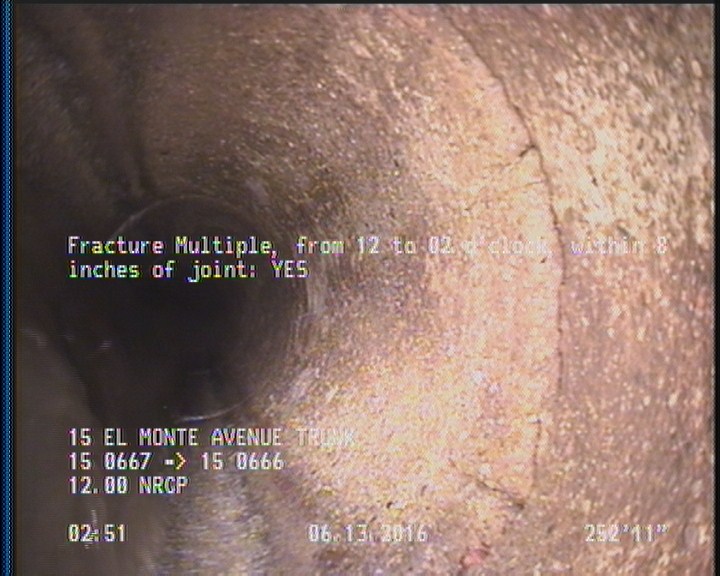

  • Fracture Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES

    252.9 ft. - Fracture Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES

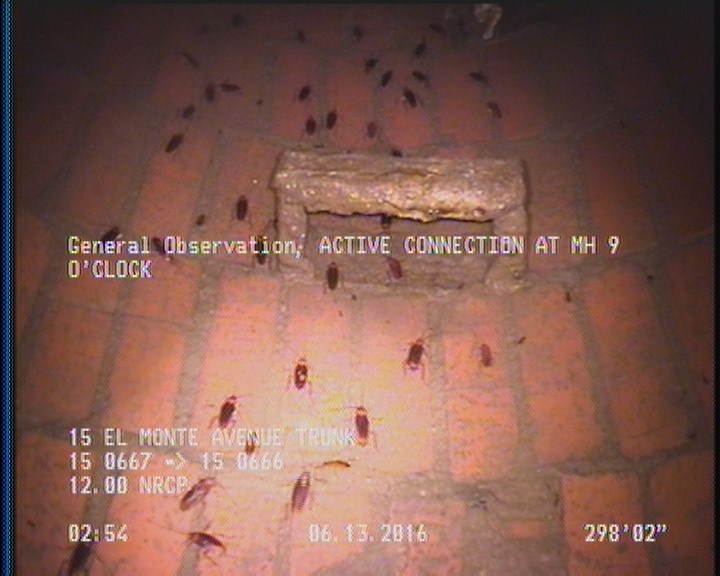

  • General Observation - COCKROACHES IN MANHOLE

    296.3 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P12559Work order 574626

Observations (22)

DistanceCodeObservation
2SAV—
298.1AMH15 0666
252.9FM—
2DAGS—
196.5TFC—
0AMH15 0667
93.2TFC—
127.1TBA—
5.9SSS—
296.3DAGS—
38.6TFC—
296.3SAV—
0MWL—
0MWM—
298.1MGOACTIVE CONNECTION AT MH 3 O'CLOCK
184.5TFA—
296.3SSS—
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
298.1MGOACTIVE CONNECTION AT MH 9 O'CLOCK
69.5TB—
296.3MGOCOCKROACHES IN MANHOLE
0MGOCOCKROACHES IN MANHOLE

Properties (4)

additional_info
SC305758
custom_field_two
3
customer
LACSD
datetime
2016-06-13T02:33:17-07:00
