Wastewater/Activity/PacpInspection/1.0Jun 14, 2016, 07:33 AM
15 0724_15 0723_14062016_003336.mp4
- Date
- 06/14/2016
- W/O
- 574407
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00616
- PipeID
- P12617
- Time
- 12:33 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3528
- Sewer Name
- 15 MONROVIA OUTFALL TRUNK
- City
- MONROVIA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_574407_TV15131_JUNE2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 15 0724
- Downstream MH
- 15 0723
- Dir. of Survey
- Downstream
- Length Surveyed
- 166.2 ft.
- Total Length
- 166.2 ft.
- Structural Index
- 3
- Structural Quick
- 3E00
- Structural Rating
- 96
- O&M Index
- 2
- O&M Quick
- 2E00
- O&M Rating
- 64
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 160
Observation photos (2)

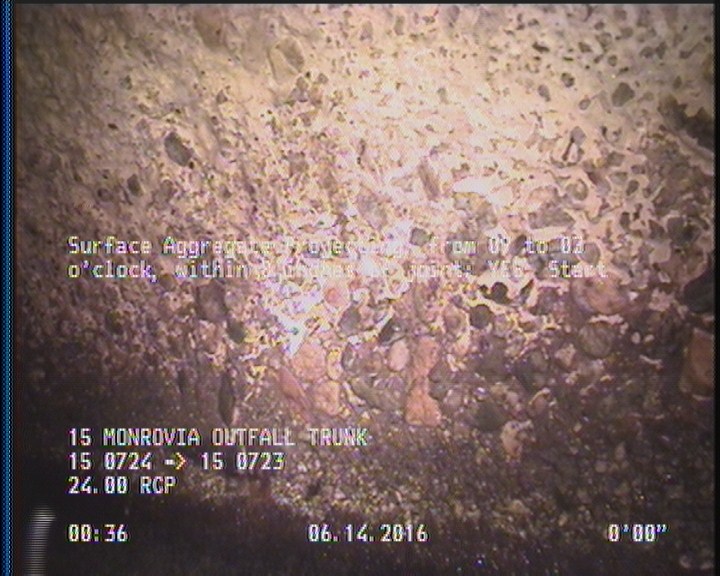

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 2 | SAP | — |
| 163.9 | SAP | — |
| 2 | DAGS | — |
| 11.1 | MGO | MAG COATING 60% |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 163.9 | DAGS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 166.2 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | AMH | 15 0724 |
| 166.2 | AMH | 15 0723 |
Properties (4)
- additional_info
- SC305761
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-06-14T00:33:20-07:00
