Wastewater/Activity/PacpInspection/1.0Feb 20, 2018, 06:48 PM
15 0919_BLANK_2202018_111446.mp4
- Date
- 02/20/2018
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00619
- PipeID
- P21475
- Time
- 10:48 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7635
- Sewer Name
- 15 PECK ROAD P.P. INFLUENT SEWER
- City
- EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- 20180220DF_PECK_RD_PP_INFLUENT_SWR
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 15 0919
- Downstream MH
- BLANK
- Dir. of Survey
- Downstream
- Length Surveyed
- 7 ft.
- Total Length
- 7 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (4)

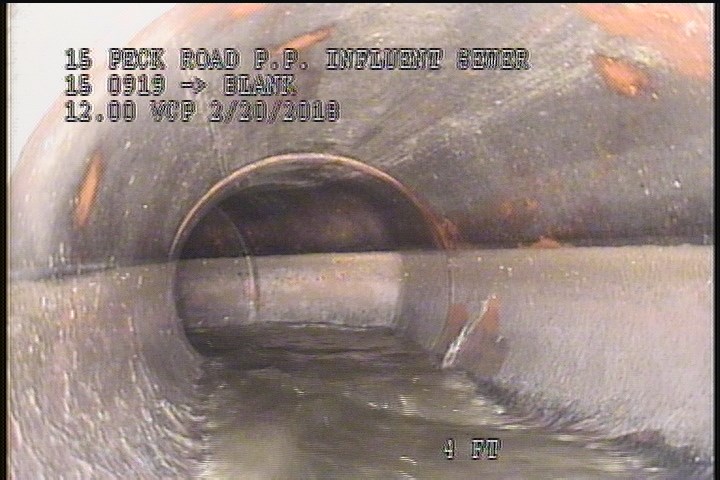

0 ft. - Upstream Manhole, Survey Begins - 11:13 AM

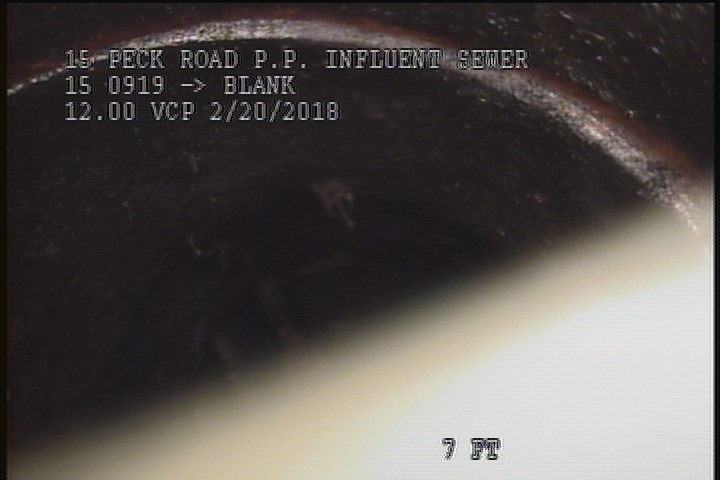

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

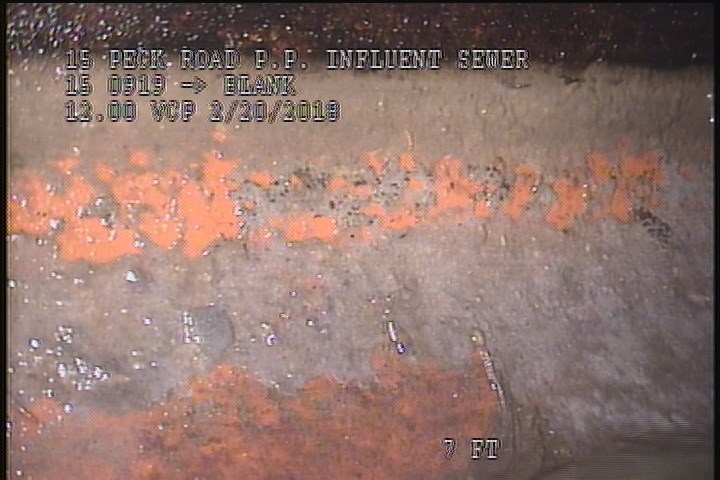

7 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

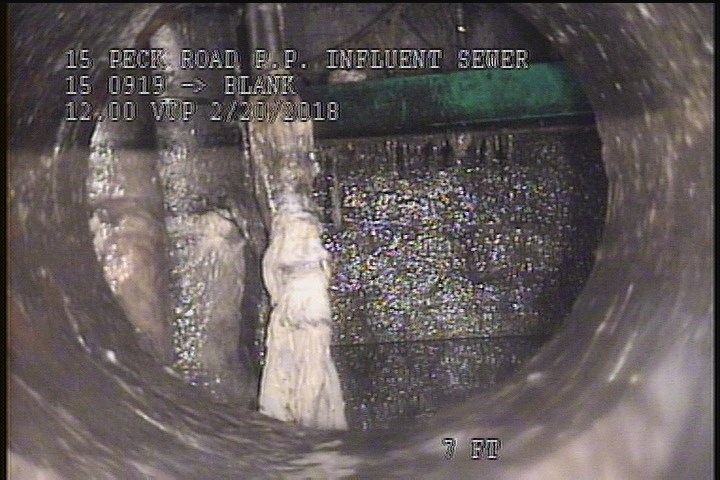

7 ft. - General Photograph
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 2 | SSS | — |
| 7 | SSS | — |
| 0.1 | MWM | — |
| 0 | AMH | 11:13 AM |
| 7 | MGP | — |
| 0.1 | MWL | — |
| 7 | MSA | DROP MH/PIPE BENDS |
Properties (2)
- customer
- LACSD
- datetime
- 2018-02-20T10:48:40-08:00
