Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 24, 2016, 05:48 AM

  • 14 0124_14 0123A_08232016_224921.mp4

Date
08/23/2016
W/O
579900
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00571
PipeID
P26493
Time
10:48 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3644
Sewer Name
14 DISTRICT #14 OUTFALL TRUNK
City
LANCASTER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
10
Purpose
Routine Assessment
Project
WO_579900_TV14007_JULY2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
14 0124
Downstream MH
14 0123
Dir. of Survey
Downstream
Length Surveyed
353.9 ft.
Total Length
353.9 ft.
Structural Index
3
Structural Quick
3A00
Structural Rating
33
O&M Index
2
O&M Quick
2]00
O&M Rating
304
Overall Index
2
Overall Quick
—
Overall Rating
337
Pipe schematic from manhole 14 0124 to 14 0123
MH: 14 0124MH: 14 0123downstream0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 14 01242 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start45.5 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"49.1 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"73.8 ft. MGO - General Observation - RUN LIST STATES MH AT 72'.115.1 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"180.4 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"191.5 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"259.2 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES262.6 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"264.6 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"267.6 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"269.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES291.8 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS303.5 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES305.8 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"310.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start351.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish351.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish351.2 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish351.2 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish353.9 ft. AMH - Downstream Manhole, Survey Ends - 14 0123, NO MH 14 0123A AT 73'.353.9 ft. MGO - General Observation - RUN LIST STATES MH AT 73'.353.9 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK

Observation photos (7)

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    259.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    269.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    303.5 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    310.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

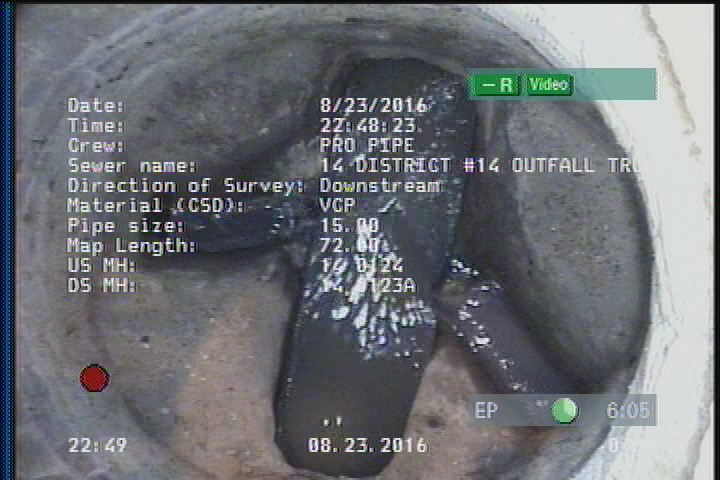

  • Downstream Manhole, Survey Ends - 14 0123, NO MH 14 0123A AT 73'.

    353.9 ft. - Downstream Manhole, Survey Ends - 14 0123, NO MH 14 0123A AT 73'.

All inspections of P26493Work order 579900

Observations (29)

DistanceCodeObservation
353.9AMH14 0123, NO MH 14 0123A AT 73'.
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
49.1TFC—
0MWL—
0MWM—
351.2DAGS—
310.3CM—
351.2CM—
115.1TBA—
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
351.2DSZ—
269.3CM—
291.8DSZDEBRIS
353.9MGORUN LIST STATES MH AT 73'.
351.2DAE—
303.5CM—
0AMH14 0124
191.5TBA—
2DAGS—
305.8TBA—
2DAE—
267.6TFC—
259.2CM—
73.8MGORUN LIST STATES MH AT 72'.
45.5TFC—
353.9MGOACTIVE CONNECTION AT MH 9 O'CLOCK
262.6TBA—
180.4TB—
264.6TFA—

Properties (4)

additional_info
SC306081
custom_field_two
3
customer
LACSD
datetime
2016-08-23T22:48:23-07:00
