Wastewater/Activity/PacpInspection/1.0Aug 24, 2016, 08:30 AM
14 0120_14 0119 _08242016_013114.mp4
- Date
- 08/24/2016
- W/O
- 579900
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00571
- PipeID
- P18150
- Time
- 1:30 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3644
- Sewer Name
- 14 DISTRICT #14 OUTFALL TRUNK
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_579900_TV14007_JULY2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 14 0120
- Downstream MH
- 14 0119
- Dir. of Survey
- Downstream
- Length Surveyed
- 100.6 ft.
- Total Length
- 100.6 ft.
- Structural Index
- 3
- Structural Quick
- 3B00
- Structural Rating
- 48
- O&M Index
- 2
- O&M Quick
- 412G
- O&M Rating
- 80
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 128
Observation photos (4)

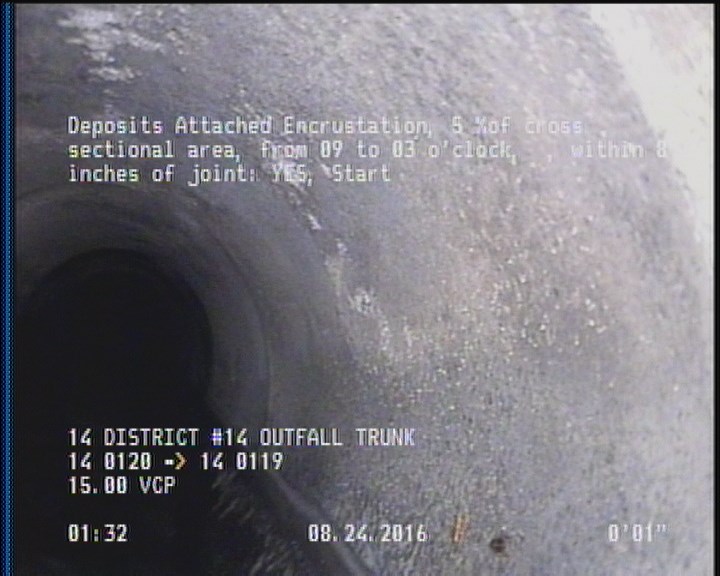

2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

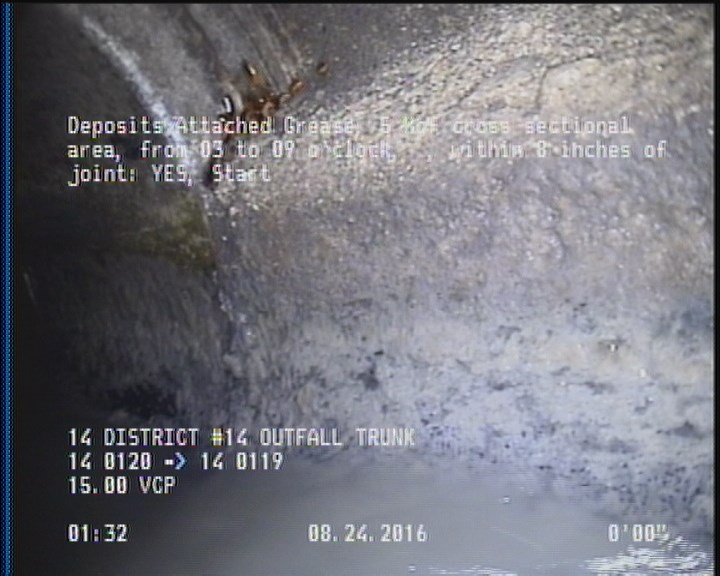

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

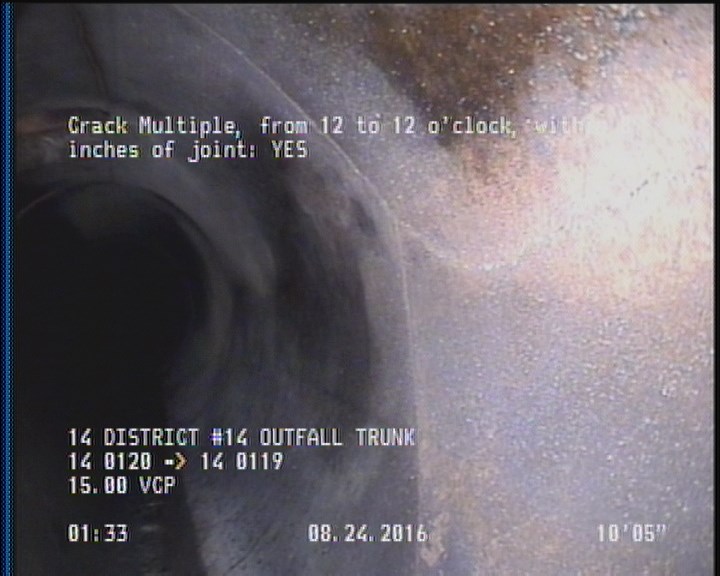

10.4 ft. - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

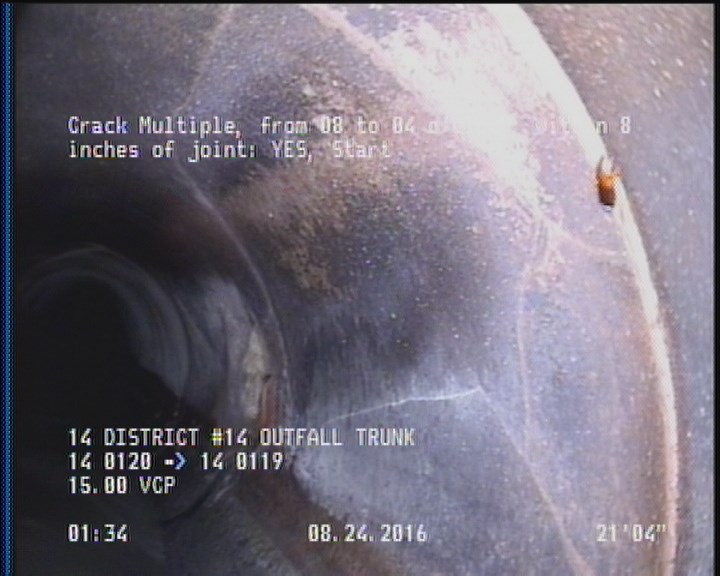

21.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAE | — |
| 100.6 | MGO | CONNECTION AT MH 4 O'CLOCK |
| 2 | DAGS | — |
| 0 | MWM | — |
| 98.6 | CM | — |
| 0 | MWL | — |
| 10.4 | CM | — |
| 13.8 | TBA | — |
| 93.1 | TBA | — |
| 24.9 | TBA | — |
| 100.6 | AMH | 14 0119 |
| 98.6 | DAE | — |
| 0 | AMH | 14 0120 |
| 98.6 | DAGS | — |
| 21.4 | CM | — |
Properties (4)
- additional_info
- SC306081
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-08-24T01:30:30-07:00
