Wastewater/Activity/PacpInspection/1.0Aug 24, 2016, 09:45 AM
14 0116A_14 0116 _08242016_024635.mp4
- Date
- 08/24/2016
- W/O
- 579900
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00571
- PipeID
- P18147
- Time
- 2:45 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3644
- Sewer Name
- 14 DISTRICT #14 OUTFALL TRUNK
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_579900_TV14007_JULY2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 14 0116A
- Downstream MH
- 14 0116
- Dir. of Survey
- Downstream
- Length Surveyed
- 12.3 ft.
- Total Length
- 12.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 4124
- O&M Rating
- 12
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (2)

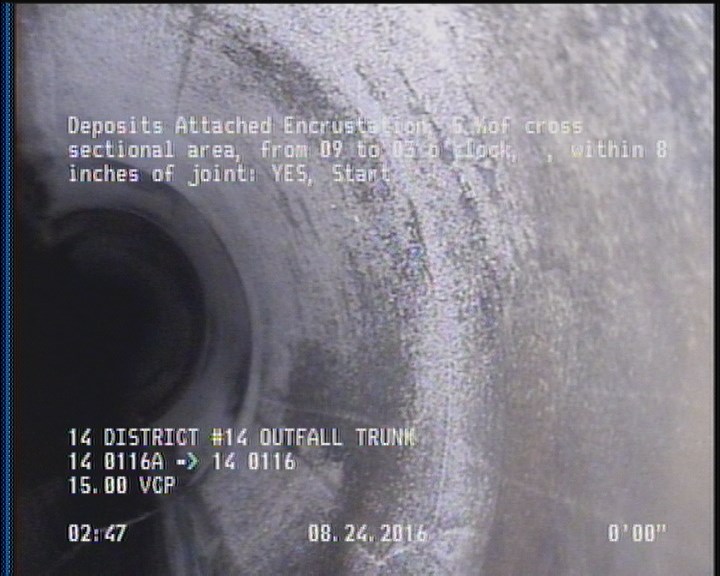

2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

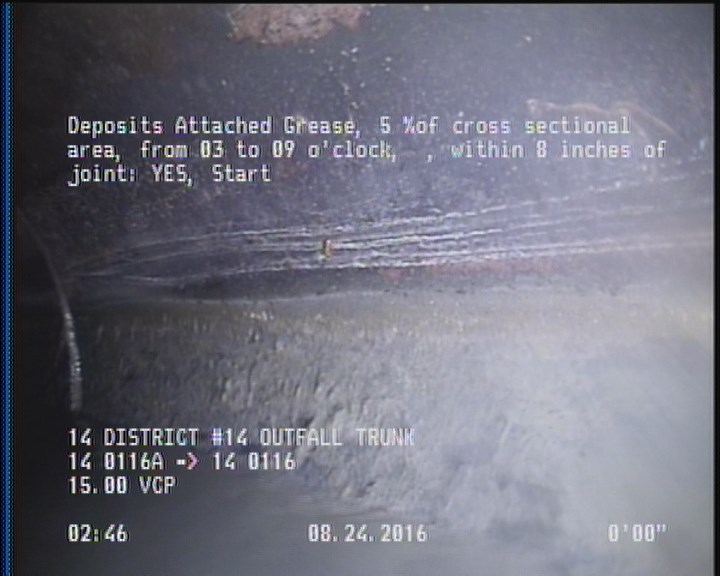

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 14 0116A |
| 0 | MWL | — |
| 10.8 | DAGS | — |
| 2 | DAE | — |
| 0 | MWM | — |
| 10.8 | DAE | — |
| 2 | DAGS | — |
| 12.3 | AMH | 14 0116 |
Properties (4)
- additional_info
- SC306081
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-08-24T02:45:34-07:00
