Wastewater/Activity/PacpInspection/1.0Sep 16, 2016, 08:53 AM
14 0128_14 0127 _09162016_015450.mp4
- Date
- 09/16/2016
- W/O
- 579900
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00571
- PipeID
- P18158
- Time
- 1:53 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3761
- Sewer Name
- 14 DISTRICT #14 OUTFALL TRUNK
- City
- LANCASTER
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_579900_TV14007_JULY2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 14 0128
- Downstream MH
- 14 0127
- Dir. of Survey
- Downstream
- Length Surveyed
- 104.3 ft.
- Total Length
- 104.3 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 412F
- O&M Rating
- 78
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 81
Observation photos (3)

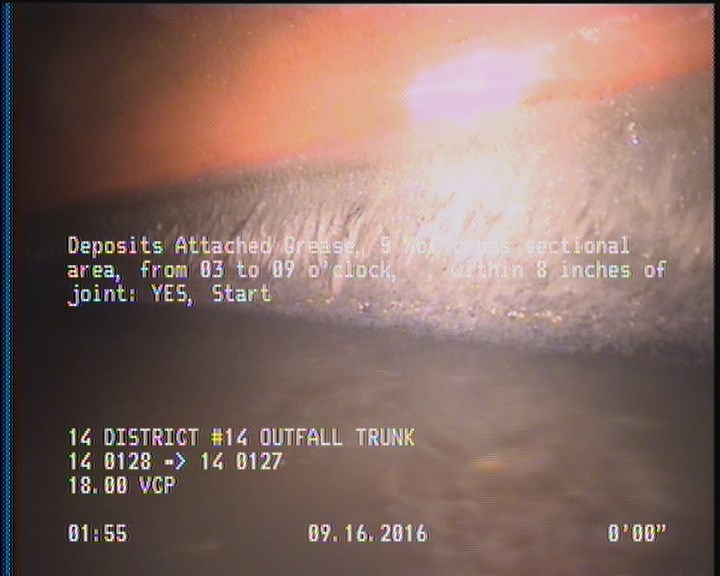

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

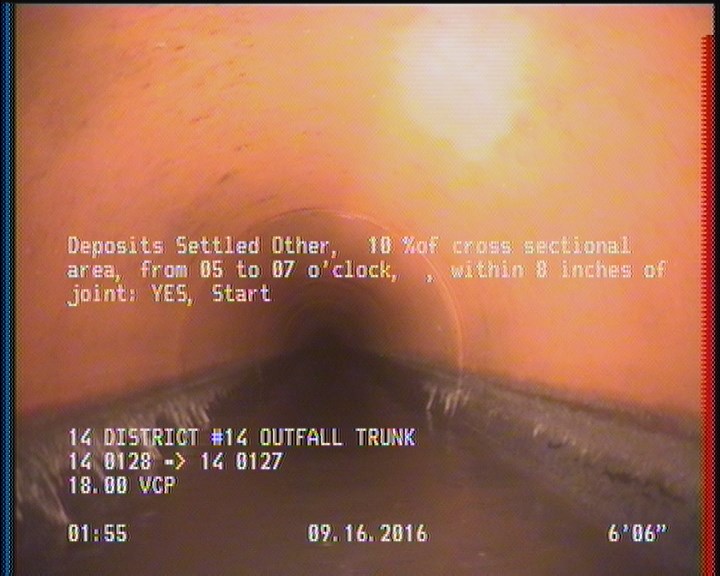

6.5 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

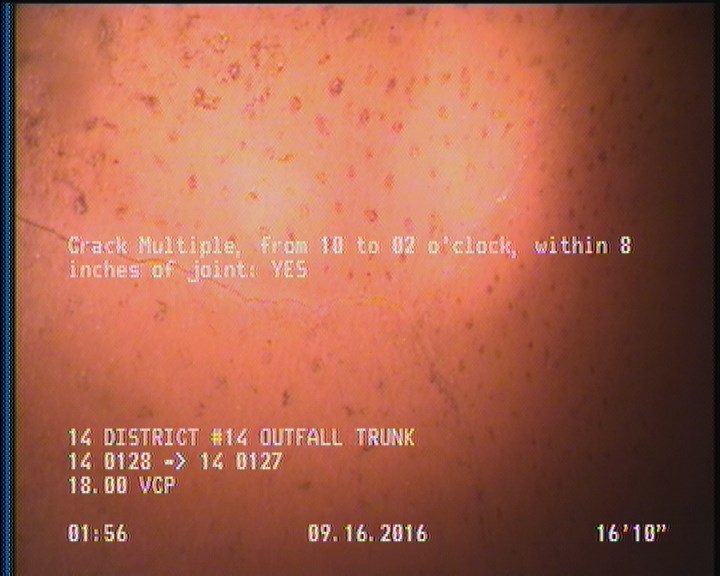

16.8 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 0 | AMH | 14 0128 |
| 103.3 | DAGS | — |
| 93.7 | DSZ | — |
| 104.3 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 6.5 | DSZ | — |
| 0 | MWL | — |
| 104.3 | AMH | 14 0127 |
| 16.8 | CM | — |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC302754
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-16T01:53:56-07:00
