Wastewater/Activity/PacpInspection/1.0Sep 19, 2016, 12:27 PM
14 0730_14 1006_09192016_052832.mp4
- Date
- 09/19/2016
- W/O
- 579900
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00571
- PipeID
- P25745
- Time
- 5:27 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3762
- Sewer Name
- 14 DISTRICT #14 OUTFALL TRUNK
- City
- LANCASTER
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_579900_TV14007_JULY2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 14 0730
- Downstream MH
- 14 1006
- Dir. of Survey
- Downstream
- Length Surveyed
- 12.3 ft.
- Total Length
- 12.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (1)

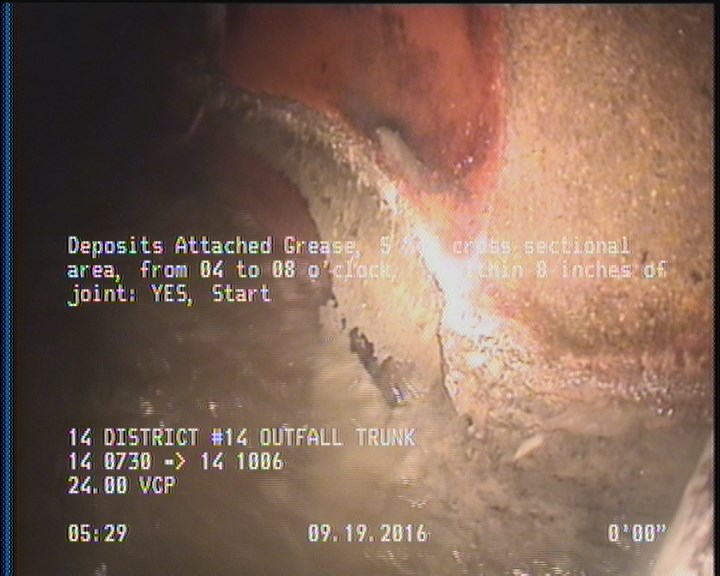

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 0 | MWL | — |
| 12.3 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 12.3 | DAGS | — |
| 0 | AMH | 14 0730 |
| 0 | MWM | — |
| 12.3 | AMH | 14 1006 |
Properties (4)
- additional_info
- SC302755
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-19T05:27:33-07:00
