Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 24, 2016, 06:15 AM

  • 14 0123_14 0122 _08232016_231640.mp4

Date
08/23/2016
W/O
579900
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00571
PipeID
P18153
Time
11:15 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3644
Sewer Name
14 DISTRICT #14 OUTFALL TRUNK
City
LANCASTER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
10
Purpose
Routine Assessment
Project
WO_579900_TV14007_JULY2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
14 0123
Downstream MH
14 0122
Dir. of Survey
Downstream
Length Surveyed
422.4 ft.
Total Length
422.4 ft.
Structural Index
3
Structural Quick
3L00
Structural Rating
198
O&M Index
2
O&M Quick
312a
O&M Rating
339
Overall Index
2
Overall Quick
—
Overall Rating
537
Pipe schematic from manhole 14 0123 to 14 0122
MH: 14 0123MH: 14 0122downstream0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 14 01230 ft. MWL - Water Level, 15 %of cross sectional area2 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start14.5 ft. TBA - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"67.9 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"89.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start116.2 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"119.2 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"189.5 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"198 ft. TBD - Tap Break-In Defective, at 10 o'clock, -, , within 8 inches of joint: NO, 6" - ROOTS251 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"293.2 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: YES, 6"296.6 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"318 ft. TBA - Tap Break-In Active, at 09 o'clock, -, within 8 inches of joint: YES, 6"377.9 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"385.7 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"420.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish420.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish420.4 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish422.4 ft. AMH - Downstream Manhole, Survey Ends - 14 0122

Observation photos (4)

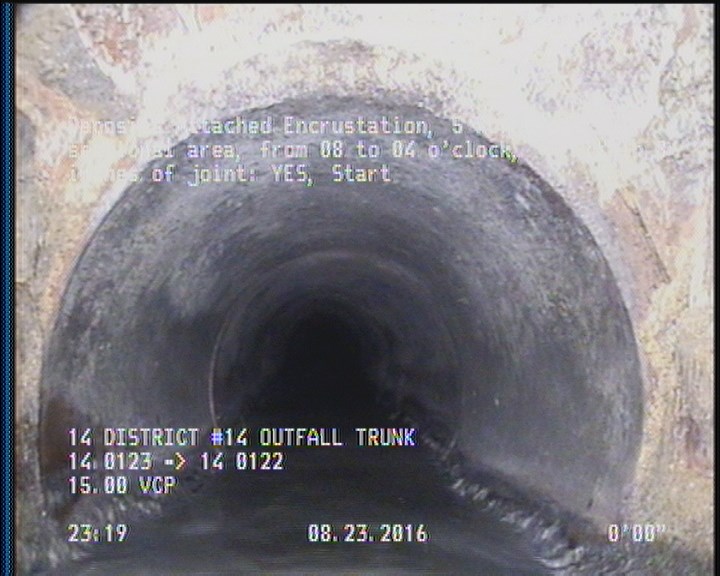

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

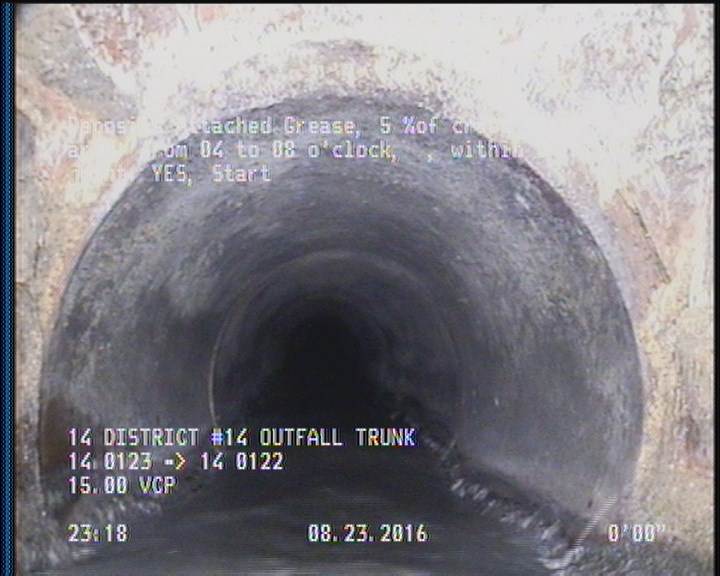

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

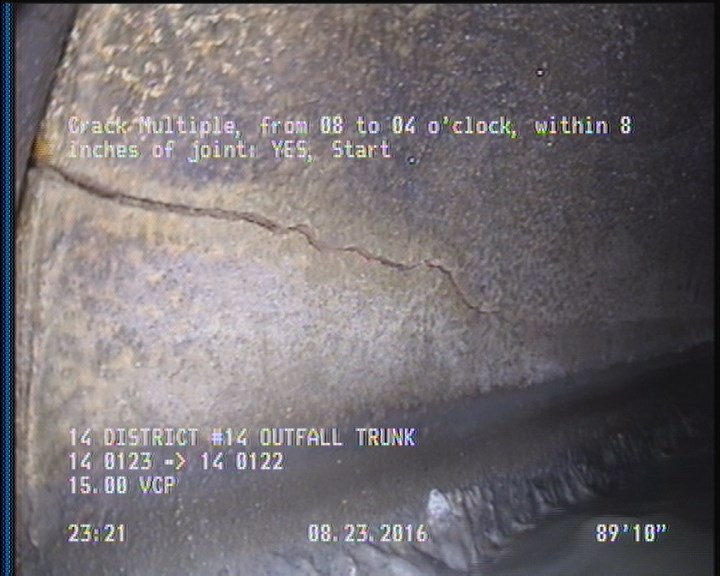

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    89.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

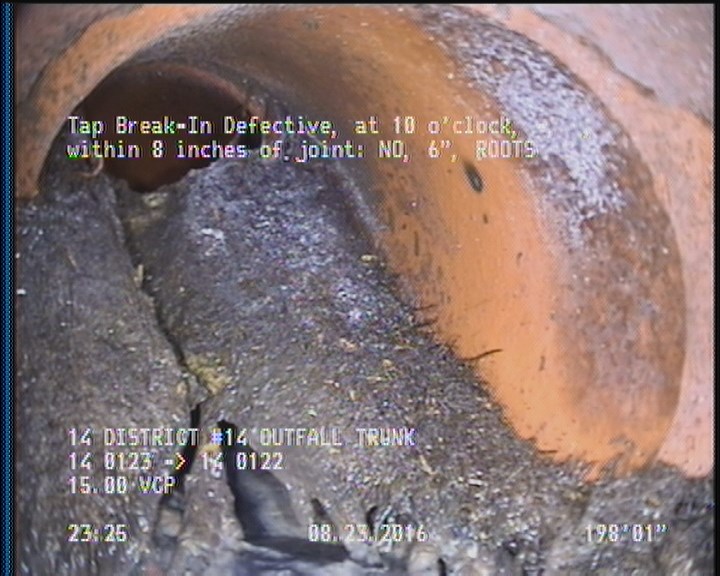

  • Tap Break-In Defective, at 10 o'clock, -, , within 8 inches of joint: NO, 6" - ROOTS

    198 ft. - Tap Break-In Defective, at 10 o'clock, -, , within 8 inches of joint: NO, 6" - ROOTS

All inspections of P18153Work order 579900

Observations (23)

DistanceCodeObservation
67.9TBA—
422.4AMH14 0122
420.4CM—
251TB—
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
2DAE—
318TBA—
14.5TBA—
198TBDROOTS
0MWM—
385.7TB—
116.2TFA—
296.6TF—
0AMH14 0123
89.8CM—
2DAGS—
0MWL—
377.9TBA—
119.2TFA—
420.4DAGS—
420.4DAE—
189.5TBA—
293.2TFA—

Properties (4)

additional_info
SC306081
custom_field_two
3
customer
LACSD
datetime
2016-08-23T23:15:59-07:00
