Wastewater/Activity/PacpInspection/1.0Sep 16, 2016, 09:00 AM
14 0127_14 0126 _09162016_020640.mp4
- Date
- 09/16/2016
- W/O
- 579900
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00571
- PipeID
- P18157
- Time
- 2:00 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3761
- Sewer Name
- 14 DISTRICT #14 OUTFALL TRUNK
- City
- LANCASTER
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_579900_TV14007_JULY2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 14 0127
- Downstream MH
- 14 0126
- Dir. of Survey
- Downstream
- Length Surveyed
- 221.5 ft.
- Total Length
- 221.5 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 412H
- O&M Rating
- 98
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 101
Observation photos (4)

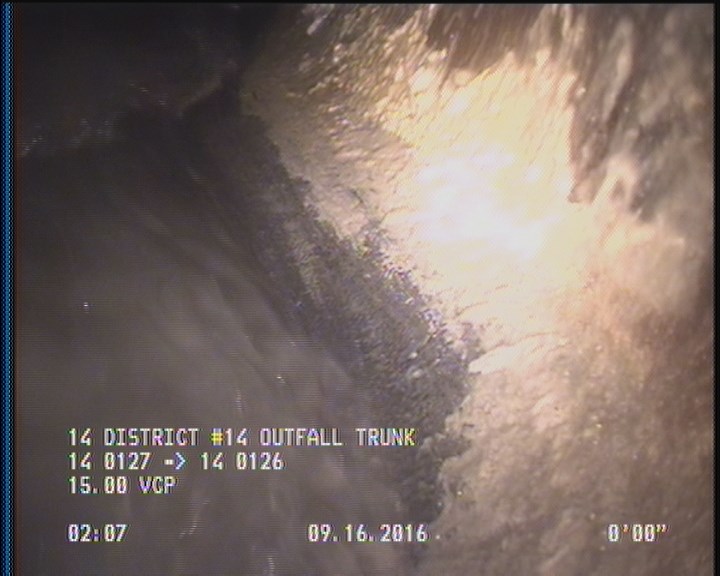

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

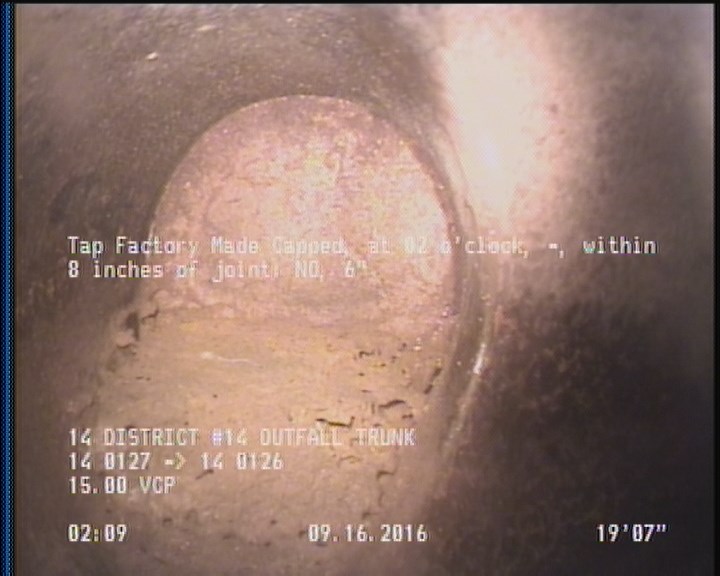

19.6 ft. - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"

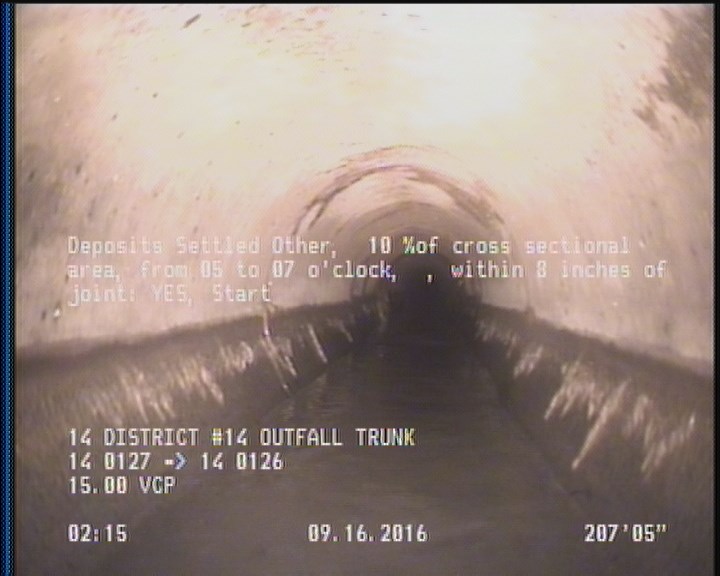

207.4 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

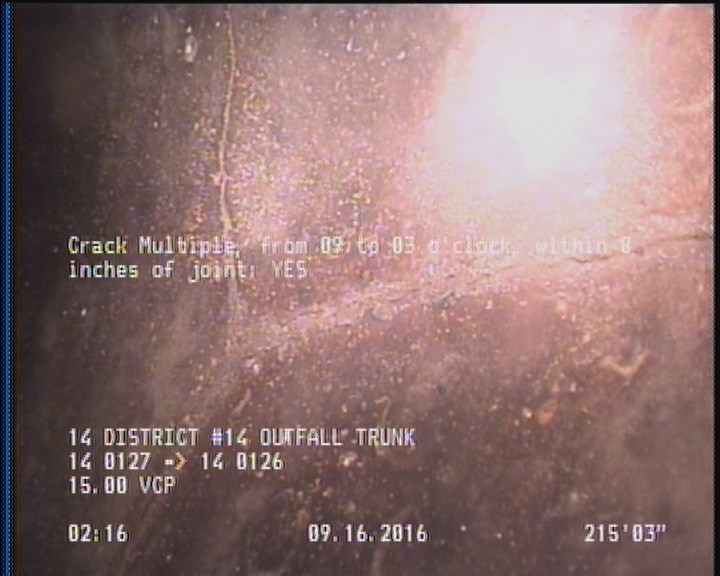

215.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 207.4 | DSZ | — |
| 121.4 | TBA | — |
| 16.3 | TFC | — |
| 0 | MWM | — |
| 0 | AMH | 14 0127 |
| 220 | DAGS | — |
| 198.8 | TFC | — |
| 215.3 | CM | — |
| 220 | DSZ | — |
| 221.5 | AMH | 14 0126 |
| 30.3 | TBA | — |
| 19.6 | TFC | — |
| 0 | MWL | — |
| 201.7 | TFC | — |
Properties (4)
- additional_info
- SC302754
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-16T02:00:37-07:00
