Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 15, 2018, 05:22 PM

  • 08 0371_08 0370_2152018_092408.mp4

Date
02/15/2018
W/O
0690350
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00003
PipeID
P00424
Time
9:22 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7633
Sewer Name
08 DAVIDSON CITY TRUNK, SECTS 1,2,&3
City
CARSON
Loc. details
Alley
Location Code
H
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
12
Purpose
Routine Assessment
Project
20180215DF_DAVIDSON_CITY_TR_SECTS_1_2_3
Material
NRCP
Shape
Circular
Height
18 in.
Upstream MH
08 0371
Downstream MH
08 0372
Dir. of Survey
Upstream
Length Surveyed
138.9 ft.
Total Length
138.9 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
1
O&M Quick
1200
O&M Rating
2
Overall Index
1
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 08 0371 to 08 0372
MH: 08 0371MH: 08 0372upstream0 ft. AMH - Upstream Manhole, Survey Ends - 9:36 AM0.9 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. CAPPED2.8 ft. RFJ - Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YESR, Finish2.8 ft. MGO - General Observation - Grease Throughout The Reach (5%)2.8 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish8.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 4"26.3 ft. RFJ - Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YESR, Start40.8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 4"65.1 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 4"92.5 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"97.3 ft. RFJ - Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YESR111.9 ft. MGP - General Photograph136.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start138.9 ft. AMH - Downstream Manhole, Survey Begins - 9:23 AM138.9 ft. MWM - Water Mark, 25 %of cross sectional area138.9 ft. MWL - Water Level, 20 %of cross sectional area

Observation photos (3)

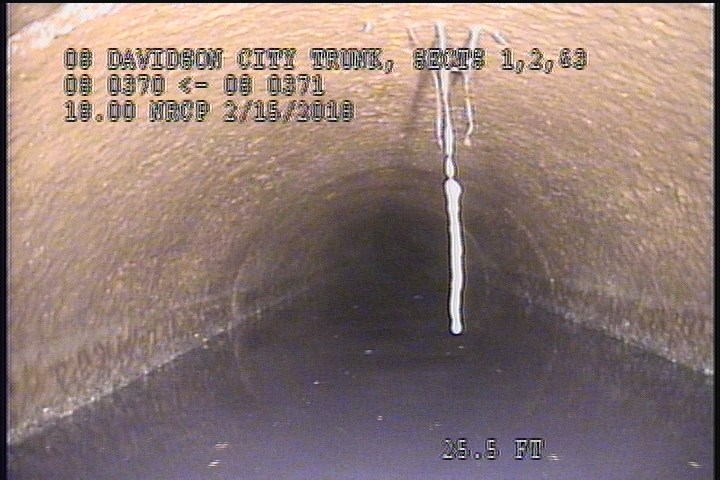

  • General Photograph

    27 ft. - General Photograph

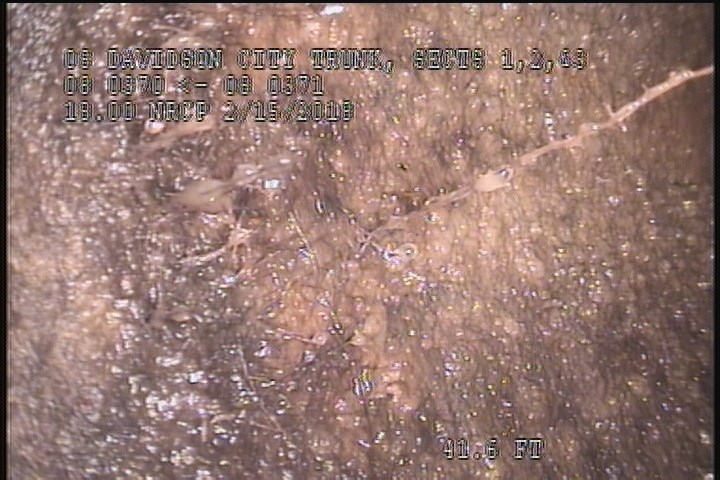

  • Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YESR

    41.6 ft. - Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YESR

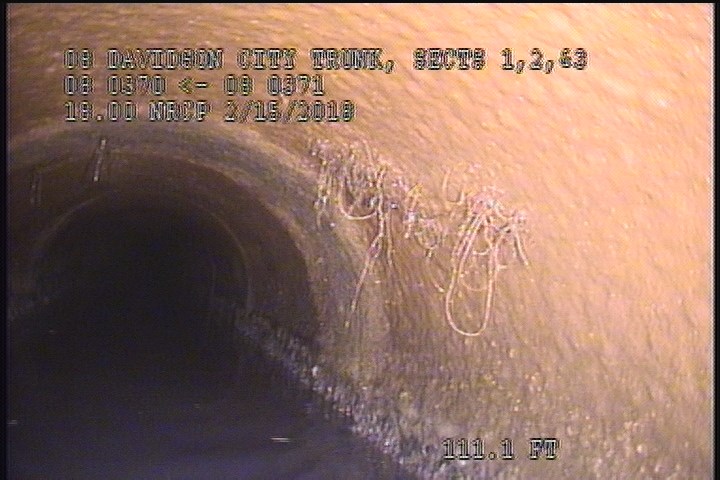

  • Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YESR, Start

    112.6 ft. - Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YESR, Start

All inspections of P00424Work order 0690350

Observations (16)

DistanceCodeObservation
27MGP—
136.1RFJ—
138.9AMH9:36 AM
41.6RFJ—
138MGOConn. @ Mh, 3 O' Clock. CAPPED
46.4TFA—
136.1MGOGrease Throughout The Reach (5%)
0AMH9:23 AM
0MWM—
2SSS—
130.4TFC—
0MWL—
112.6RFJ—
136.1SSS—
73.8TFC—
98.1TFC—

Properties (4)

additional_info
PIPE ID ON SCREEN IS WRONG. CORRECT ID # IS (P00424)
custom_field_two
3
customer
LACSD
datetime
2018-02-15T09:22:14-08:00
