Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 31, 2018, 07:22 AM

  • 15 0757_15 0756 _30012018_233659.mp4

Date
01/30/2018
W/O
684713
Weather
Dry
Operator/Surveyor
K. ADAME
Sewer ID
Z00593
PipeID
P12957
Time
11:22 PM
Certificate
U-0817-07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4860
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
City
ARCADIA, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
08
Purpose
Routine Assessment
Project
WO_684713_TV15146_FEB2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
15 0757
Downstream MH
15 0756
Dir. of Survey
Downstream
Length Surveyed
330.5 ft.
Total Length
330.5 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 15 0757 to 15 0756
MH: 15 0757MH: 15 0756downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 07570 ft. MWM - Water Mark, 40 %of cross sectional area8.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start65.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"68.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"77.5 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: YES, 6"135.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"142.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"151 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: YES, 6"199.3 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 6"202.3 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: YES, 6"229.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"267.7 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES283.9 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: YES, 6"329.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish330.5 ft. AMH - Downstream Manhole, Survey Ends - 15 0756

Observation photos (2)

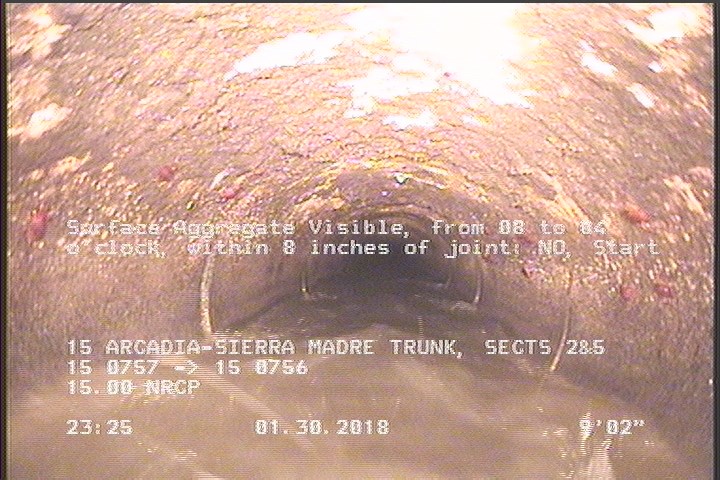

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    8.9 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

  • Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    267.7 ft. - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES

All inspections of P12957Work order 684713

Observations (17)

DistanceCodeObservation
151TB—
283.9TB—
202.3TB—
142.1TFC—
199.3TFC—
77.5TB—
0MWL—
0AMH15 0757
68.5TFC—
229.6TF—
65.5TF—
135.7TF—
267.7FL—
330.5AMH15 0756
0MWM—
8.9SAV—
329.1SAV—

Properties (4)

additional_info
SC346884
custom_field_two
3
customer
LACSD
datetime
2018-01-30T23:22:47-08:00
