Wastewater/Activity/PacpInspection/1.0Jan 31, 2018, 11:39 AM
15 0735_15 0734 _31012018_035541.mp4
- Date
- 01/31/2018
- W/O
- 684713
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00593
- PipeID
- P12934
- Time
- 3:39 AM
- Certificate
- U-0817-07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4860
- Sewer Name
- 15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
- City
- ARCADIA, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_684713_TV15146_FEB2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 15 0735
- Downstream MH
- 15 0734
- Dir. of Survey
- Downstream
- Length Surveyed
- 308.9 ft.
- Total Length
- 308.9 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 4
- O&M Quick
- 4131
- O&M Rating
- 7
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (4)
3 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start
130.8 ft. - Roots Medium Lateral, at 02 o'clock, 15 %, within 8 inches of joint: NO
132.3 ft. - Roots Ball Lateral, at 02 o'clock, 80 %

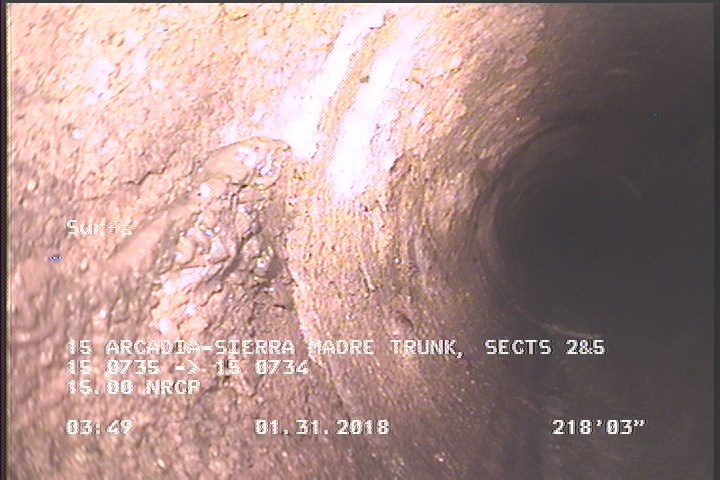

218.1 ft. - Surface Spalling, from 10 to 11 o'clock, within 8 inches of joint: YES
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 132.3 | RBL | — |
| 95.4 | TF | — |
| 0 | MWM | — |
| 305.4 | SAV | — |
| 130.8 | RML | — |
| 308.9 | AMH | 15 0734 |
| 3 | SAV | — |
| 132.3 | TF | — |
| 0 | MWL | — |
| 0 | AMH | 15 0735 |
| 218.1 | SSS | — |
| 252.7 | TB | — |
| 16.1 | TF | — |
| 52.7 | TF | — |
| 252.8 | TF | — |
| 237.7 | TFC | — |
| 180.6 | TF | — |
Properties (4)
- additional_info
- SC346884
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-01-31T03:39:39-08:00
