Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 30, 2018, 09:54 AM

  • 15 0766_15 0765 _30012018_021256.mp4

Date
01/30/2018
W/O
684713
Weather
Dry
Operator/Surveyor
K. ADAME
Sewer ID
Z00593
PipeID
P12967
Time
1:54 AM
Certificate
U-0817-07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4858
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
City
ARCADIA, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
04
Purpose
Routine Assessment
Project
WO_684713_TV15146_FEB2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
15 0766
Downstream MH
15 0765
Dir. of Survey
Downstream
Length Surveyed
403.2 ft.
Total Length
403.2 ft.
Structural Index
3
Structural Quick
413O
Structural Rating
241
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
243
Pipe schematic from manhole 15 0766 to 15 0765
MH: 15 0766MH: 15 0765downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 15 07660 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0.1 ft. MWM - Water Mark, 40 %of cross sectional area5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start67.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"71.1 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: YES, 6"78.5 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES83 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"134.4 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - GAP IN PIPING134.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"170.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"280 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6"283.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"319.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"322.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6"382 ft. MGO - General Observation - MAG COAT400.8 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish403.2 ft. AMH - Downstream Manhole, Survey Ends - 15 0765403.2 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK403.2 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK

Observation photos (2)

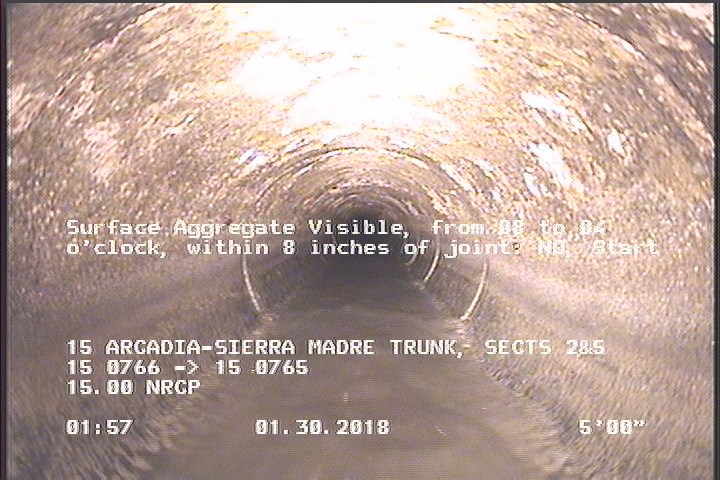

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

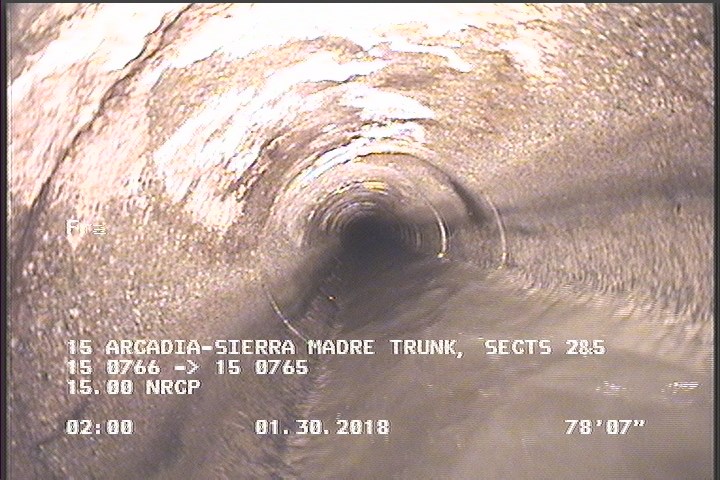

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    78.5 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

All inspections of P12967Work order 684713

Observations (22)

DistanceCodeObservation
5SAV—
67.3TFC—
134.4TFDGAP IN PIPING
0MWL—
403.2AMH15 0765
382MGOMAG COAT
0MGOCONNECTION AT MH 3 O'CLOCK
403.2MGOCONNECTION AT MH 9 O'CLOCK
78.5FM—
83TF—
0AMH15 0766
283.2TF—
319.7TF—
403.2MGOCONNECTION AT MH 3 O'CLOCK
71.1TB—
322.9TF—
170.9TFC—
280TF—
0.1MWM—
134.4TF—
400.8SAV—
0MGOCONNECTION AT MH 9 O'CLOCK

Properties (4)

additional_info
SC346882
custom_field_two
3
customer
LACSD
datetime
2018-01-30T01:54:02-08:00
