Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 30, 2018, 07:16 AM

  • 15 0777_15 0776 _29012018_233319.mp4

Date
01/29/2018
W/O
684713
Weather
Dry
Operator/Surveyor
K. ADAME
Sewer ID
Z00593
PipeID
P12978
Time
11:16 PM
Certificate
U-0817-07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4858
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
City
ARCADIA, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
04
Purpose
Routine Assessment
Project
WO_684713_TV15146_FEB2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
15 0777
Downstream MH
15 0776
Dir. of Survey
Downstream
Length Surveyed
220.2 ft.
Total Length
220.2 ft.
Structural Index
4
Structural Quick
4232
Structural Rating
14
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
3
Overall Quick
—
Overall Rating
15
Pipe schematic from manhole 15 0777 to 15 0776
MH: 15 0777MH: 15 0776downstream0 ft. AMH - Upstream Manhole, Survey Begins - 15 07770 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK2.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start56.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"59.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6"79.8 ft. FM - Fracture Multiple, from 09 to 01 o'clock, within 8 inches of joint: YES103.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6"106.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"154.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6"157.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"205.2 ft. FL - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES205.2 ft. RFJ - Roots Fine Joint, at 03 o'clock, within 8 inches of joint: YES211.6 ft. FM - Fracture Multiple, from 10 to 11 o'clock, within 8 inches of joint: YES217.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish220.2 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK220.2 ft. AMH - Downstream Manhole, Survey Ends - 15 0776

Observation photos (5)

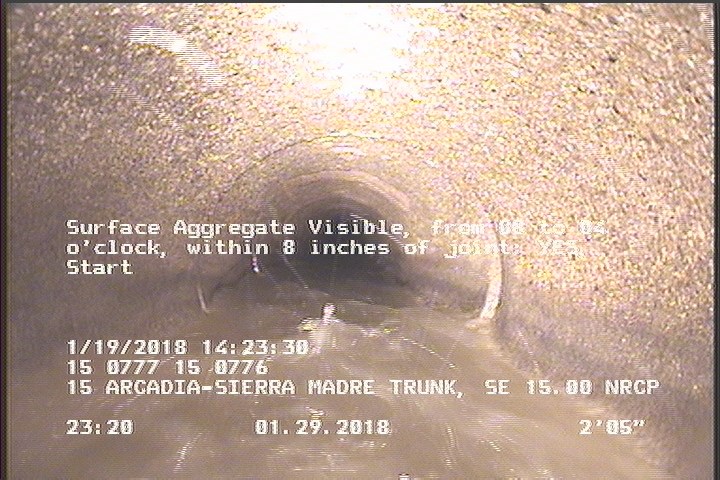

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

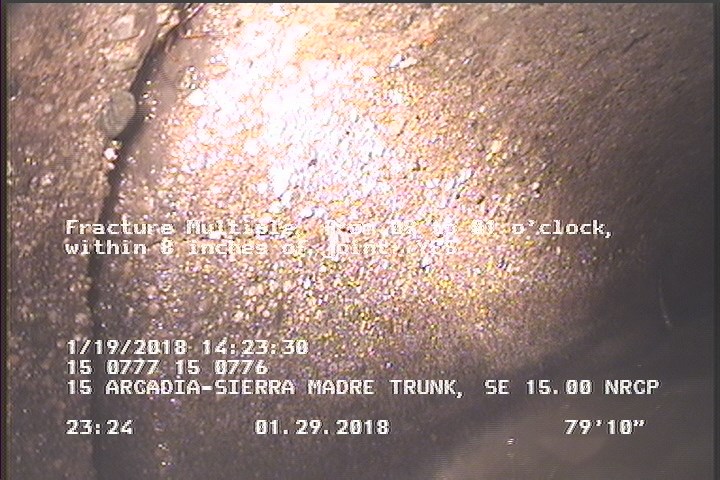

  • Fracture Multiple, from 09 to 01 o'clock, within 8 inches of joint: YES

    79.8 ft. - Fracture Multiple, from 09 to 01 o'clock, within 8 inches of joint: YES

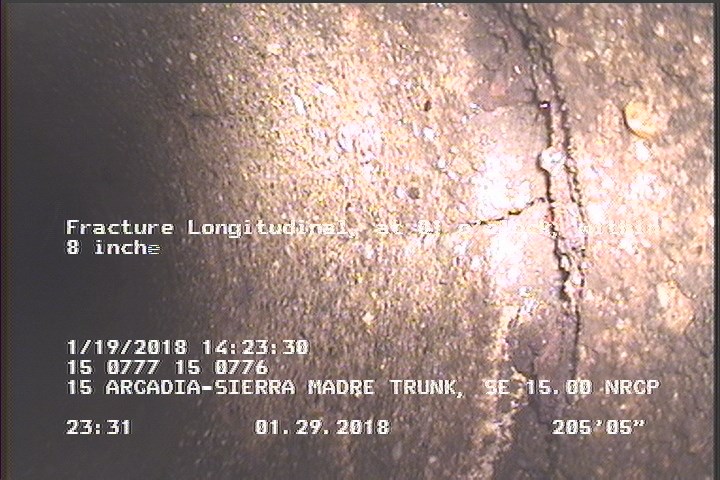

  • Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    205.2 ft. - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES

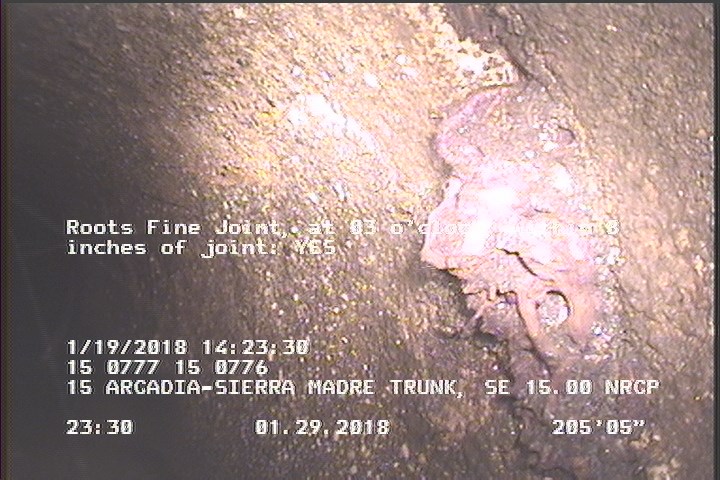

  • Roots Fine Joint, at 03 o'clock, within 8 inches of joint: YES

    205.2 ft. - Roots Fine Joint, at 03 o'clock, within 8 inches of joint: YES

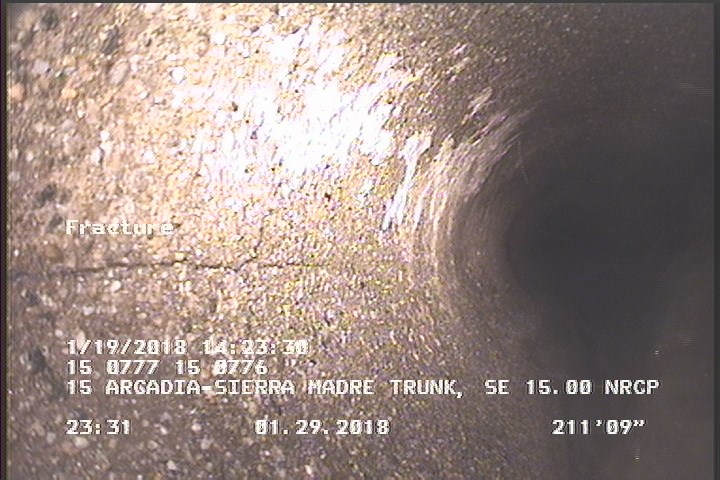

  • Fracture Multiple, from 10 to 11 o'clock, within 8 inches of joint: YES

    211.6 ft. - Fracture Multiple, from 10 to 11 o'clock, within 8 inches of joint: YES

All inspections of P12978Work order 684713

Observations (16)

DistanceCodeObservation
106.4TF—
205.2FL—
217.7SAV—
0AMH15 0777
157.9TFC—
205.2RFJ—
220.2MGOCONNECTION AT MH 3 O'CLOCK
0MGOCONNECTION AT MH 3 O'CLOCK
211.6FM—
154.9TF—
2.5SAV—
103.3TF—
56.7TFC—
220.2AMH15 0776
59.9TF—
79.8FM—

Properties (4)

additional_info
SC346882
custom_field_two
3
customer
LACSD
datetime
2018-01-29T23:16:43-08:00
