Wastewater/Activity/PacpInspection/1.0Jan 30, 2018, 10:47 AM
18 0996_18 0995 _30012018_025741.mp4
- Date
- 01/30/2018
- W/O
- 684788
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00677
- PipeID
- P14850
- Time
- 2:47 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5392
- Sewer Name
- 18 LA HABRA HEIGHTS TRUNK, SECTION 1
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 22
- Purpose
- Routine Assessment
- Project
- WO_684788_TV18013_FEB2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 18 0996
- Downstream MH
- 18 0995
- Dir. of Survey
- Downstream
- Length Surveyed
- 60.5 ft.
- Total Length
- 60.5 ft.
- Structural Index
- 3
- Structural Quick
- 3A00
- Structural Rating
- 30
- O&M Index
- 2
- O&M Quick
- 2A00
- O&M Rating
- 22
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 52
Observation photos (3)

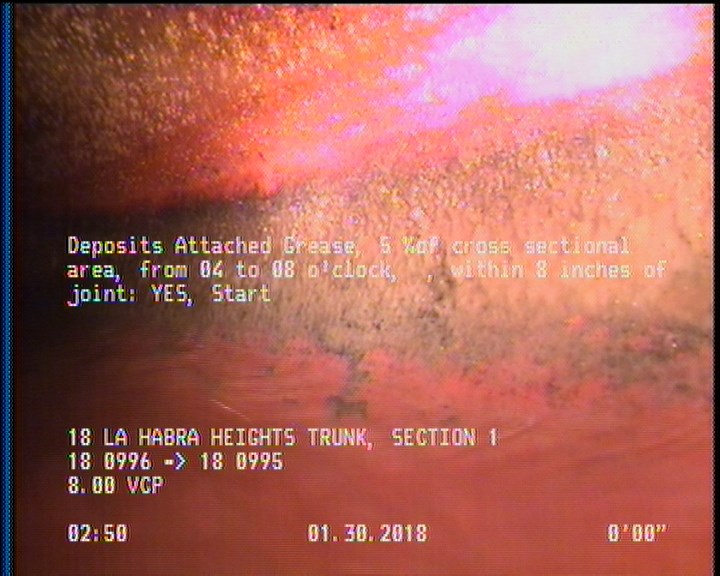

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

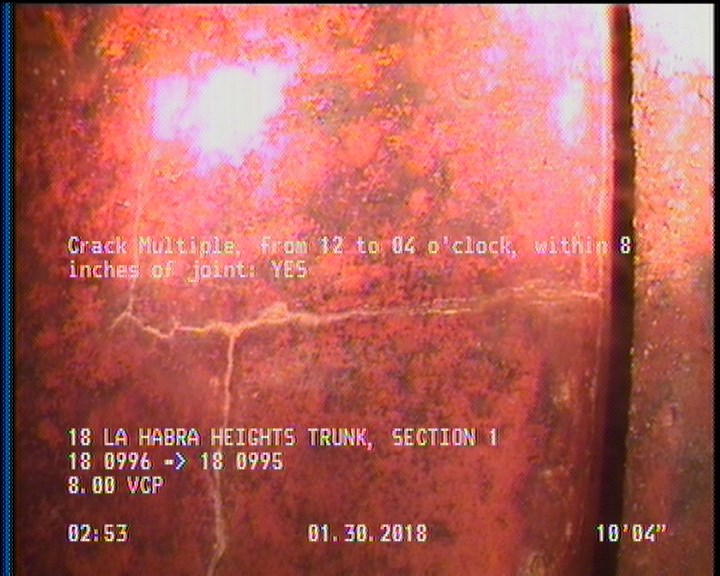

10.3 ft. - Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

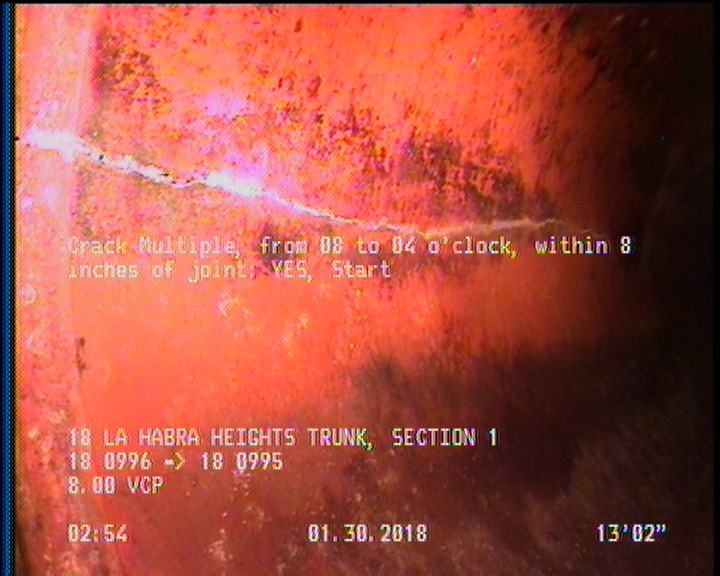

13.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 0 | MWM | — |
| 0 | AMH | 18 0996 |
| 41.9 | TFA | — |
| 6.1 | TFA | — |
| 13.1 | CM | — |
| 58.3 | DAGS | — |
| 58.3 | CM | — |
| 10.3 | CM | — |
| 60.5 | AMH | 18 0995 |
| 60.5 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 8.8 | TFC | — |
| 0 | MWL | — |
| 53.6 | TFC | — |
Properties (4)
- additional_info
- SC346971
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-01-30T02:47:54-08:00
