Wastewater/Activity/PacpInspection/1.0Dec 11, 2017, 12:09 PM
18 0215_18 0214 _11122017_041007.mp4
- Date
- 12/11/2017
- W/O
- 673944
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00695
- PipeID
- P14041
- Time
- 4:09 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5271
- Sewer Name
- 18 ORR AND DAY ROAD TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_673944_TV18100_DEC2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 18 0215
- Downstream MH
- 18 0214
- Dir. of Survey
- Downstream
- Length Surveyed
- 25.1 ft.
- Total Length
- 25.2 ft.
- Structural Index
- 4
- Structural Quick
- 5434
- Structural Rating
- 32
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 32
Observation photos (2)

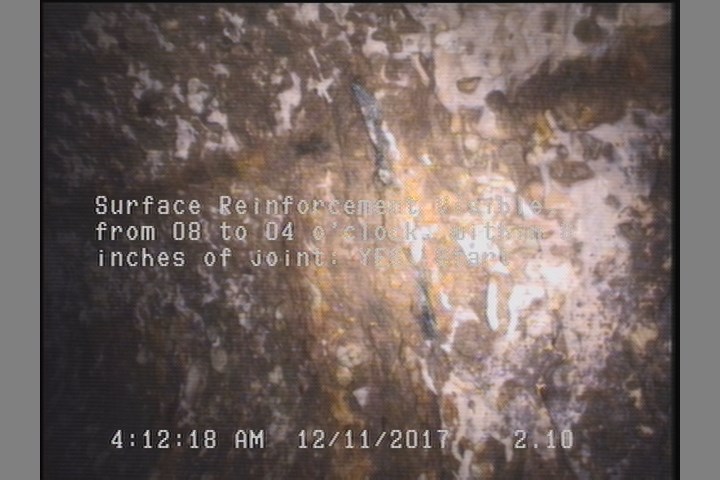

2.1 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

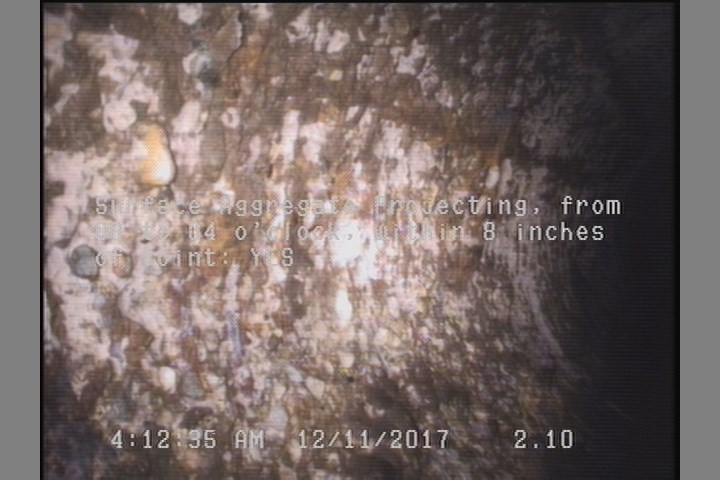

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 18 0215 |
| 24.2 | SAP | — |
| 22.2 | SRV | — |
| 25.2 | AMH | 18 0214 |
| 2.1 | SRV | — |
| 2.1 | SAP | — |
| 0 | MWL | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MWM | — |
| 25.1 | MGO | CONNECTION AT MH 3 O'CLOCK |
Properties (5)
- additional_info
- 3
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-12-11T04:09:12-08:00
- sewer_category
- Gravity
