Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 10, 2017, 08:13 AM

  • 18 0357_18 0356A_10052017_011617.mp4

Date
05/10/2017
W/O
630481
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00714
PipeID
P26488
Time
1:13 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4492
Sewer Name
18 WASHINGTON BOULEVARD TRUNK
City
WHITTIER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
09
Purpose
Routine Assessment
Project
WO_635481_TV18060_MAY2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
18 0357
Downstream MH
18 0356A
Dir. of Survey
Downstream
Length Surveyed
326 ft.
Total Length
326 ft.
Structural Index
3
Structural Quick
3I11
Structural Rating
154
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
158
Pipe schematic from manhole 18 0357 to 18 0356A
MH: 18 0357MH: 18 0356Adownstream0 ft. MWM - Water Mark, 55 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 03570 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MGO - General Observation - CAPPED LATERAL 9 O'CLOCK @ MH0 ft. MGO - General Observation - CAPPED LATERAL 3 O'CLOCK @ MH6.5 ft. CM - Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES41.4 ft. CM - Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES53.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"54.3 ft. CC - Crack Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES74.5 ft. CM - Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES85.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start101.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"149.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"202.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"250.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"298.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"326 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish326 ft. AMH - Downstream Manhole, Survey Ends - 18 0356A326 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK

Observation photos (5)

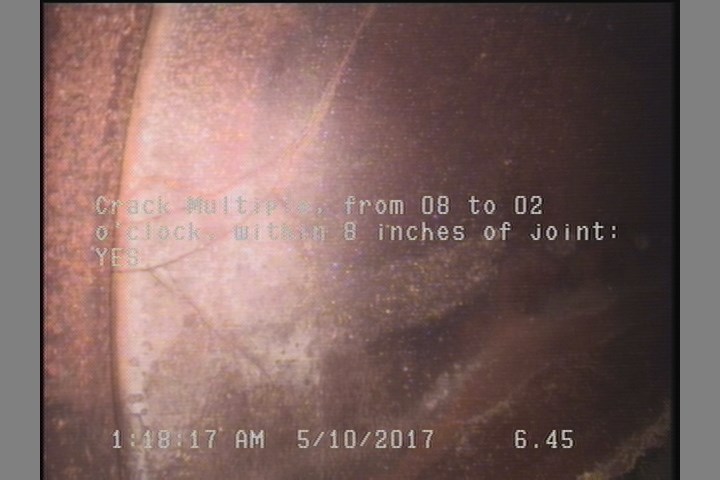

  • Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES

    6.5 ft. - Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES

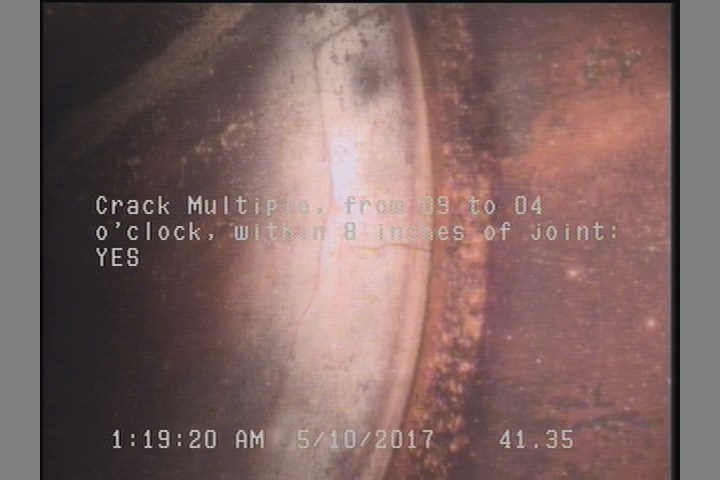

  • Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES

    41.4 ft. - Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES

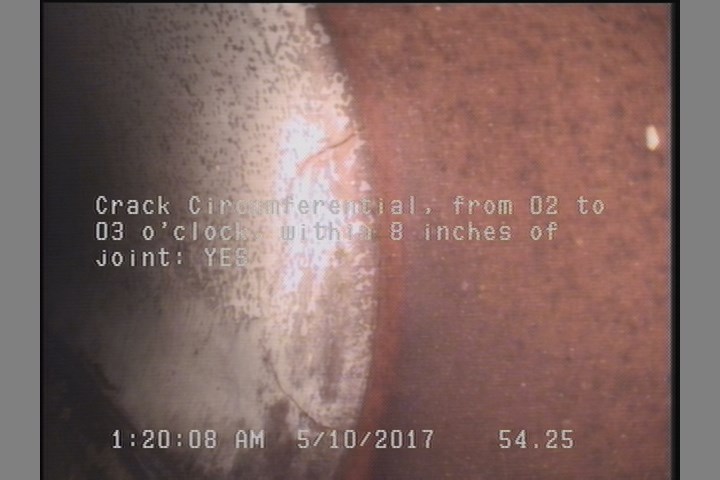

  • Crack Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES

    54.3 ft. - Crack Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES

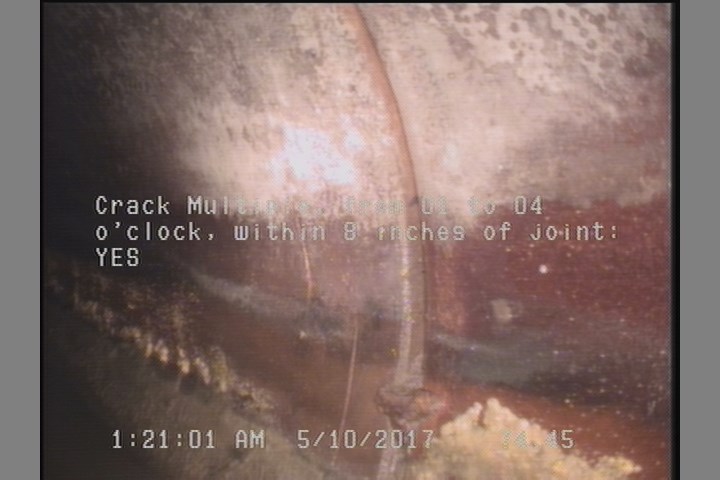

  • Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES

    74.5 ft. - Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES

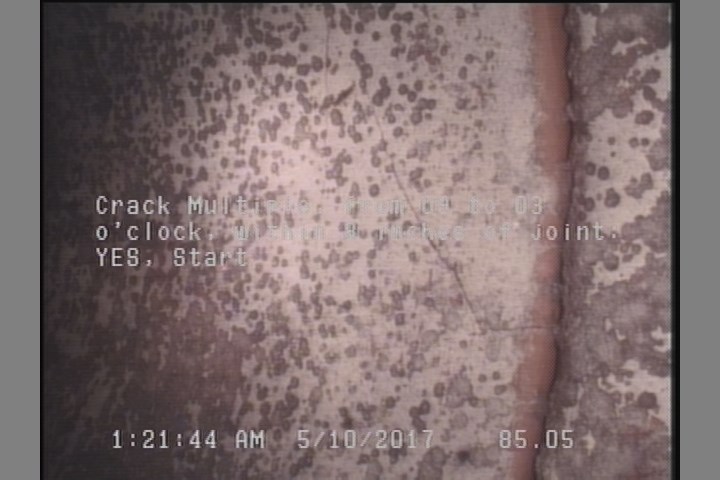

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    85.1 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P26488Work order 630481

Observations (19)

DistanceCodeObservation
6.5CM—
53.2TFC—
41.4CM—
0MWM—
0AMH18 0357
54.3CC—
326CM—
74.5CM—
202.5TFC—
250.5TFC—
0MWL—
85.1CM—
0MGOCAPPED LATERAL 9 O'CLOCK @ MH
101.1TFC—
149.2TFC—
326AMH18 0356A
298.8TFC—
326MGOCONNECTION AT MH 9 O'CLOCK
0MGOCAPPED LATERAL 3 O'CLOCK @ MH

Properties (6)

additional_info
SC345301
custom_field_two
3
customer
LACSD
datetime
2017-05-10T01:13:54-07:00
sewer_category
Gravity
year_laid
40739
