Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 1, 2016, 06:01 AM

  • 18 0512A_18 0512 _30062016_230235.mp4

Date
06/30/2016
W/O
579947
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00705
PipeID
P14367
Time
11:01 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3551
Sewer Name
18 SOUTH PLANT OUTFALL TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
10
Purpose
Routine Assessment
Project
WO_579947_TV18055_JULY2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
18 0512A
Downstream MH
18 0512
Dir. of Survey
Downstream
Length Surveyed
183.8 ft.
Total Length
183.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2K00
O&M Rating
120
Overall Index
2
Overall Quick
—
Overall Rating
120
Pipe schematic from manhole 18 0512A to 18 0512
MH: 18 0512AMH: 18 0512downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - 18 0512A0 ft. MWM - Water Mark, 25 %of cross sectional area2.1 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start63 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start182.2 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish182.2 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish182.2 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK183.8 ft. MGO - General Observation - COCKROACHES IN MANHOLE183.8 ft. AMH - Downstream Manhole, Survey Ends - 18 0512

Observation photos (3)

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

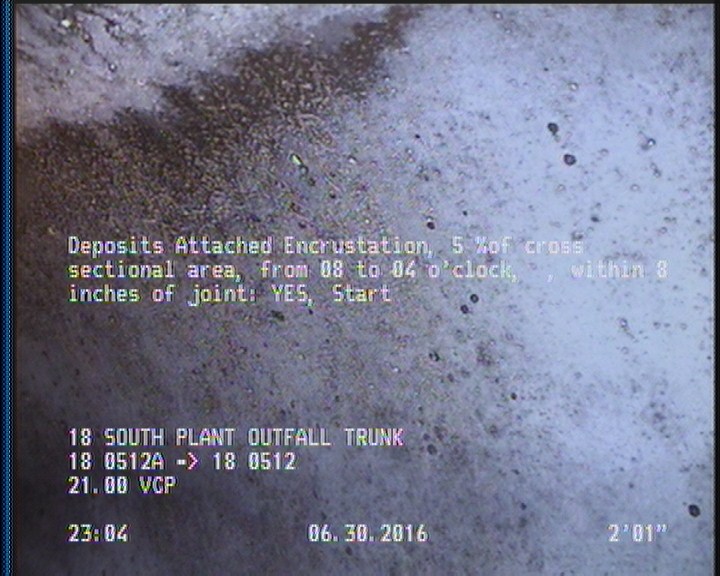

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

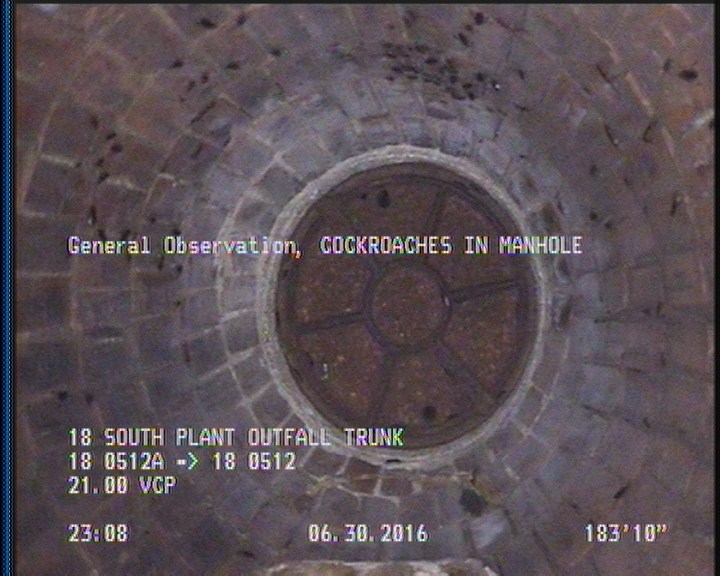

  • General Observation - COCKROACHES IN MANHOLE

    183.8 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P14367Work order 579947

Observations (11)

DistanceCodeObservation
2.1DAE—
182.2DAE—
0MWL—
0MGOCOCKROACHES IN MANHOLE
183.8MGOCOCKROACHES IN MANHOLE
0AMH18 0512A
183.8AMH18 0512
0MWM—
182.2DSZ—
182.2MGOACTIVE CONNECTION AT MH 9 O'CLOCK
63DSZ—

Properties (5)

additional_info
SC305780
custom_field_two
4
customer
LACSD
datetime
2016-06-30T23:01:30-07:00
sewer_category
Gravity
