Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 30, 2016, 06:12 AM

  • 18 0529_18 0528 _29062016_232304.mp4

Date
06/29/2016
W/O
579947
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00705
PipeID
P14383
Time
11:12 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3550
Sewer Name
18 SOUTH PLANT OUTFALL TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
09
Purpose
Routine Assessment
Project
WO_579947_TV18055_JULY2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
18 0528
Downstream MH
18 0529
Dir. of Survey
Upstream
Length Surveyed
396.6 ft.
Total Length
396.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2^00
O&M Rating
312
Overall Index
2
Overall Quick
—
Overall Rating
312
Pipe schematic from manhole 18 0528 to 18 0529
MH: 18 0528MH: 18 0529upstream0 ft. AMH - Upstream Manhole, Survey Ends - 18 05290.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish0.8 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Finish0.8 ft. MGO - General Observation - COCKROACHES IN MANHOLE148.1 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"201.7 ft. TBA - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"269.8 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"351.2 ft. TBA - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"374.7 ft. TBA - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: YES, 6"388.2 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start394.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start396.6 ft. MGO - General Observation - COCKROACHES IN MANHOLE396.6 ft. MWL - Water Level, 25 %of cross sectional area396.6 ft. MWM - Water Mark, 30 %of cross sectional area396.6 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK396.6 ft. AMH - Downstream Manhole, Survey Begins - 18 0528

Observation photos (4)

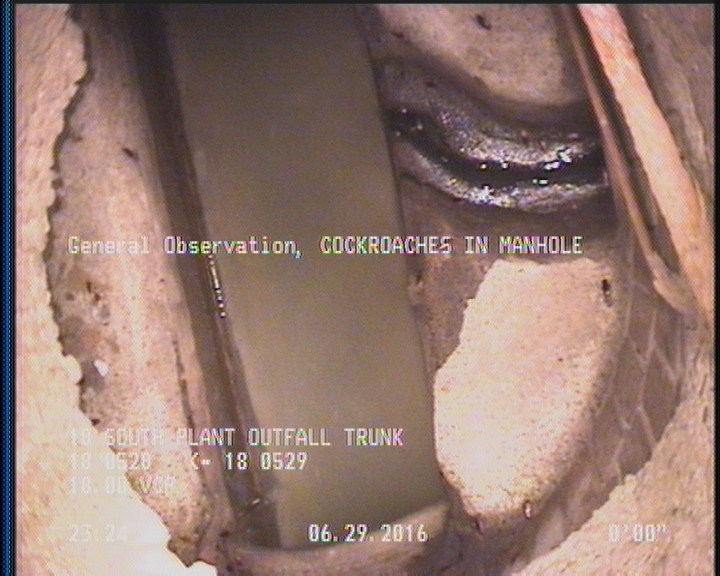

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

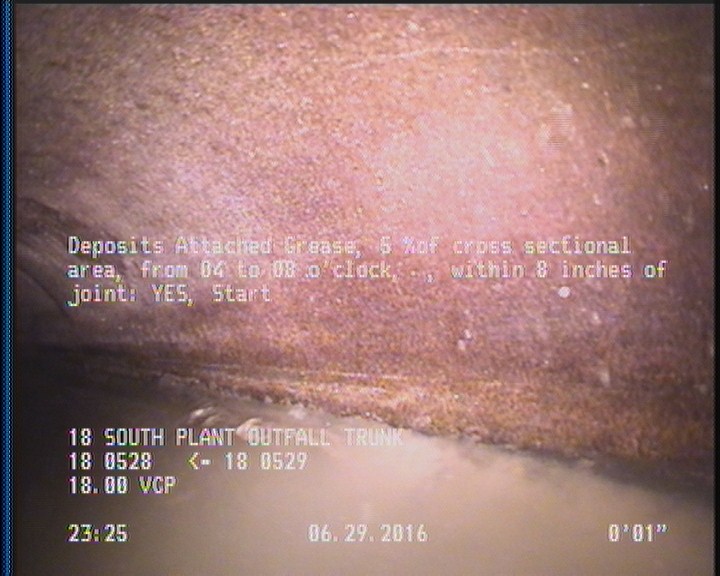

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

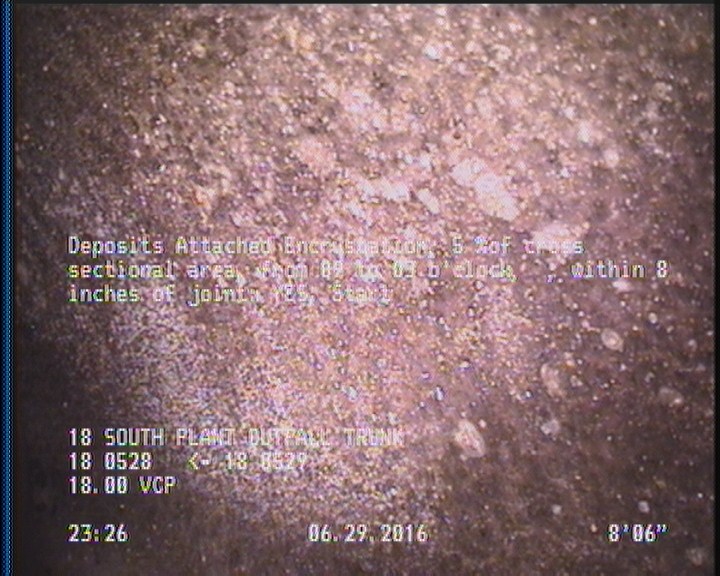

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

    8.4 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

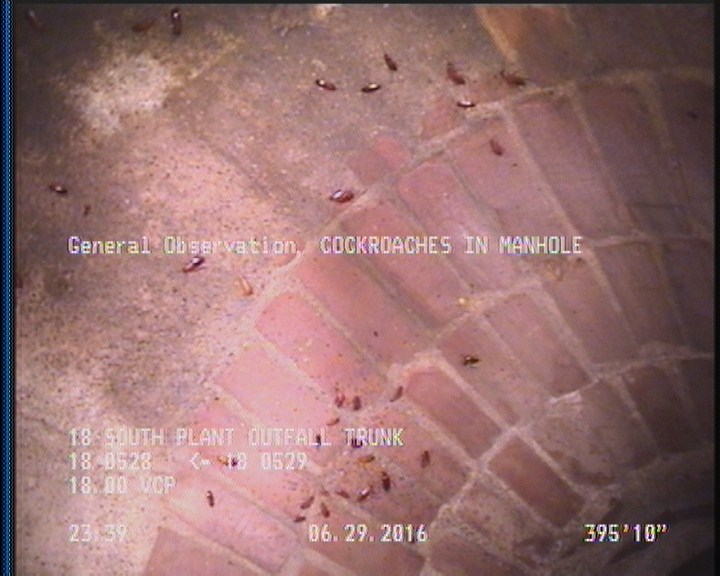

  • General Observation - COCKROACHES IN MANHOLE

    395.8 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P14383Work order 579947

Observations (16)

DistanceCodeObservation
126.8TBA—
0MGOCOCKROACHES IN MANHOLE
45.4TBA—
395.8DAGS—
0MWL—
396.6AMH18 0529
0MWM—
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
395.8DAE—
194.9TBA—
0AMH18 0528
248.5TB—
21.9TBA—
395.8MGOCOCKROACHES IN MANHOLE
2DAGS—
8.4DAE—

Properties (5)

additional_info
SC305779
custom_field_two
4
customer
LACSD
datetime
2016-06-29T23:12:14-07:00
sewer_category
Gravity
