Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 1, 2016, 05:52 AM

  • 18 0513_18 0512A _30062016_225301.mp4

Date
06/30/2016
W/O
579947
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00705
PipeID
P19999
Time
10:52 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3551
Sewer Name
18 SOUTH PLANT OUTFALL TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
10
Purpose
Routine Assessment
Project
WO_579947_TV18055_JULY2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
18 0513
Downstream MH
18 0512A
Dir. of Survey
Downstream
Length Surveyed
183.5 ft.
Total Length
183.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2F00
O&M Rating
72
Overall Index
2
Overall Quick
—
Overall Rating
72
Pipe schematic from manhole 18 0513 to 18 0512A
MH: 18 0513MH: 18 0512Adownstream0 ft. AMH - Upstream Manhole, Survey Begins - 18 05130 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK2 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start181.7 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish183.5 ft. AMH - Downstream Manhole, Survey Ends - 18 0512A183.5 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (3)

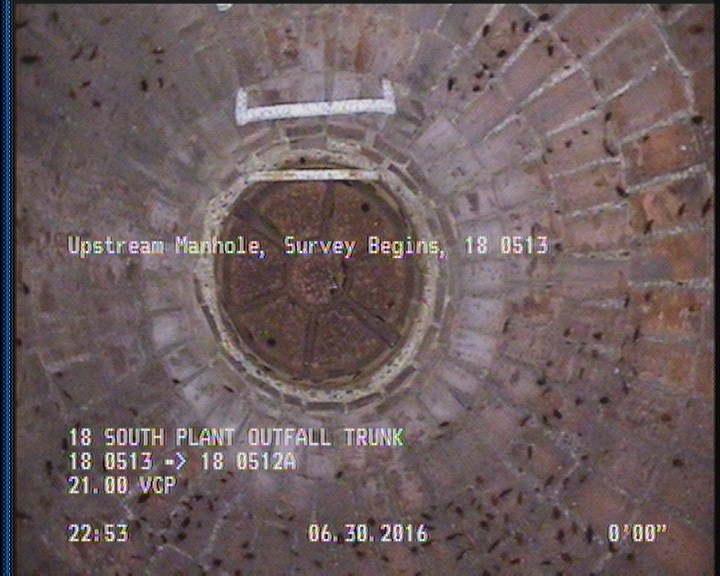

  • Upstream Manhole, Survey Begins - 18 0513

    0 ft. - Upstream Manhole, Survey Begins - 18 0513

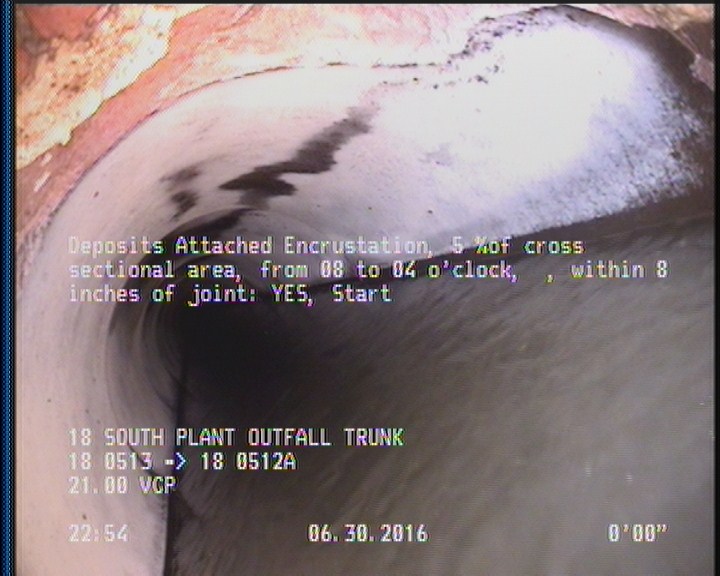

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

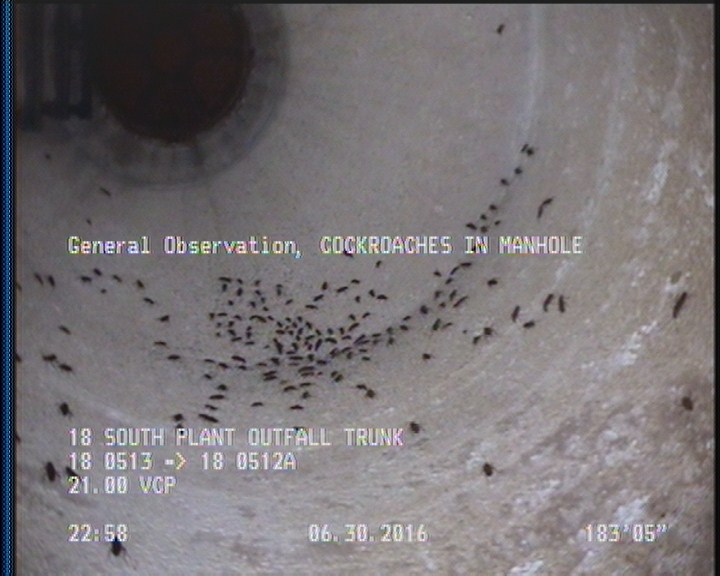

  • General Observation - COCKROACHES IN MANHOLE

    183.5 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P19999Work order 579947

Observations (8)

DistanceCodeObservation
181.7DAE—
183.5AMH18 0512A
0AMH18 0513
0MWL—
0MWM—
2DAE—
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
183.5MGOCOCKROACHES IN MANHOLE

Properties (5)

additional_info
SC305780
custom_field_two
4
customer
LACSD
datetime
2016-06-30T22:52:29-07:00
sewer_category
Gravity
