Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 30, 2016, 08:36 AM

  • 18 0523_18 0522 _30062016_013755.mp4

Date
06/30/2016
W/O
579947
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00705
PipeID
P14377
Time
1:36 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3550
Sewer Name
18 SOUTH PLANT OUTFALL TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
10
Purpose
Routine Assessment
Project
WO_579947_TV18055_JULY2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
18 0523
Downstream MH
18 0522
Dir. of Survey
Downstream
Length Surveyed
338.1 ft.
Total Length
338.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2L00
O&M Rating
134
Overall Index
2
Overall Quick
—
Overall Rating
134
Pipe schematic from manhole 18 0523 to 18 0522
MH: 18 0523MH: 18 0522downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - 18 05230 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start31.2 ft. RPZ - Repair Other, within 8 inches of joint: YES - LINK PIPE212.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"336.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish338.1 ft. AMH - Downstream Manhole, Survey Ends - 18 0522338.1 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (4)

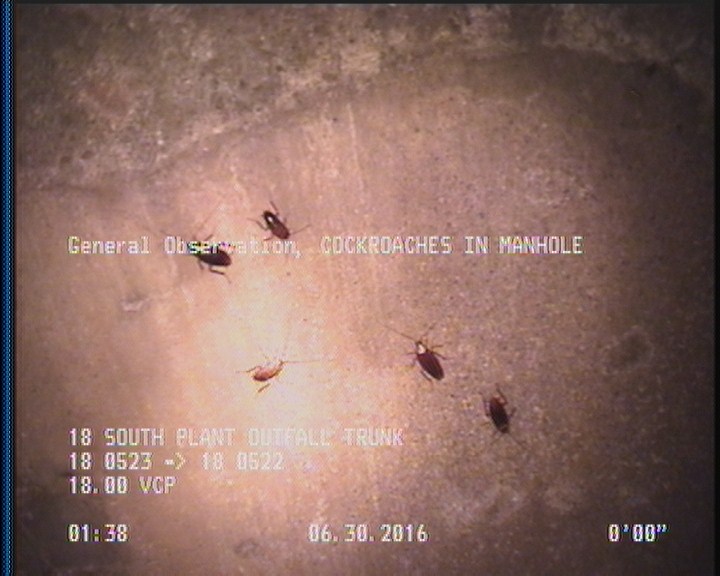

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

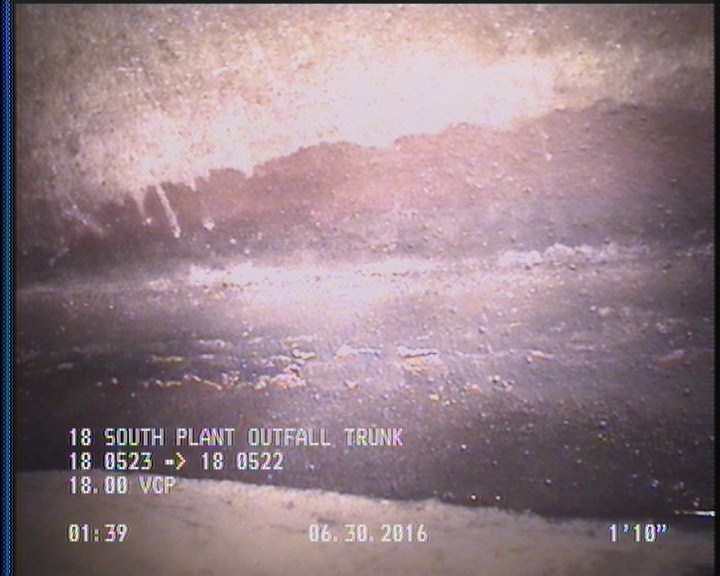

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

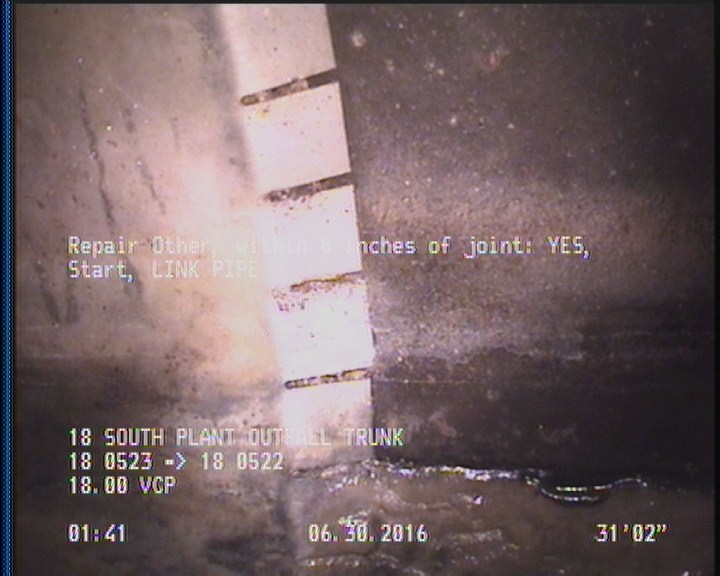

  • Repair Other, within 8 inches of joint: YES - LINK PIPE

    31.2 ft. - Repair Other, within 8 inches of joint: YES - LINK PIPE

  • General Observation - COCKROACHES IN MANHOLE

    338.1 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P14377Work order 579947

Observations (10)

DistanceCodeObservation
338.1AMH18 0522
336.2DAGS—
2DAGS—
0MGOCOCKROACHES IN MANHOLE
338.1MGOCOCKROACHES IN MANHOLE
0AMH18 0523
0MWM—
0MWL—
31.2RPZLINK PIPE
212.5TF—

Properties (5)

additional_info
SC305779
custom_field_two
4
customer
LACSD
datetime
2016-06-30T01:36:31-07:00
sewer_category
Gravity
