Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 1, 2016, 08:06 AM

  • 18 0515_18 0514 _01072016_010631.mp4

Date
07/01/2016
W/O
579947
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00705
PipeID
P14369
Time
1:06 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3551
Sewer Name
18 SOUTH PLANT OUTFALL TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
10
Purpose
Routine Assessment
Project
WO_579947_TV18055_JULY2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
18 0515
Downstream MH
18 0514
Dir. of Survey
Downstream
Length Surveyed
344.9 ft.
Total Length
344.9 ft.
Structural Index
2
Structural Quick
3124
Structural Rating
11
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole 18 0515 to 18 0514
MH: 18 0515MH: 18 0514downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 051530.2 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"55.8 ft. TBA - Tap Break-In Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"139.5 ft. CM - Crack Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES183.9 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES187.9 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES191.5 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES297.5 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES344.9 ft. AMH - Downstream Manhole, Survey Ends - 18 0514344.9 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (8)

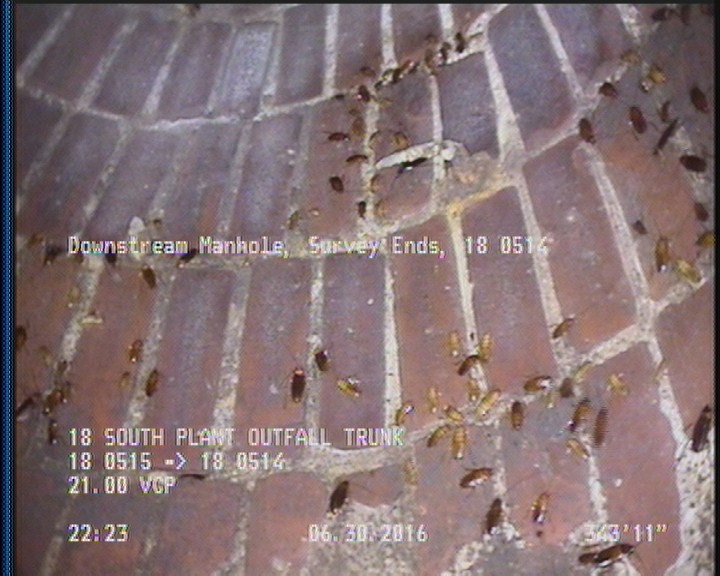

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

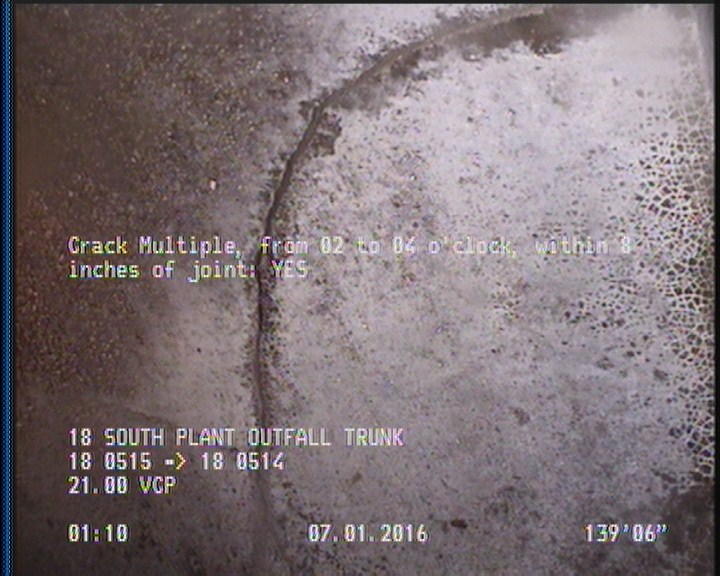

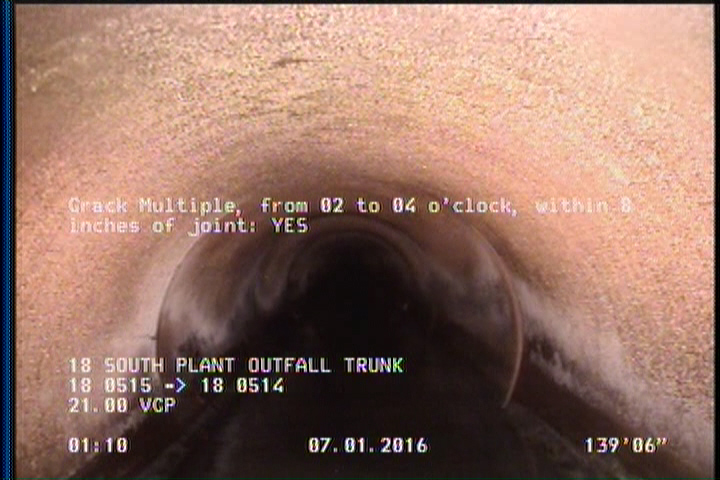

  • Crack Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES

    139.5 ft. - Crack Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES

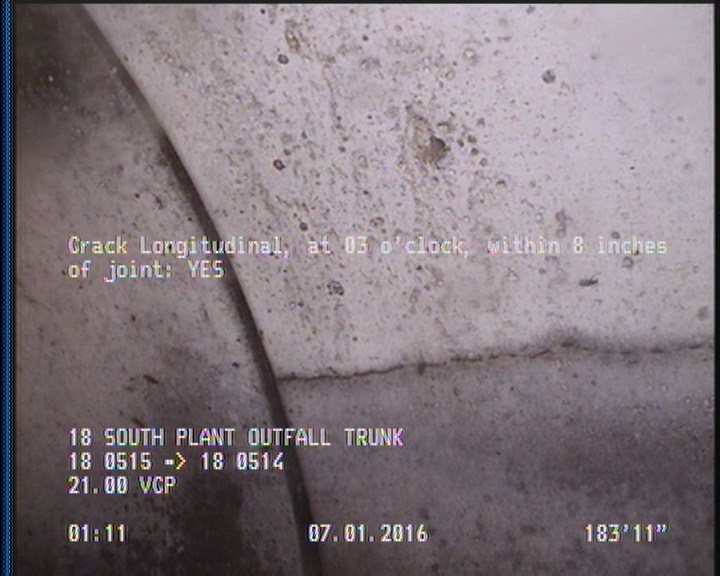

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    183.9 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

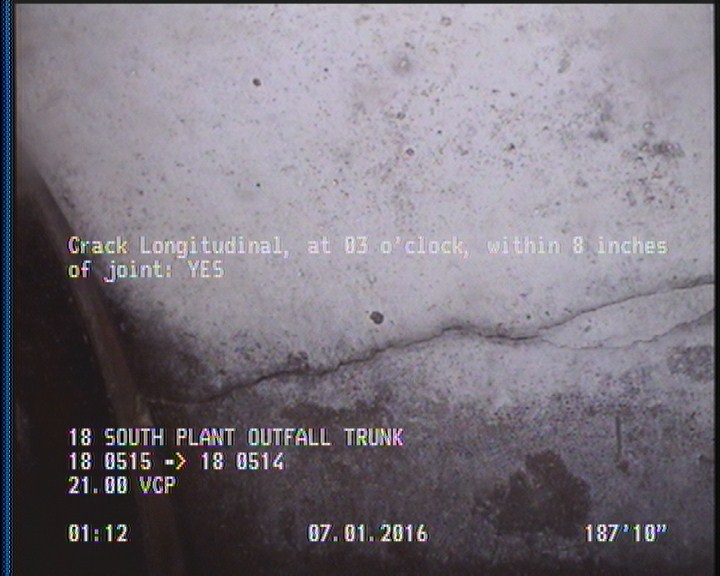

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    187.9 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

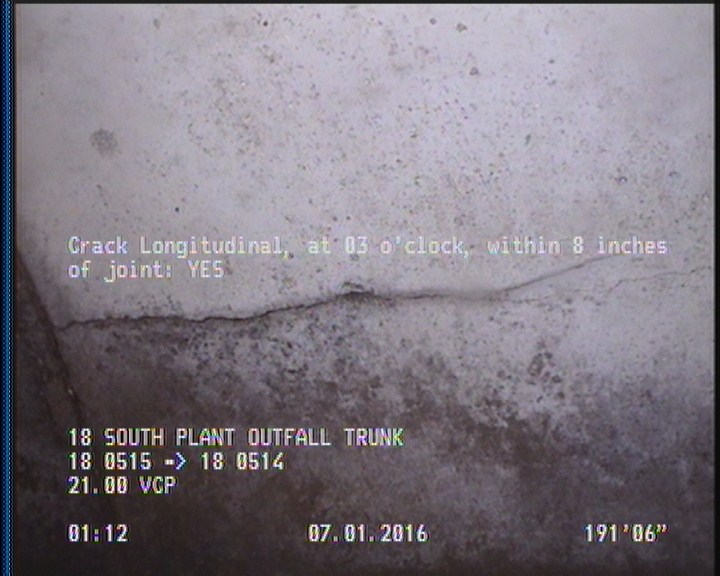

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    191.5 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

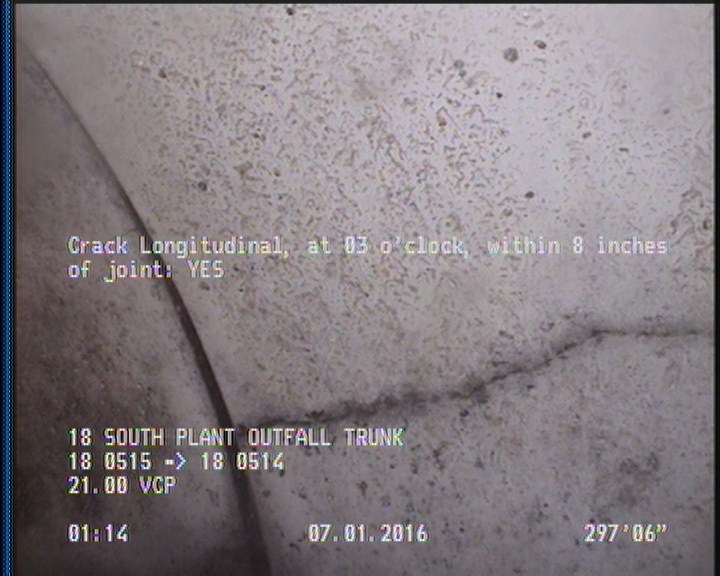

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    297.5 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

  • Downstream Manhole, Survey Ends - 18 0514

    344.9 ft. - Downstream Manhole, Survey Ends - 18 0514

  • General Observation - COCKROACHES IN MANHOLE

    344.9 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P14369Work order 579947

Observations (13)

DistanceCodeObservation
297.5CL—
0MWL—
0MGOCOCKROACHES IN MANHOLE
191.5CL—
0MWM—
344.9AMH18 0514
139.5CM—
187.9CL—
30.2TB—
0AMH18 0515
55.8TBA—
183.9CL—
344.9MGOCOCKROACHES IN MANHOLE

Properties (5)

additional_info
SC305780
custom_field_two
3
customer
LACSD
datetime
2016-07-01T01:06:35-07:00
sewer_category
Gravity
