Wastewater/Activity/PacpInspection/1.0Jun 30, 2016, 10:08 AM
18 0520_18 0519 _30062016_030847.mp4
- Date
- 06/30/2016
- W/O
- 579947
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00705
- PipeID
- P14374
- Time
- 3:08 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3550
- Sewer Name
- 18 SOUTH PLANT OUTFALL TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_579947_TV18055_JULY2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 18 0519
- Downstream MH
- 18 0520
- Dir. of Survey
- Upstream
- Length Surveyed
- 352.2 ft.
- Total Length
- 352.2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2[00
- O&M Rating
- 280
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 283
Observation photos (4)
2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start
2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
45.9 ft. - Crack Multiple, from 11 to 02 o'clock, within 8 inches of joint: YES

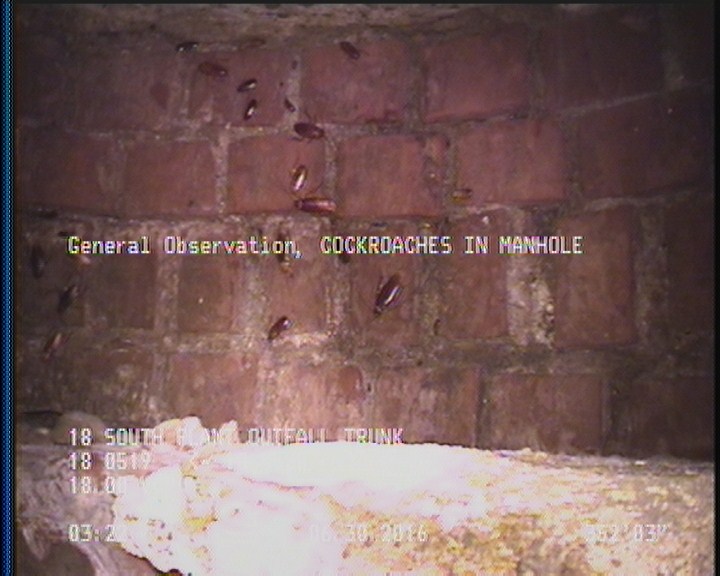

352.2 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 352.2 | AMH | 18 0520 |
| 45.9 | CM | — |
| 0 | MWL | — |
| 0 | AMH | 18 0519 |
| 0.1 | MWM | — |
| 350.7 | DAGS | — |
| 350.7 | DAE | — |
| 352.2 | MGO | COCKROACHES IN MANHOLE |
| 2 | DAE | — |
| 2 | DAGS | — |
| 106.5 | TFC | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
Properties (5)
- additional_info
- SC305779
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-06-30T03:08:13-07:00
- sewer_category
- Gravity
