Wastewater/Activity/PacpInspection/1.0Jul 6, 2016, 07:20 AM
18 0504_18 0503 _06072016_002252.mp4
- Date
- 07/06/2016
- W/O
- 579947
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00705
- PipeID
- P14358
- Time
- 12:20 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3553
- Sewer Name
- 18 SOUTH PLANT OUTFALL TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_579947_TV18055_JULY2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 18 0504
- Downstream MH
- 18 0503
- Dir. of Survey
- Downstream
- Length Surveyed
- 346.8 ft.
- Total Length
- 346.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 138
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 138
Observation photos (2)

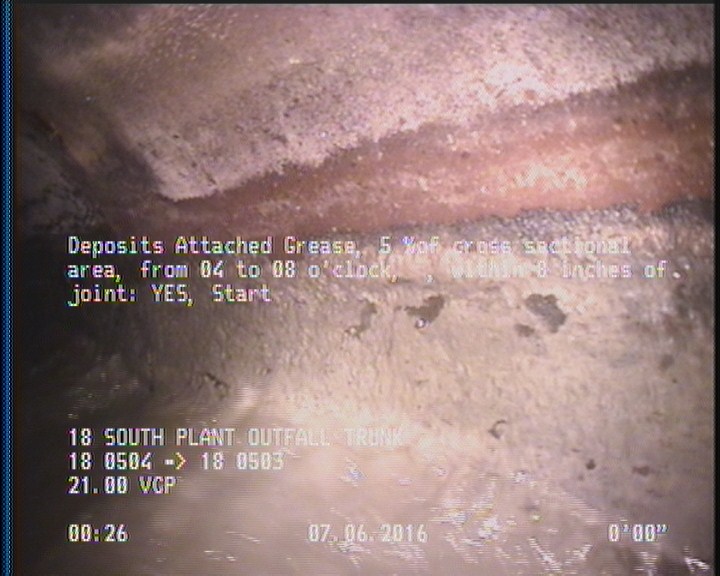

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
345.9 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 180.6 | TBA | — |
| 25.4 | TBA | — |
| 345.9 | DAGS | — |
| 0 | AMH | 18 0504 |
| 0 | MWL | — |
| 346.8 | AMH | 18 0503 |
| 106 | TBA | — |
| 2 | DAGS | — |
| 345.9 | MGO | COCKROACHES IN MANHOLE |
Properties (5)
- additional_info
- SC305782
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-07-06T00:20:39-07:00
- sewer_category
- Gravity
