Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 1, 2016, 05:41 AM

  • 18 0514_18 0513 _30062016_224225.mp4

Date
06/30/2016
W/O
579947
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00705
PipeID
P14368
Time
10:41 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3551
Sewer Name
18 SOUTH PLANT OUTFALL TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
10
Purpose
Routine Assessment
Project
WO_579947_TV18055_JULY2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
18 0514
Downstream MH
18 0513
Dir. of Survey
Downstream
Length Surveyed
153.3 ft.
Total Length
153.3 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2700
O&M Rating
14
Overall Index
2
Overall Quick
—
Overall Rating
17
Pipe schematic from manhole 18 0514 to 18 0513
MH: 18 0514MH: 18 0513downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 0514116.8 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start145.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES151.3 ft. MGO - General Observation - COCKROACHES IN MANHOLE153.3 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK153.3 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish153.3 ft. AMH - Downstream Manhole, Survey Ends - 18 0513

Observation photos (4)

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

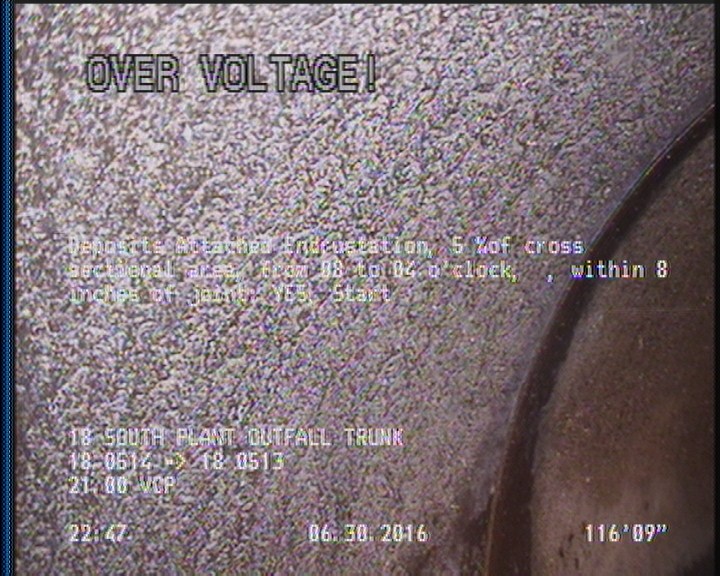

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    116.8 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

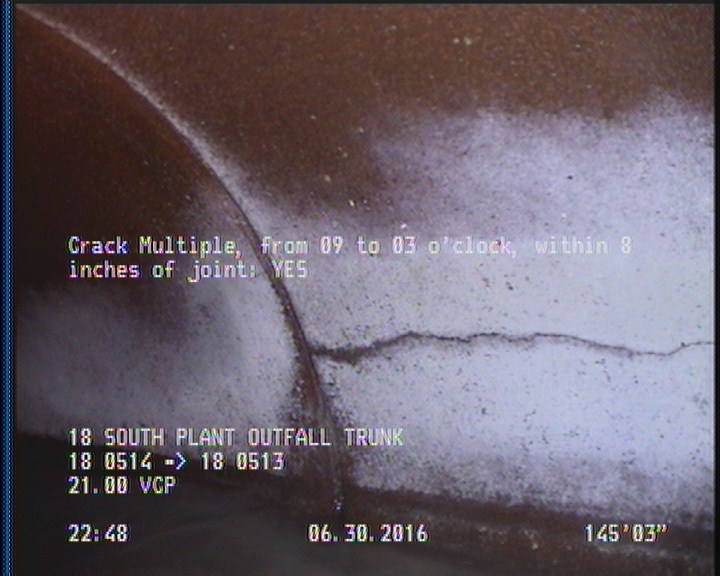

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    145.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

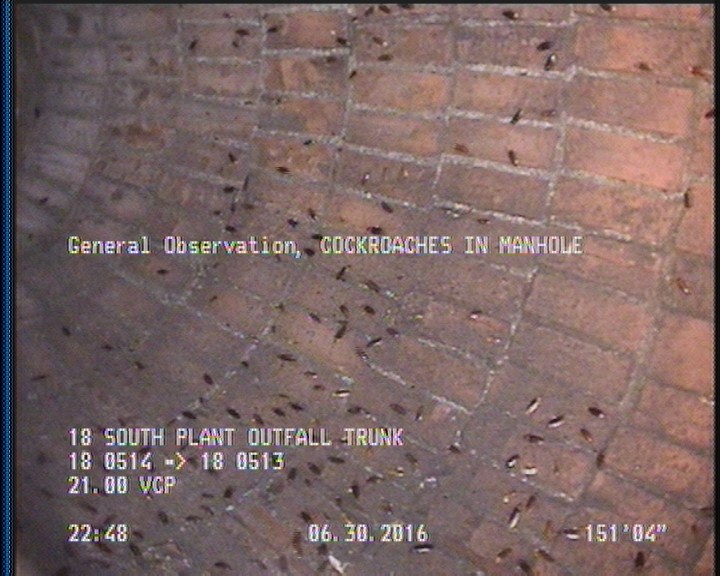

  • General Observation - COCKROACHES IN MANHOLE

    151.3 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P14368Work order 579947

Observations (10)

DistanceCodeObservation
0MGOCOCKROACHES IN MANHOLE
145.3CM—
151.3MGOCOCKROACHES IN MANHOLE
116.8DAE—
0MWL—
153.3MGOACTIVE CONNECTION AT MH 9 O'CLOCK
153.3DAE—
153.3AMH18 0513
0MWM—
0AMH18 0514

Properties (5)

additional_info
SC305780
custom_field_two
4
customer
LACSD
datetime
2016-06-30T22:41:08-07:00
sewer_category
Gravity
