Wastewater/Activity/PacpInspection/1.0Jun 21, 2016, 09:51 PM
18 0535_18 0534 _06072016_235340.mp4
- Date
- 06/21/2016
- W/O
- 579947
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00705
- PipeID
- P14386
- Time
- 2:51 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3550
- Sewer Name
- 18 SOUTH PLANT OUTFALL TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_579947_TV18055_JULY2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 18 0535
- Downstream MH
- 18 0534
- Dir. of Survey
- Downstream
- Length Surveyed
- 157.6 ft.
- Total Length
- 157.6 ft.
- Structural Index
- 5
- Structural Quick
- 5100
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 124
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 129
Observation photos (3)

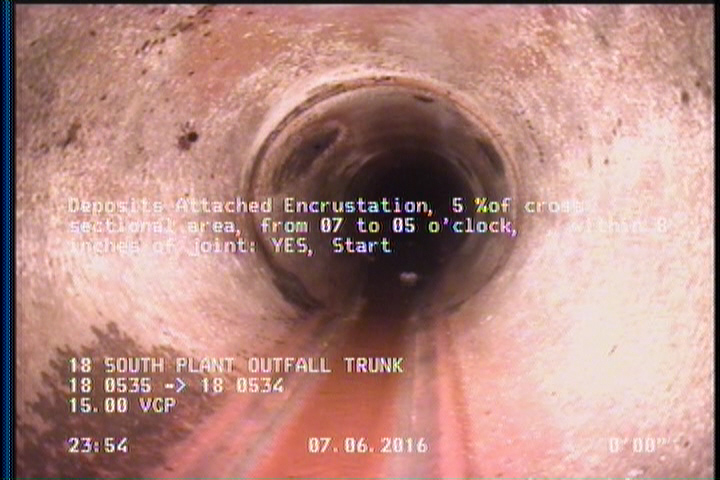

0 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

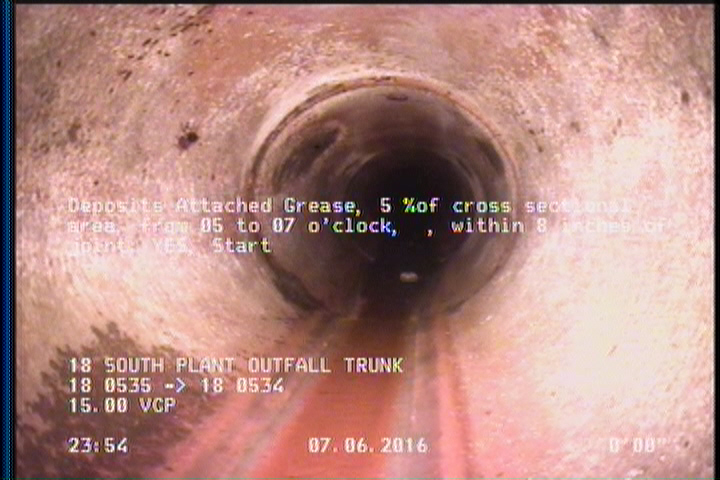

0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

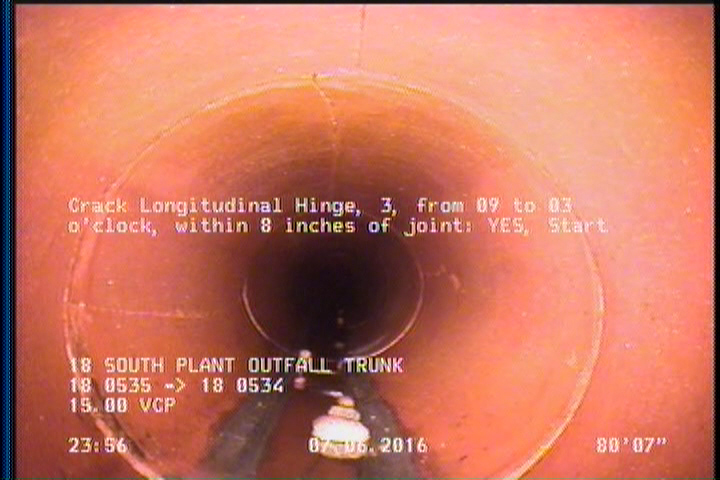

80.1 ft. - Crack Longitudinal Hinge, 3, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 156 | DAGS | — |
| 0 | AMH | 18 0535 |
| 80.1 | CH3 | — |
| 156 | DAE | — |
| 87.1 | CH3 | — |
| 157.1 | MGO | COCKROACHES IN MANHOLE |
| 157.1 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | MWL | — |
| 0 | DAE | — |
| 157.6 | AMH | 18 0534 |
| 0 | DAGS | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC305779
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-06-21T14:51:52-07:00
- sewer_category
- Gravity
