Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 1, 2016, 10:33 AM

  • 18 0510_18 0509 _01072016_033504.mp4

Date
07/01/2016
W/O
579947
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00705
PipeID
P14364
Time
3:33 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3551
Sewer Name
18 SOUTH PLANT OUTFALL TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
10
Purpose
V
Project
WO_579947_TV18055_JULY2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
18 0509
Downstream MH
18 0510
Dir. of Survey
Upstream
Length Surveyed
434.4 ft.
Total Length
434.4 ft.
Structural Index
2
Structural Quick
2B00
Structural Rating
26
O&M Index
2
O&M Quick
312P
O&M Rating
175
Overall Index
2
Overall Quick
—
Overall Rating
201
Pipe schematic from manhole 18 0509 to 18 0510
MH: 18 0509MH: 18 0510upstream0 ft. MSA - Survey Abandoned - REVERSAL COMPLETE.0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish0 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES87.2 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish153.1 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start432.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start434.4 ft. MGO - General Observation - COCKROACHES IN MANHOLE434.4 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK434.4 ft. AMH - Downstream Manhole, Survey Begins - 18 0509434.4 ft. MWL - Water Level, 15 %of cross sectional area434.4 ft. MWM - Water Mark, 25 %of cross sectional area

Observation photos (3)

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

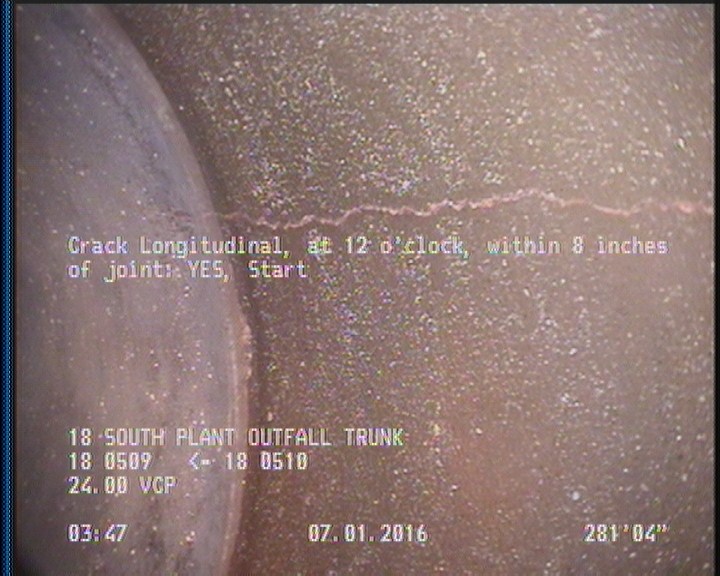

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    281.3 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

All inspections of P14364Work order 579947

Observations (11)

DistanceCodeObservation
281.3CL—
0MGOCOCKROACHES IN MANHOLE
434.4MSAREVERSAL COMPLETE.
347.2CL—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
0AMH18 0509
434.4DAGS—
434.4DSZ—
0MWL—
2DAGS—
0MWM—

Properties (5)

additional_info
SC305780
custom_field_two
4
customer
LACSD
datetime
2016-07-01T03:33:16-07:00
sewer_category
Gravity
