Wastewater/Activity/PacpInspection/1.0Jul 5, 2016, 11:09 AM
18 0505_18 0504 _05072016_041001.mp4
- Date
- 07/05/2016
- W/O
- 579947
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00705
- PipeID
- P14359
- Time
- 4:09 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3552
- Sewer Name
- 18 SOUTH PLANT OUTFALL TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_579947_TV18055_JULY2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 18 0505
- Downstream MH
- 18 0504
- Dir. of Survey
- Downstream
- Length Surveyed
- 186.4 ft.
- Total Length
- 186.4 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 2F00
- O&M Rating
- 74
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 80
Observation photos (3)

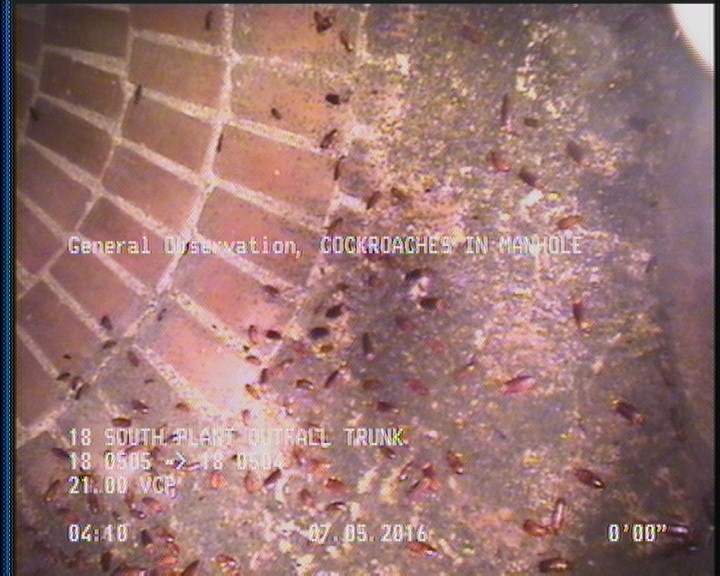

0 ft. - General Observation - COCKROACHES IN MANHOLE

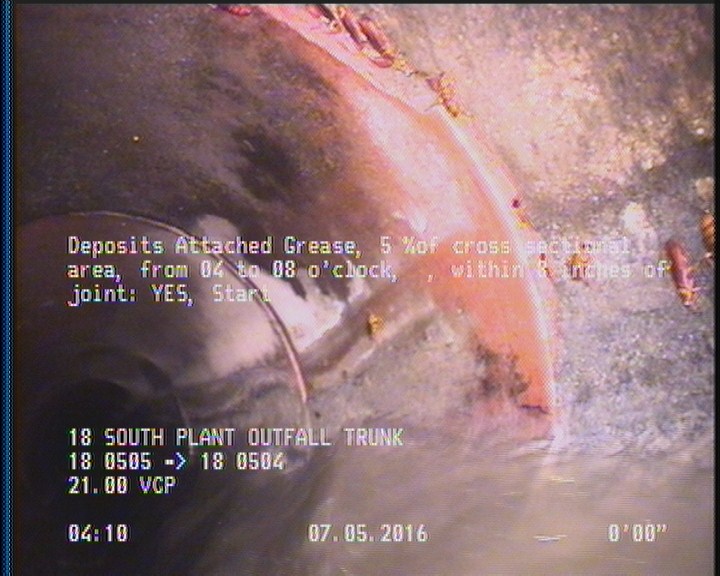

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

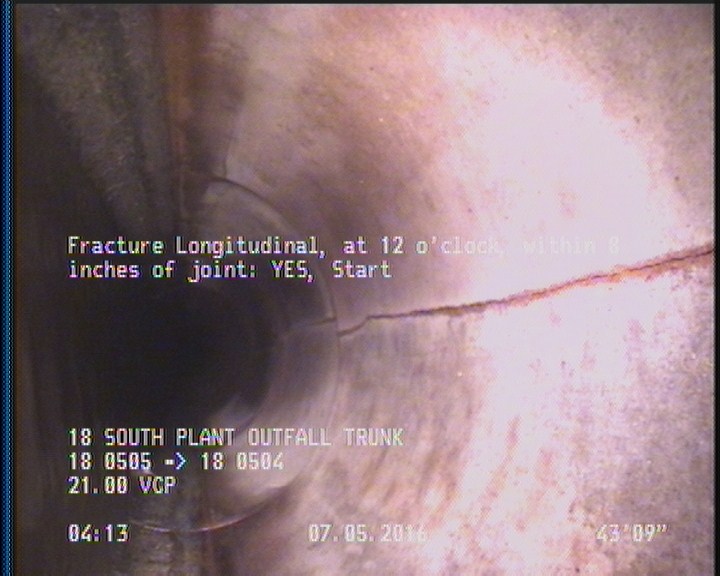

43.8 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 43.8 | FL | — |
| 186.4 | AMH | 18 0504 |
| 0 | AMH | 18 0505 |
| 99.2 | TBA | — |
| 185.7 | DAGS | — |
| 0 | MWM | — |
| 2 | DAGS | — |
| 144.5 | TBA | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 56 | FL | — |
Properties (5)
- additional_info
- SC305781
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-07-05T04:09:23-07:00
- sewer_category
- Gravity
