Wastewater/Activity/PacpInspection/1.0Jun 21, 2016, 09:51 PM
18 0536_18 0535 _06072016_232623.mp4
- Date
- 06/21/2016
- W/O
- 579947
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00705
- PipeID
- P14387
- Time
- 2:51 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3550
- Sewer Name
- 18 SOUTH PLANT OUTFALL TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_579947_TV18055_JULY2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 18 0536
- Downstream MH
- 18 0535
- Dir. of Survey
- Downstream
- Length Surveyed
- 363.4 ft.
- Total Length
- 363.4 ft.
- Structural Index
- 4
- Structural Quick
- 4100
- Structural Rating
- 4
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 144
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 148
Observation photos (3)

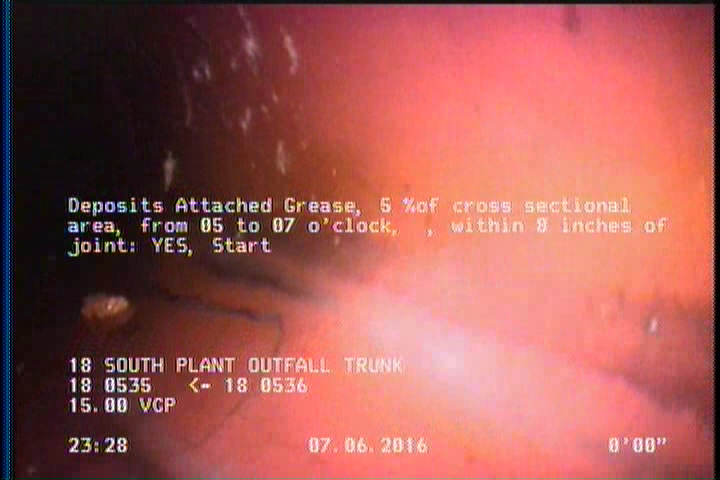

0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

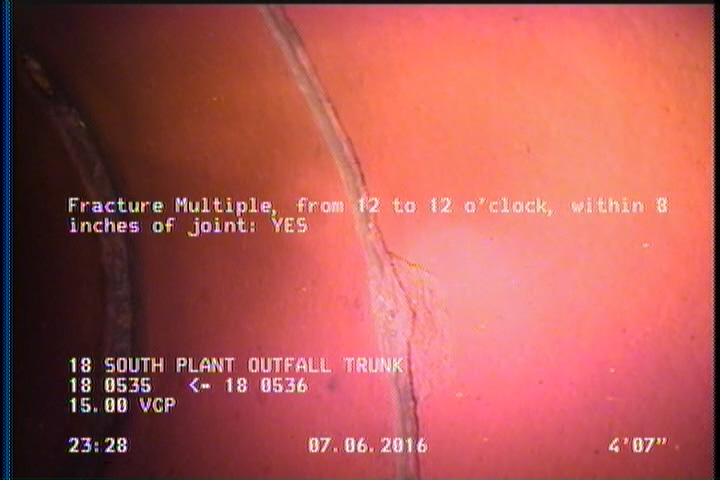

4.1 ft. - Fracture Multiple, from 12 to 11 o'clock, within 8 inches of joint: YES

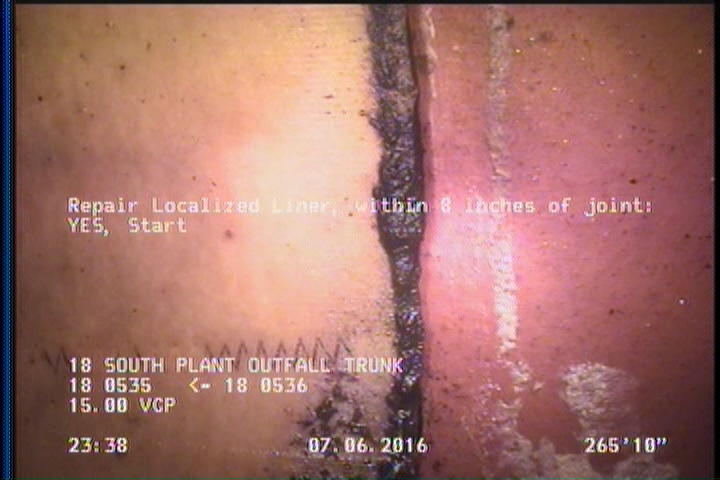

265.1 ft. - Repair Localized Liner, within 8 inches of joint: YES, Start - remark
Observations (20)
| Distance | Code | Observation |
|---|---|---|
| 363.1 | MGO | COCKROACHES IN MANHOLE |
| 363.1 | MGO | CONNECTION AT MH 12 O'CLOCK |
| 362 | DAGS | — |
| 295 | RPL | remark |
| 311.1 | TBA | — |
| 81 | TBA | — |
| 0 | MWM | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 4.1 | FM | — |
| 85.1 | TFC | — |
| 363.4 | AMH | 18 0536 |
| 265.1 | RPL | remark |
| 89.1 | TBA | — |
| 0 | AMH | 18 0535 |
| 0 | DAGS | — |
| 0 | MWL | — |
| 4.1 | TBA | — |
| 146 | TBA | — |
| 247.1 | TBA | — |
| 255.1 | TBA | — |
Properties (5)
- additional_info
- SC305779
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-06-21T14:51:52-07:00
- sewer_category
- Gravity
